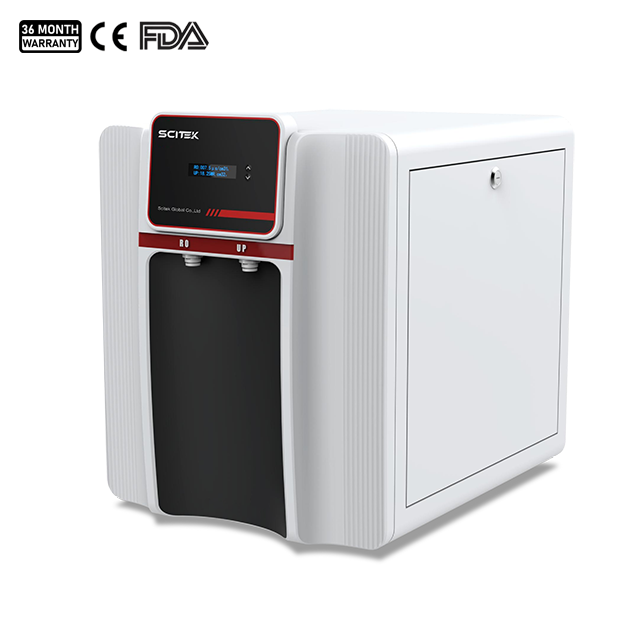

Ultrapure Water Machine Feature:
It has the functions of power indication, pump work indication, low pressure indication and system flushing indication.
Imported ion filter membrane and high-pressure, silent pure water pump are adopted, the operation quality is more reliable, and the water quality is more extensive.
It has the function of system flushing: before turning on the water every time, the system will automatically rinse for 30 seconds before the system starts to produce water.
It has the function of system protection: when the water pressure is too low or there is no water, the equipment will automatically stop and beep to remind the user, and the equipment will automatically start when the water source comes from the water.
The whole machine is made of ABS injection molding, which is corrosion-resistant. Modular design, easy maintenance.
The design of the whole machine is compact, and the 3.2G (12L) pressure pipe is built-in, which is easy to use and saves the space of the laboratory.
WP-UB10BS ultrapure water machine has the function of dual-channel online water quality monitoring, which can monitor the conductivity value and water temperature of RO water quality, the resistivity value of ultrapure water and the water temperature of ultrapure water in real time.
Ultrapure Water Machine Specifications:
| Model | WP-UB10BS |
|---|
| Water Output(L/H) | 10-15L/H |
| Feed water requirements |
| Water quality | City tap water |
| TDS | <1000ppm |
| Water pressure | >0.1Mpa |
| Water temperature | 5-45℃ |
| RO Water quality |
| Conductivity | <0.2μs/cm |
| UP water quality |
| Resistivity | 18.25MΩ.cm@25℃ |
| Heavy metal ion | < 0.01 ppb |
| Total Organic Carbon (TOC) | <30 ppb |
| Bacteria | <0.1 cfu/ml |
| Particle (0.2μm) | <1/ml |
| Endotoxin | <0.001EU/ml |
| Ion content |
| Sodium ion (Na⁺) | < 0.1 ppb |
| Potassium ion (K⁺) | < 0.1 ppb |
| Calcium ion (Ca²⁺) | < 0.1 ppb |
| Magnesium ion (Mg²⁺) | < 0.1 ppb |
| Iron ion (Fe³⁺) | < 0.01 ppb |
| Chloride ion (Cl-) | < 0.1 ppb |
| Nitrate ion (NO₃⁻) | < 0.1 ppb |
| Sulfate ion (SO₄²⁻) | < 0.1 ppb |
| Phosphate ion (PO₄³⁻) | < 0.01 ppb |
| Carbonate ion (CO₃²⁻) | < 0.1 ppb |
| Bromide ion (Br-) | < 0.1 ppb |
| Water Outlets | RO Pure Water, UP Ultra-pure Water (two) |
| Pure Water Machine Process | Reverse Osmosis |
| Storage vessel | Internal 3.2 gallon(12L) pressure tank |
| Power supply | 35W |
| Power supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional) |
| Shipping Size | Main: 460x570x665mm
Accessories: 420x400x570mm |
| Gross Weight | Main: 28kg
Accessories: 12kg |
Pure Water Reverse Osmosis Water Indicators:
Ion rejection rate: 96% - 99% (1. When using a new RO membrane; 2. The rejection rate ≥ 99% for double-stage reverse osmosis RO effluent with 5μs/cm).
Organic matter rejection rate > 99% when MW > 200 Dalton.
Particle and bacteria rejection rate > 99%.
Technological advantages of water purifiers:
Control System:
The operation mode displays power, water shortage, flushing, full water, RO water quality monitoring, deionized water quality detection, etc.
Safety Performance:
It automatically enters the standby state when there is no water or the water pressure is low, and enters the standby state when the system is full of water (constant pressure).
Purification System:
Pretreatment unit: External softening filter (optional for areas with high raw water hardness); 1μm deep PP filter element * 2 + precision activated carbon filter element.
RO reverse osmosis unit:
US original RO reverse osmosis membrane/membrane module.
Post-treatment purification unit:
Purification columns (two groups).
Standard Configuration:
Host + Accessory Kit
Notes:
The quality of the inlet water affects the quality of the outlet water and the service life of the filter columns.
When the quality of the source water is poor (TDS greater than 1000ppm), the quality of RO pure water will drop to above 10μs/cm².
When the TDS of the raw water is > 500, it is recommended to select a water softener.
