| Model | WP-U10LSSE | WP-U10TOSE | WP-U10MBSE | WP-U10BSE |
| WP-U20LSSE | WP-U20TOSE | WP-U20MBSE | WP-U20BSE |
| WP-U30LSSE | WP-U30TOSE | WP-U30MBSE | WP-U30BSE |
| WP-U40LSSE | WP-U40TOSE | WP-U40MBSE | WP-U40BSE |
| WP-U50LSSE | WP-U50TOSE | WP-U50MBSE | WP-U50BSE |
| WP-U60LSSE | WP-U60TOSE | WP-U60MBSE | WP-U60BSE |
| WP-U80LSSE | WP-U80TOSE | WP-U80MBSE | WP-U80BSE |
| Water Output (L/H) | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 | 10/20/30/40/50/60/80 |
| Feed Water Requirements | Tap Water: Conductivity<400μs, 5-40℃, 1.0-5.0Kgf/cm² |
| RO Water Quality |
| Conductivity | <0.055μs/cm |
| UP Water Quality |
| Resistivity | 18.25 MΩ·cm@℃ |
| TOC | <3ppb | <5ppb | <10ppb | <20ppb |
| Microorganism | <1cfu/ml |
| Particle (>0.22μm) |
| Endotoxin | <0.001EU/ml | <0.002EU/ml | <0.005EU/ml | / |
| RNA Enzyme | <0.01ng/ml | / | / | / |
| DNA Enzyme | <0.04pg/ml | / | / | / |
| Terminal Filter | 0.22μm terminal flter | Optional |

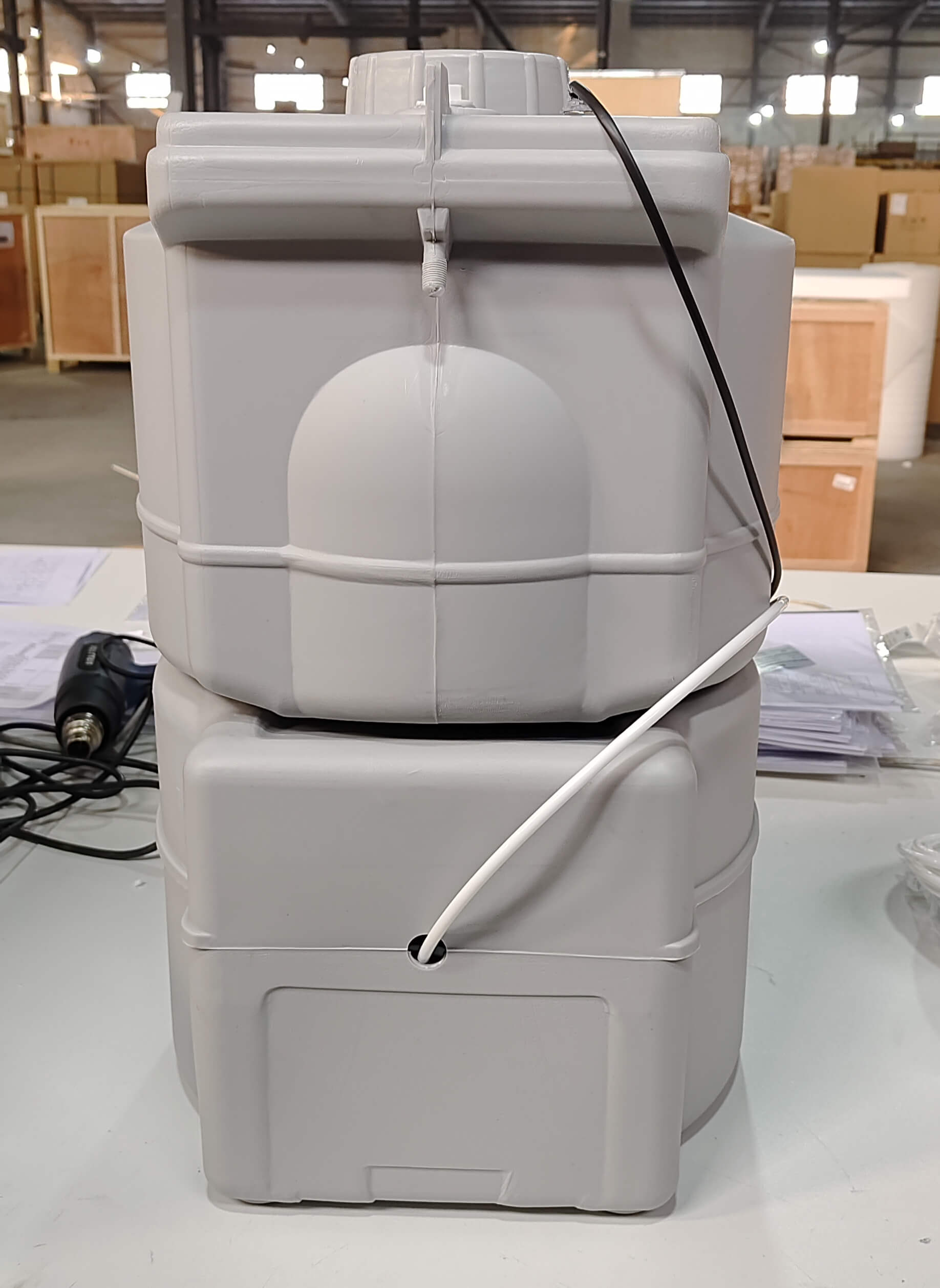

| Storage Vessel | 30L sterile tank with Dual wavelength UV lamp, 185nm/254nm | 3.2 gallon pressure tank |
| Ion Content | Na+: ＜0.1ppb, K+:＜0.1ppb, Ca2+: ＜0.1ppb, Mg2+: ＜0.1ppb, Fe3+: ＜0.01ppb, Cl-: ＜0.1ppb, NO3-: ＜0.1ppb, SO₄²⁻: ＜0.1ppb, PO₄³⁻: ＜0.1ppb, CO₃²⁻: ＜0.1ppb, Br⁻: ＜0.1ppb |
| UV Lamp | Dual wavelength UV lamp, 185nm/254nm | / |
| Standard Configuration | Ultra low organic purification column | / |
| Equipped with high throughput ultrafiltration membrane | / |
| Consumption | 80~120W |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional) |
| Shipping Size (mm) | Main: 595x540x650
Accessories: 400x400x950 | Main: 595x540x650
Accessories: 420x400x570
|
Gross Weight (kg)
| Main: 28
Accessories: 20 | Main: 28
Accessories: 12
|
