Model | WP-PGM10U | WP-EGM10U | WP-TGM10U | WP-SGM10U |
---|---|---|---|---|
WP-PGM20U | WP-EGM20U | WP-TGM20U | WP-SGM20U | |
WP-PGM30U | WP-EGM30U | WP-TGM30U | WP-SGM30U | |
Model Features | Basic | Added UF heat removal column | Added UV germicidal lamp | Added UV sterilizer lamp and heat source removal column |
Water Output (L/H) | 10/20/30 | 10/20/30 | 10/20/30 | 10/20/30 |
Water Quality Monitoring | Dual waterway online monitoring (can display RO conductivity value and UP resistivity value at the same time). | |||
Ion Rejection Rate | 97%-99% (when using a new RO membrane) | |||
Organic Matter Rejection Rate | >99% (when MW>200 Dalton) | |||
Particle and Bacterial Rejection | > 99% | |||
Application | Clean glassware | |||
UP Water Parameter(ASTM TYPE I grade water) | ||||
Resistivity (25℃) | 18.25 M Ω. Cm @ 25 ℃ | |||
Heavy Metal Ion | < 0.01 ppb | |||
Total Organic Carbon (TOC) | <10 ppb | <3 ppb | ||
Bacteria | < 1 cfu/ml (Use pressure water tank) | |||
< 0.01 cfu/ml (Use Sterile water tank) | ||||
Particulate Matter (> 0.22 μm) | <1/ml | |||
Pyrogen (endotoxin) | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
RNases | N/A | <1pg/ml | N/A | <1pg/ml |
DNases | N/A | <5pg/ml | N/A | <5pg/ml |
Electrical Requirements | 100V-240/50-60Hz, 48-72W | |||
Standard Accessories | 1. Main Machine (including 1 set of purification column) | |||
2. 12L external pressure water tank | ||||
3. TDS pen | ||||
4. Accessory bag | ||||
Optional Accessories | 1. Sterile water tank | |||
2. Water collection arm | ||||
3. Silicon removal device | ||||
4. Boron removal device | ||||
Instrument Size (W×D×H)(mm) | 312x475x475 | |||
Shipping Size (W×D×H)(mm) | 620x640x680 | |||
N.W./G.W. (kg) | 30/40 |

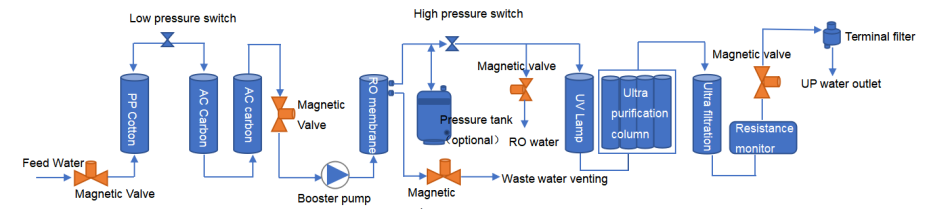

Complete RO&UP water preparation, circulation system, and sterilization management functions.
Equipped with a portable TDS pen, you can test TDS content, conductivity, and water temperature anytime and anywhere.
Automatic program for RO membrane anti-scaling flushing, automatic shutdown of tap water, automatic water cut-off, automatic water supply of water storage barrel, and automatic shutdown of water storage tank.
The life of PP cotton, activated carbon filter element, RO membrane, and ultrapurification column can be set, and the use time and remaining time of consumables can be displayed. Automatic reminder to replace the filter element to avoid water quality degradation.
Low voltage 24VDC is used as the main power supply, which complies with safety regulations and meets the requirements of humid environments without causing personal injury.
Front and rear door design, filter element replacement is quick and convenient, and filter element replacement can be easily completed without the help of any tools.
ABS engineering plastic shell, powder spraying process, with water quality and water volume upgrade function, self-priming door.
Backlit LCD display, can be equipped with USB interface
Dual waterway online monitoring (can display RO conductivity value and UP resistivity value at the same time).
Online management of consumables
WP-P: All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment
WP-E: High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute
WP-T: Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis
WP-S: Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

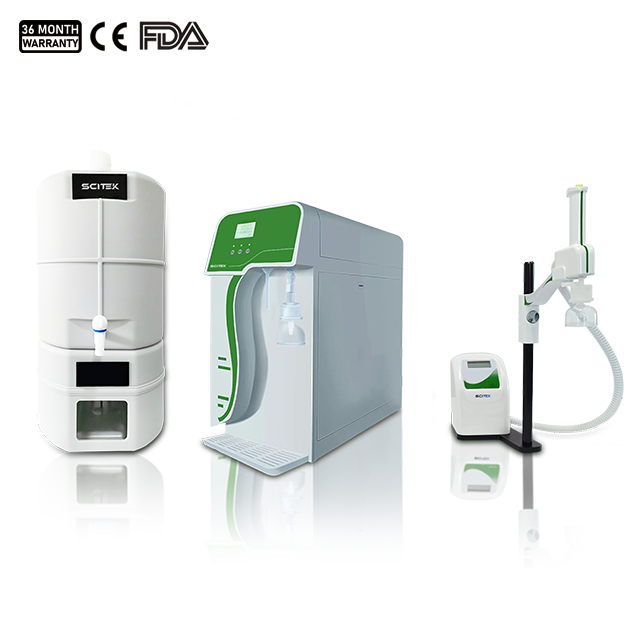

Main Machine
Optional Sterile water tank
Optional Water collection arm
