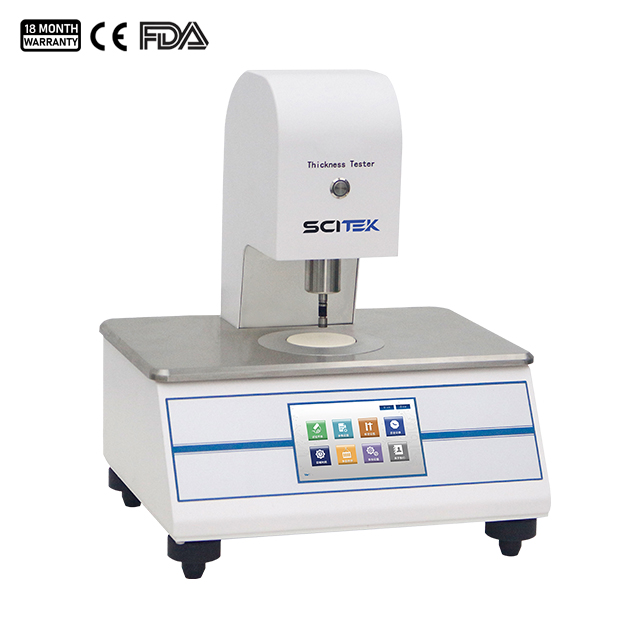

The thickness tester is a high-precision thickness tester using the mechanical contact method, suitable for measuring the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, solid insulation materials, and more.
Thickness Tester Features:
5-inch color touchscreen with graphical user interface (GUI).
High precision sensors ensure high accuracy and repeatability of the thickness measurement system.
The measuring head can be lifted and lowered automatically.
Customization is available for multiple contact areas and pressures to meet various test conditions.
A standard gauge block is available for fast calibration.
Users can select manual or automatic test modes.
Test results include maximum value, minimum value, average value, and standard deviation, which can be displayed directly.
The instrument is embedded with SAICHENG's latest operating software, featuring a user-friendly interface, intelligent data processing, strict user management, and secure data storage.
Auto feeding function (optional); feeding space, feeding speed, and measurement points can be set as required to ensure the accuracy of multiple successive points measurement.
Equipped with micro-printer and standard USB interface.
Thickness Tester Specifications:
| Model | TT-T1 |
|---|
| Test Range | 0 ~ 2 mm (standard) |
| 0 ~ 6 mm (optional) |
| 0 ~ 12 mm (optional) |
| Resolution | 0.1 μm |
| Test Pressure & Contact Area | Film: 17.5±1 kPa, 50 mm² |
| Paper: 50±1 kPa, 200 mm² |
| Note: Choose either film or paper. Customizations are available for other test pressures and contact areas. |
| Feeding Space | 0 ~ 1000 mm (optional) |
| Feeding Speed | 0.1 ~ 99.9 mm/s |
| Gas Pressure | 0.4 ~ 0.6 MPa (out of supply scope) |
| Port Size | Φ6 mm PU tubing |
| Power Supply | AC220/110V, 50/60Hz |
| Standard Configurations | Micro Printer, Standard Gauge Block |
| Optional Accessories | Professional Software, Communication Cable, Measuring Head, Counterweights, Auto Feeding Device |
| External Sizes (WxDxH)(mm) | Film Type: 340x340x400 |
| Paper Type: 400x310x450 |
| Shipping Size(WxDxH)(mm) | Film Type: 600x480x650 |
| Paper Type: 450x700x620 |
| N.W./G.W. (kg) | 22/33 |
Note
The air connection of the instrument is Φ6 mm PU Tubing.
Customers need to prepare for air source.
