Temperature Control Range : 0~100°C Temperature Control Precision : ±0.3°C Oscillation Speed Range : 200~1500 rpm/min Oscillation Amplitude and Mode : 2mm (horizontal rotation) Size(W×D×H)(mm) : 300x220x170
Versatile, robust, thermostatic environment suitable for most mixing needs
The TMX-1500C employs advanced brushless DC motor and microcomputer control technology, seamlessly integrating constant temperature and oscillation functions. This automated tool is perfect for sample incubation, catalysis, mixing, and preservation. With added features like cooling and oscillation, the TMX-1500C caters to a variety of user needs.
Thermostatic Mixer Features:
Easy operation with an LCD screen and intelligent microprocessor control.
Sturdy and customizable with special anti-vibration technology.
Hassle-free usage featuring power failure recovery, precise timing, temperature calibration, quick oscillation adjustments, and various safety measures.
Choose from a range of standard sample modules to suit your specific needs.
Thermostatic Mixer Specifications:
Model
TMX-1500C
Temperature Conrol Range
0~100°C
Temperature Control Precision
±0.3°C
Temperature Stability
±0.3°C(at 40℃) ±0.3°C(at 100℃)
Temperature Display Accuracy
0.1℃
Oscillation Speed Range
200~1500 rpm/min
Oscillation Amplitude and Mode
2mm (Horizontal rotation)
Time Setting
0~99h59minutes
Cooling Time
≤25 minutes (Decrease from room temperature to below 20°C) (Tested at an ambient temperature of 30°C)
Cooling Speed
≥7°C/min (From 100°C to 20°C) ≥1.2°C/min (Decrease of 20°C starting from room temperature)
Power Supply
AC110~220V, 50/60Hz
Consumption
150W
Size(W×D×H)(mm)
300x220x170
Shipping Size(W×D×H)(mm)
355x355x270
N.W./G.W. (kg)
8.8/13
Optional Blocks
Model
Aperture and number of test tubes
Maximum Temperature
Maximum Speed
B1
96×0.2ml standard plate
100°C
2000 rpm/min
B2
54×0.5ml centrifuge tube
100°C
2000 rpm/min
B3
35×1.5ml centrifuge tube
100°C
2000 rpm/min
B4
35×2.0ml centrifuge tube
100°C
2000 rpm/min
B5
20×0.5ml+15×1.5ml centrifuge tube
100°C
2000 rpm/min
B6
24×φ12ml test tube
100°C
2000 rpm/min
B7
32×0.2ml+25×1.5m centrifuge tube
100°C
2000 rpm/min
B8
32×0.2ml+10×0.5ml+15×1.5ml centrifuge tube
100°C
2000 rpm/min
B9
103ml×67ml×30ml (Square groove block)
100°C
2000 rpm/min
B10
96-well ELISA plate (Flat-bottomed)
100°C
2000 rpm/min
B11
24×5m centrifuge tube
100°C
2000 rpm/min
B12
12×15ml centrifuge tube (High lid)
100°C
700 rpm/min
B13
6×50ml centrifuge tube (High lid)
100°C
700 rpm/min
B14
Customizable
100°C
HX-A1
96×0.2ml centrifuge tube rack
\
2000 rpm/min
HX-A2
24×0.5ml centrifuge tube rack
\
2000 rpm/min
HX-A3
24×1.5/2.0ml centrifuge tube rack
\
2000 rpm/min
Details of Thermostatic Mixer:

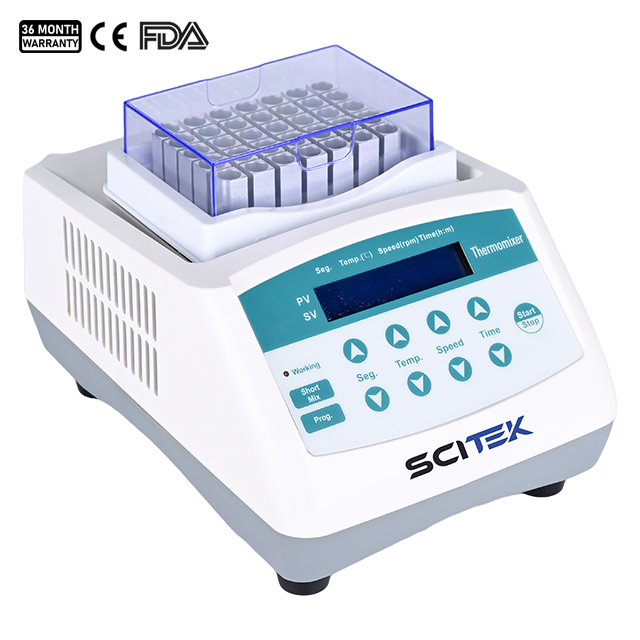

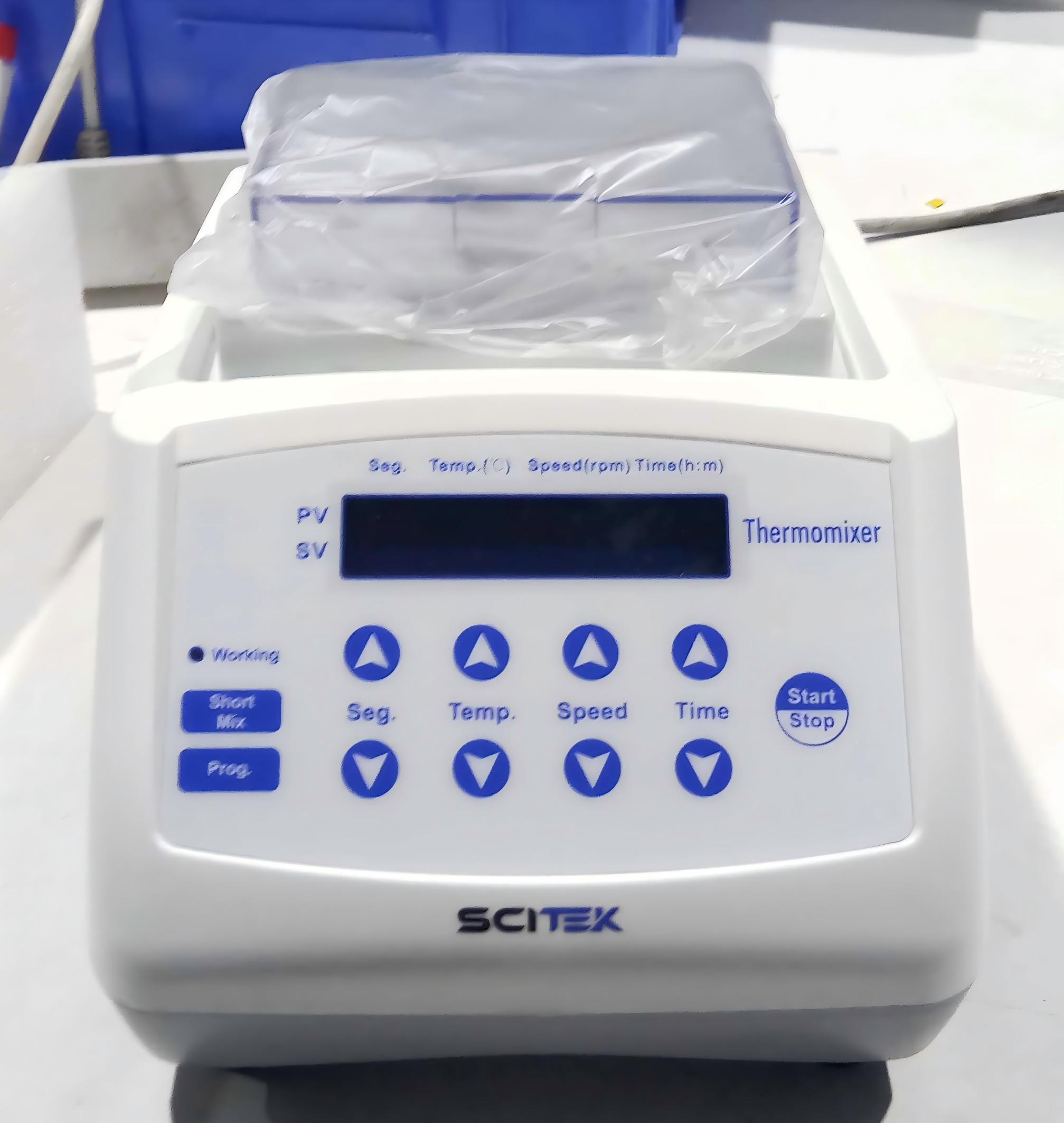

The device features a compact, minimalist design, with a white engineering plastic housing. The dark blue control buttons and display give it the classic look of laboratory equipment. Compact and well-proportioned, it is ideal for placement on a lab bench for routine sample temperature control and shaking/mixing operations.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
