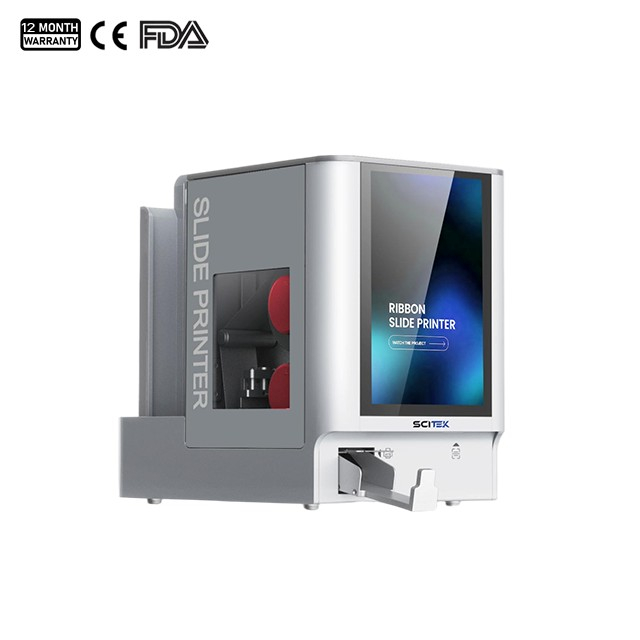

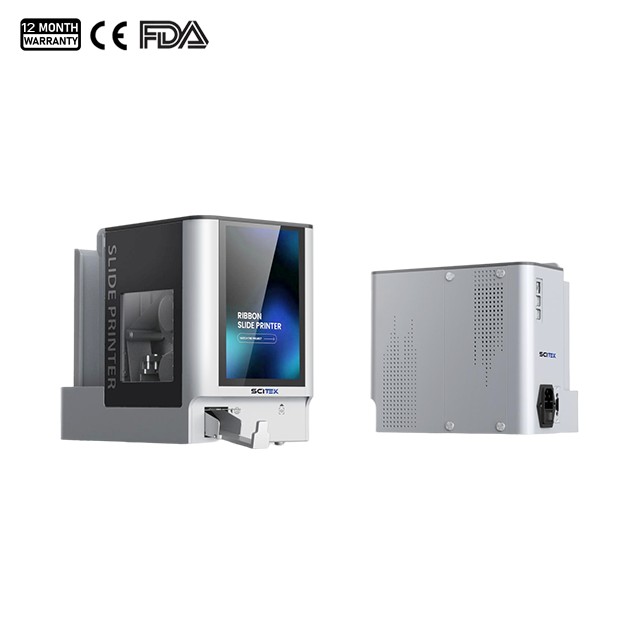

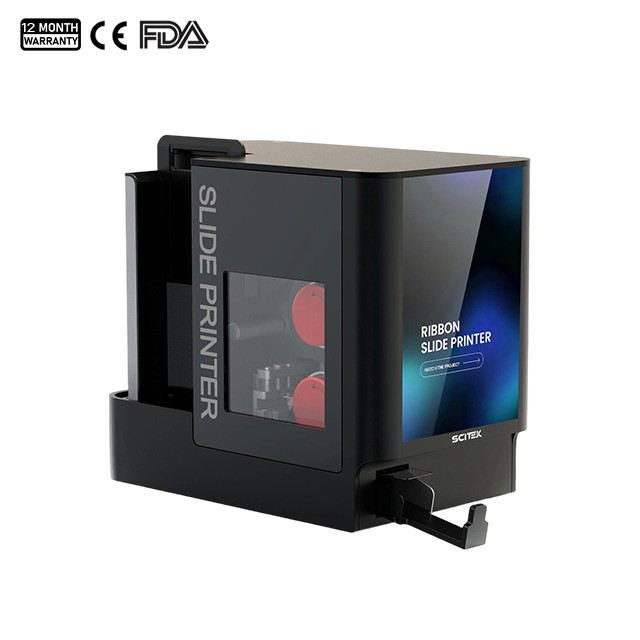

Thermal Transfer Slide Printer MMG-1S

Model: MMG-1S

Display: 7" inch touch screen
Printing Resolution: 300 dpi
Slide Loading Capacity: Up to 150 slides
Ribbon Capacity: Approx. 5,000 slides per ribbon
Availability:
Quantity:

Thermal Transfer Slide Printer Application:

The thermal transfer slide printer is an essential device in modern pathology labs for accurate slide identification and efficient sample management. Designed for information labeling of glass slides in histology, pathology, and medical testing. Widely used in hospital pathology departments, medical testing centers, research institutions, and third-party testing laboratories, providing a more standardized, intelligent, and traceable management solution for pathology samples.

Thermal Transfer Slide Printer Feature:

  1. 7-inch touchscreen, PC-free design, enabling intuitive and convenient device control.

  2. High-end metal casing and compact design, balancing aesthetics, durability, and space utilization.

  3. High-speed thermal transfer technology, printing a single slide in 6.5 seconds, improving the efficiency of pathology workflows.

  4. Supports automatic loading of 150 slides, reducing manual intervention and enabling continuous printing.

  5. Supports printing text, symbols, multiple languages, QR codes, barcodes, and custom graphics.

  6. Built-in scanning module for rapid data reading and accurate sample identification.

  7. Magnetic, detachable observation window design for easy cleaning, maintenance, and daily operation.

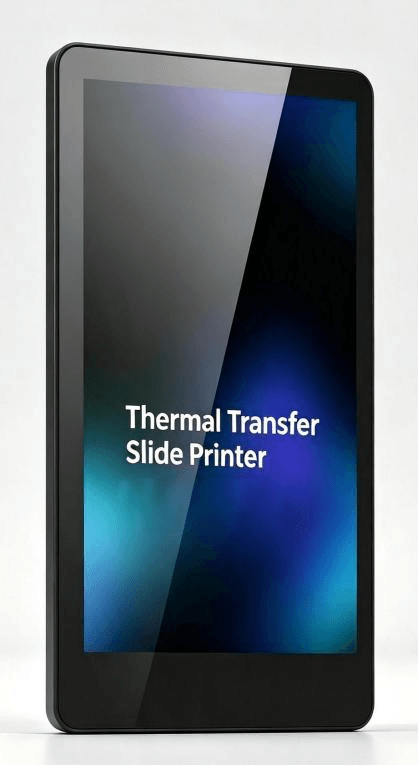

7" inch Touch Screen

7 inch Touch Screen.png

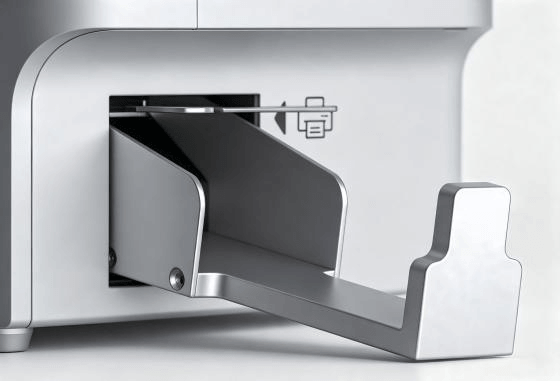

Cassette Collection Tray

Cassette Collection Tray-1.png

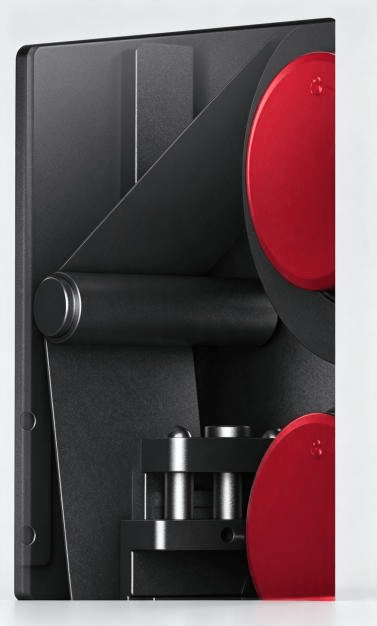

Built-in Observation Window

Built-in Observation Window.png

Thermal Transfer Slide Printer Specification:

Model

MMG-1S

Display

7" inch touch screen

Printing Technology

Thermal Transfer Printing Technology

Printing Speed

6.0–6.5 seconds/slide

Printing Resolution

300 dpi

Number of Slide Loading Position

1

Slide Loading Capacity

Up to 150 slides

Ribbon Capacity

Approx. 5,000 slides per ribbon

Operating System Compatibility

Windows 7 / Windows 10 / Windows 11

Power Supply

AC100–240V, 50/60 Hz

Consumption

50 W

N.W./G.W.

10/25 kg

External Size (W×D×H)

163×329×247 mm

Shipping Size (W×D×H)

370×470×400 mm
