Solvent Filtration Apparatus Specifications:
| Model | SFA-1L | SFA-2L | SFA-1LPT |
| Filter Funnel | 300ml | 500ml | 300ml |
| Filter Head Pore Size | 10μm | 10μm | 20μm |
| Sieve Plate Material | Pyrex glass | Pyrex glass | PTFE |
| Receiving Bottle (Triangle Fluid Bottle) | 1000ml | 2000ml | 1000ml |
| Applicable Filter Membrane | φ47 or φ50 | φ60 | φ47 or φ50 |
| Shipping Size(W×D×H)(mm) | 330x330x210 | 390x360x270 | 330x330x210 |
| G.W. (kg) | 3 | 4 | 3 |
Solvent filtration apparatus is a regular device of chemistry lab, it is indispensable equipment for HPLC analysis. This device can also be used in instrumental analysis, sanitary inspection, pharmaceutical industry, pesticide liquid filtration, petroleum, environmental monitoring fields. It can monitor and remove the particles and bacteria in the liquid.
Solvent Filtration Apparatus Feature:
This solvent filtration system is made of high-quality extra hard glass, no air bubble, sparking and crystal-clear thickness is even.
The performance of with standing voltage and its leakproofness is very good, it can be used for sterilization at high temperature of 121℃ and high pressure.
The PTFE type is acid and alkali resistant, Corros ion resistant, can filter all kinds of aqueoussolution, the organic solution and corrosive liquids.
The solvent filtration system flows faster, ground-glass is standard. It‘s size agrees with the international standard size to fit for many foreign brands.
Standard Accessory:
The solvent filtration system consists of a solvent filtration apparatus and a diaphragm vacuum pump. Among them, the solvent filtration apparatus includes:
The triangle fluid bottle
The core filter head
Filter Funnel
The clamp
Dust cover
Rubber hose
Hose linker
Details of Solvent Filtration Apparatus(SFA-1L):

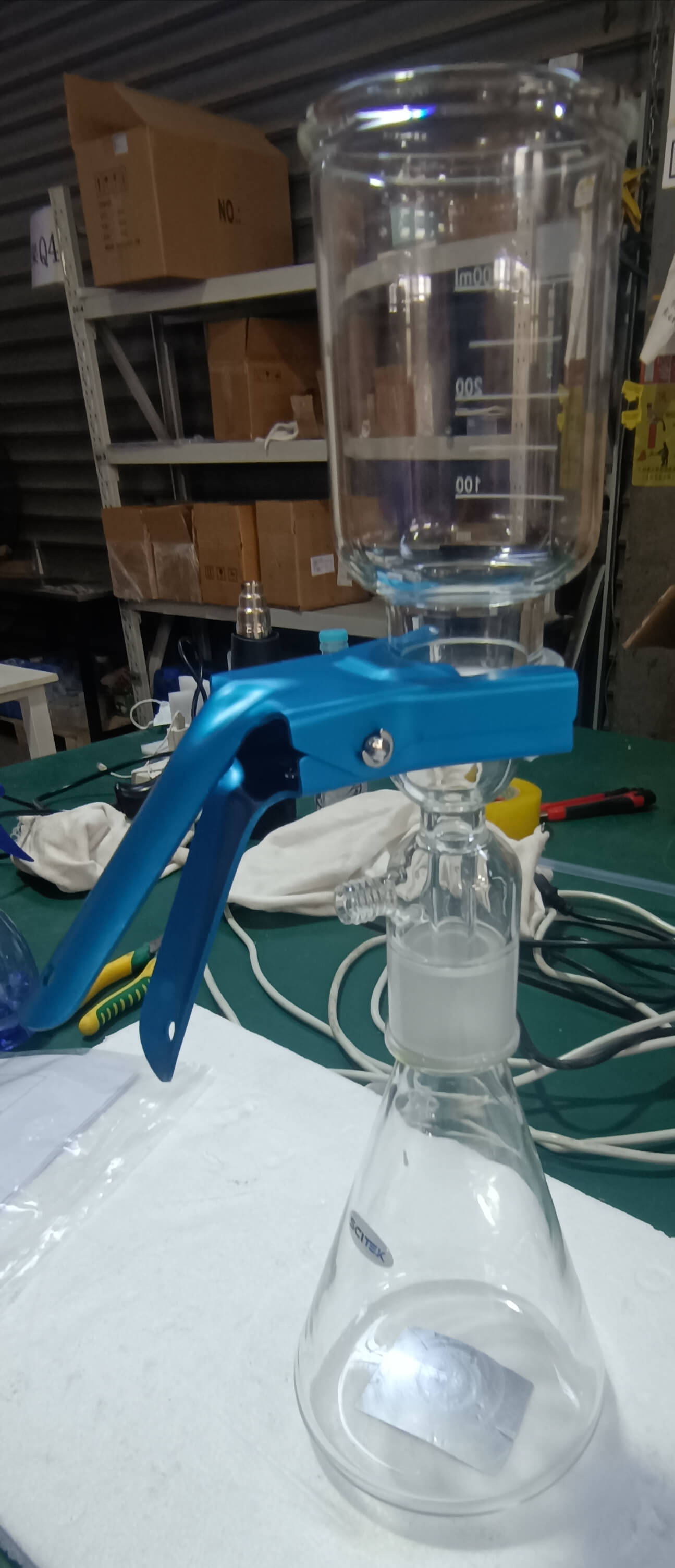

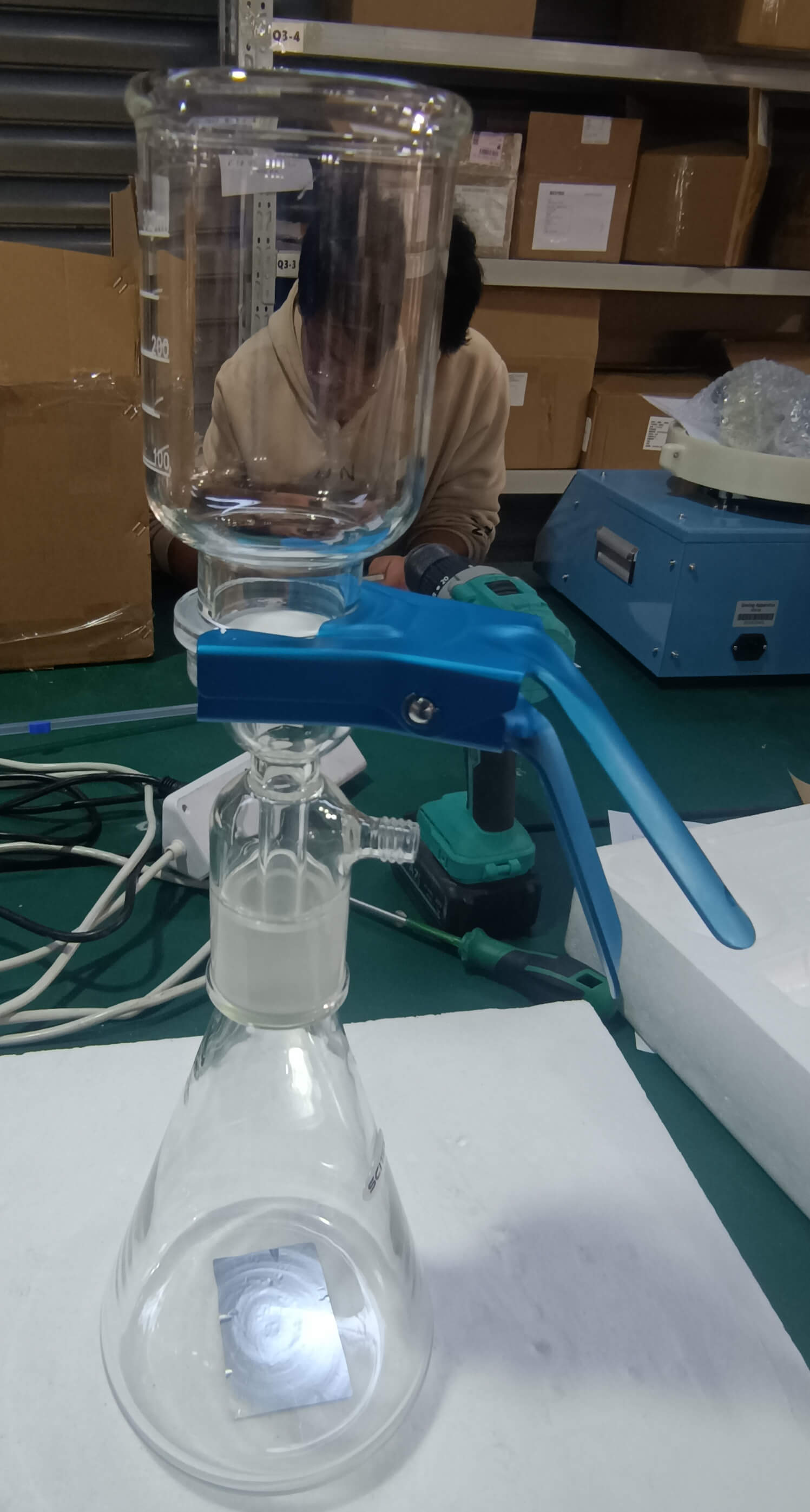

Fully assembled view of the solvent filtration apparatus. The setup includes a durable 1L glass funnel, stainless steel clamp, and vacuum filtration base. Designed for chemical resistance and stable performance in laboratory environments.
The primary filtration components, including the silicone tubing and vacuum gauge, are neatly packed and individually sealed. This prevents contamination and ensures all parts remain clean and ready for immediate use upon unpacking.

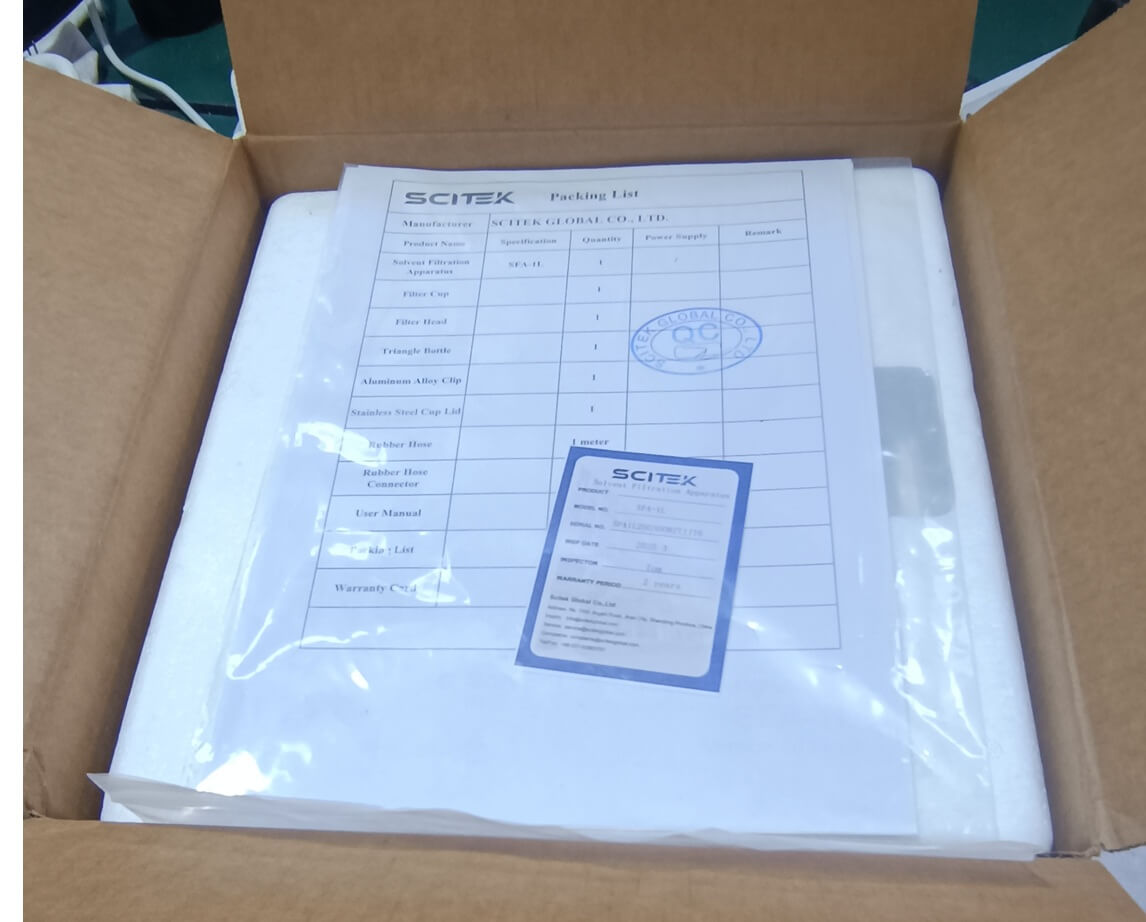

Instruction manual and quality inspection report are included in a waterproof plastic envelope. This provides users with clear assembly guidance and guarantees product compliance with quality standards before shipping.
The complete set is securely encased in custom foam packaging. Each component is housed in its own compartment, ensuring safe transport and protection from impact or vibration during shipping.
