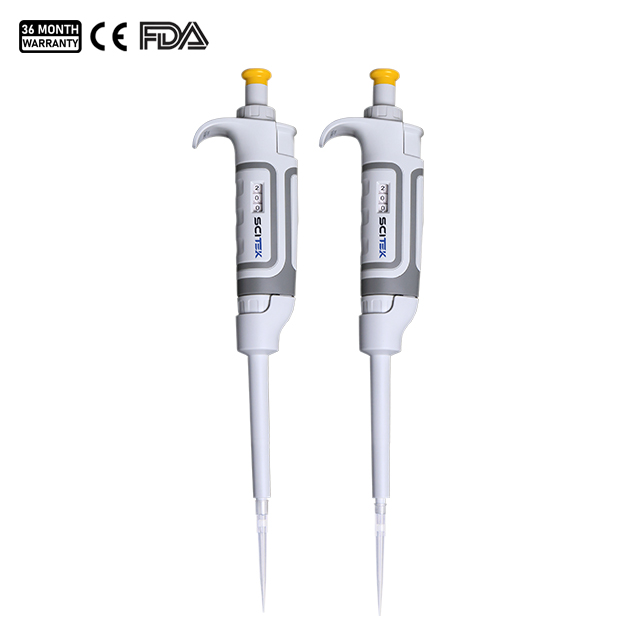

Adjustable Volume Single Channel Pipette Feature:
Manual calibration, pipetting error less than 0.5%
Super durable for 200,000 presses, accuracy is still good, silky smooth suction and discharge
Metal internal structure is precise, durable and wear-resistant, two-color injection molding
Perfect connection without looseness, 5 drop tests on the operating table
No loss of pipetting accuracy
Only 660g of force is required to load and unload the pipette tip, which reduces the operating force by 80% compared to the conical gun nozzle
Only 120g of pressure is required for one section, making the fingers easier and the experiment more labor-saving

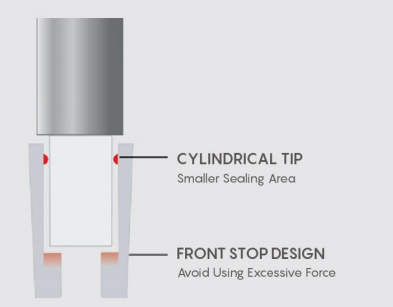

MP-SAM Series
Cylindrical Shaft/tip System
Low-force Required To Load And Eject Tips

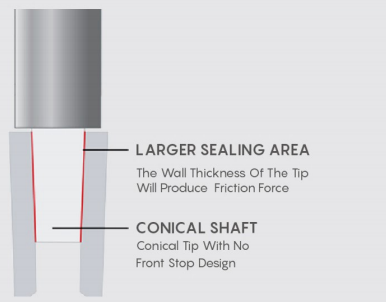

MP-SAG Series
Conical shaft/tip system
High-force required to load and eject tips
Pipette
MP-SAG Series Adjustable Volume Pipette Specifications:
| Model | Adapted Tips | Range μL | Step size pL |
| MP-SAG1 | Conical universal pipette tips 10μL, 10μL extended | 0.1-2 | 0.002 |
| MP-SAG2 | Conical universal pipette tips 10μL | 0.5-10 | 0.01 |
| MP-SAG3 | Conical universal pipette tips 10μL, 10μL extended | 2-20 | 0.02 |
| MP-SAG4 | Conical universal pipette tips 200μL, 300μL | 10-100 | 0.1 |
| MP-SAG5 | Conical universal pipette tips 200μL, 300μL | 20-200 | 0.2 |
| MP-SAG6 | Conical universal pipette tips 200μL, 300μL | 30-300 | 0.3 |
| MP-SAG7 | Conical universal pipette tips 1000μL, 1250μL | 100-1000 | 1 |
MP-SAM Series Adjustable Volume Pipette Specifications:
| Model | Adapted Tips | Range μL | Step size pL |
| MP-SAM1 | Column tip 20μL | 0.1-2 | 0.002 |
| MP-SAM2 | Column tip 20μL | 0.5-10 | 0.01 |
| MP-SAM3 | Column tip 20μL | 2-20 | 0.02 |
| MP-SAM4 | Column tip 20μL | 10-100 | 0.1 |
| MP-SAM5 | Column tip 200μL, 300μL | 20-200 | 0.2 |
| MP-SAM6 | Column tip 200μL, 300μL | 30-300 | 0.3 |
| MP-SAM7 | Column tip 200μL, 300μL | 100-1000 | 1 |
| PIPETTE VOLUME | VOL/μL | INCREMENT/μL | SYSTEMATIC ERROR | RANDOM ERROR |
| %μL | (±) | %μL | (±) |
| 2μL | 0.2 | 0.002 | 12 | 0.024 | 6 | 0.012 |
| 1 | 2.7 | 0.027 | 1.3 | 0.013 |
| 2 | 1.5 | 0.03 | 0.7 | 0.014 |
| 10μL | 1 | 0.01 | 2.5 | 0.025 | 12 | 0.012 |
| 5 | 1.5 | 0.075 | 0.6 | 0.03 |
| 10 | 1 | 0.1 | 0.4 | 0.04 |
| 20μL | 2 | 0.02 | 7.5 | 0.15 | 2 | 0.04 |
| 10 | 1.5 | 0.15 | 0.5 | 0.05 |
| 20 | 1 | 0.2 | 0.3 | 0.06 |
| 50μL | 5 | 0.05 | 3.5 | 0.18 | 1.5 | 0.075 |
| 25 | 1.2 | 0.3 | 0.4 | 0.1 |
| 50 | 0.8 | 0.4 | 0.2 | 0.1 |
| 100μL | 10 | 0.1 | 3.5 | 0.35 | 1 | 0.1 |
| 50 | 0.8 | 0.4 | 0.24 | 0.12 |
| 100 | 0.8 | 0.8 | 0.15 | 0.15 |
| 200μL | 20 | 0.2 | 2.5 | 0.5 | 1 | 0.2 |
| 100 | 0.8 | 0.8 | 0.25 | 0.25 |
| 200 | 0.8 | 1.6 | 0.15 | 0.3 |
| 300μL | 30 | 0.3 | 2.5 | 0.75 | 1 | 0.3 |
| 150 | 0.8 | 1.2 | 0.25 | 0.375 |
| 300 | 0.8 | 2.4 | 0.15 | 0.45 |
| 1000μL | 100 | 1 | 3 | 3 | 0.6 | 0.6 |
| 500 | 0.8 | 4 | 0.2 | 1 |
| 1000 | 0.8 | 8 | 0.15 | 1.5 |
Single Channel Pipette Packing & Delivery
Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
