RE-2000 series motor features a seamless 0-180RPM speed control and automatic lifting capability. Crafted from sleek and secure aluminum alloy, the main body exudes both aesthetics and safety. Its rotating mechanism integrates dependable micro motors, velocity regulators, and advanced circuit controls. Enabled by electronic speed regulation, it maintains steady rotation within the 0-180RPM spectrum.
Model | RE-A2000 | RE-B2000 | RE-C2000 |
---|---|---|---|
Glass Material | GG-17 | ||
Stent Material | Aluminium alloy | ||

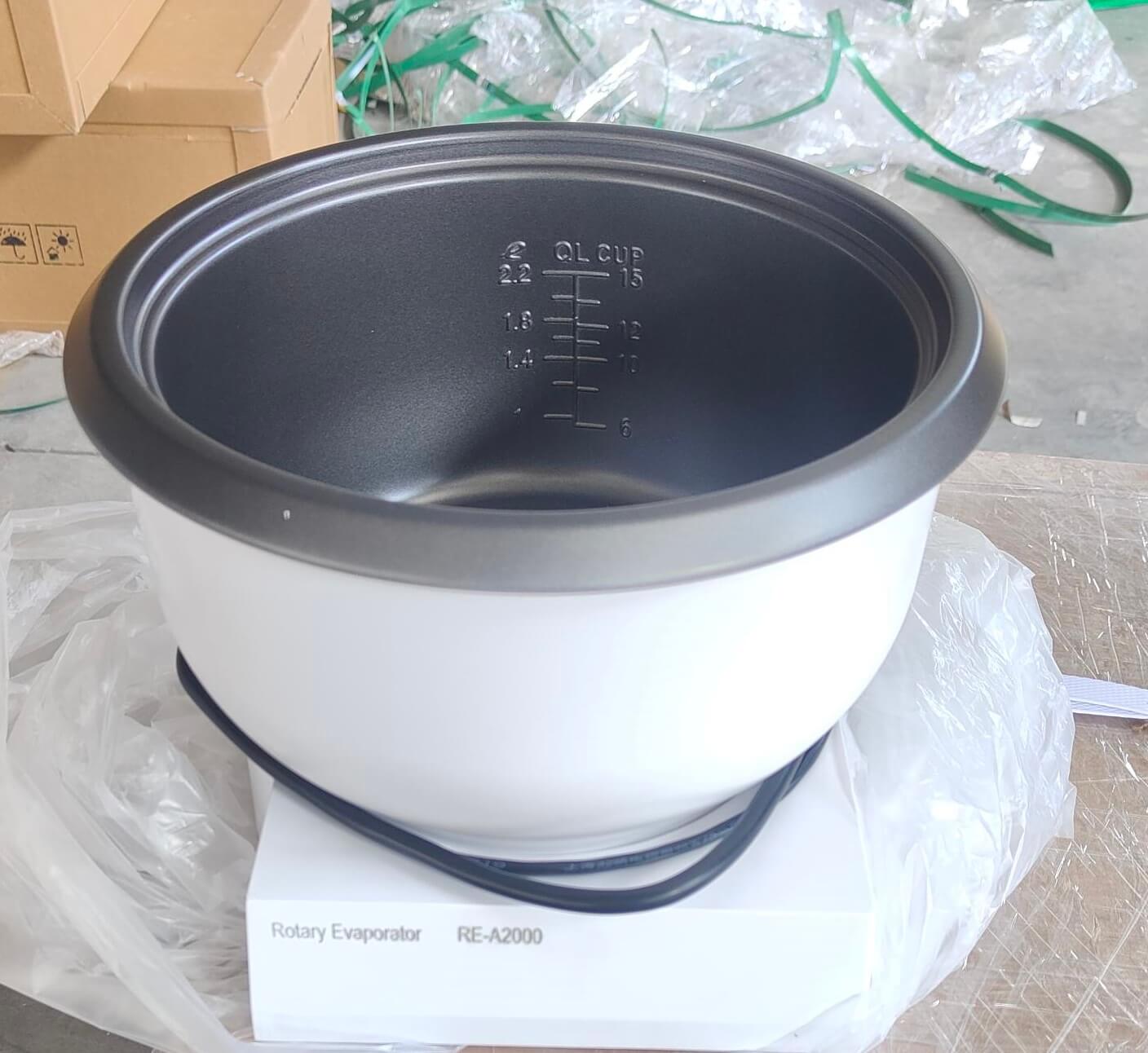

Bath Material | Teflon composite pot, fully enclosed heating | ||
Rotary Flask Volume | 0.5-2L 24# standard mouth | ||
Collecting Flask Volume | 1L 35# ball mill mouth | ||
Rotary Power | 40W | ||
Rotary Speed | 0-180rpm | ||
Heating Power | 1.5 kW | ||
Temperature Control of Bath | Room Temperature~99℃ | ||
Temperature Precision | ±1℃ | ||
Elevating Power | 15W | ||
Elevating Stroke | 120 mm | ||
Voltage/Frequency | 220V/50Hz | ||
Sizes(W×D×H)(mm) | 660×420×670 | ||
Shipping Size (W×D×H)(mm) | 630×620×540 | ||
N.W./G.W. (kg) | 23/26 | ||
Supporting Products | RE-A2000/B2000/C2000+Water Circulating Vacuum Pump VP-IIIA+Low Temperature Circulator LTC-10 |
Built-in vacuum controller, High vacuum performance.
PTFE sealing.
Adjust the ascending or descending of rotary flask automatically.
Digital display and control.
Easy assembling design: To be assembled within 30 minutes.
Double layer cooling coils for improved condenser performance.
High quality borosilicate glass 3.3 with excellent physical and chemical properties.
Cost-saving modular design and can be customized by clients' requirements.

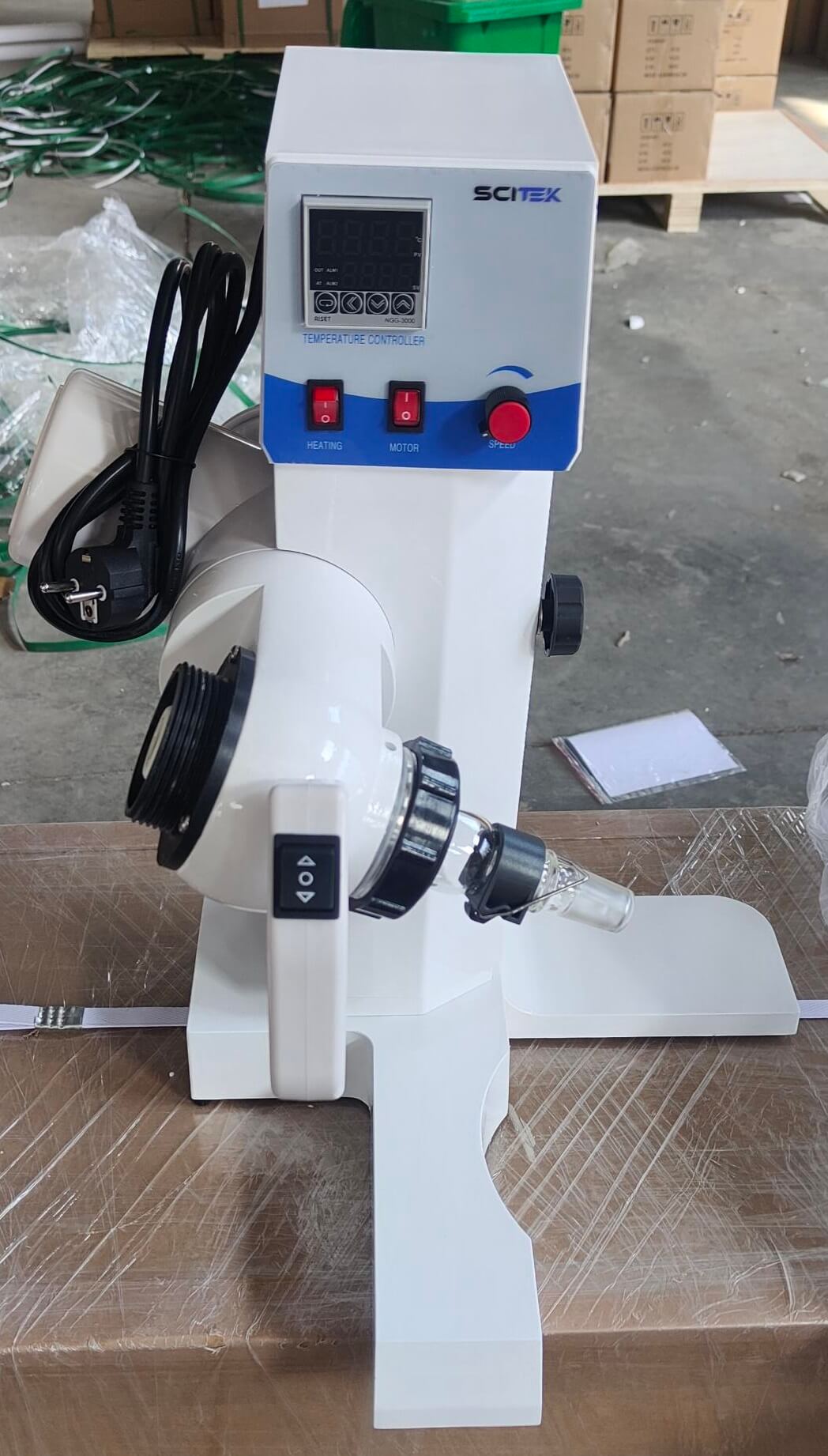

The overall design of the rotary evaporator is simple and clean, with a control panel on top with a digital display and multiple function buttons for easy operation.

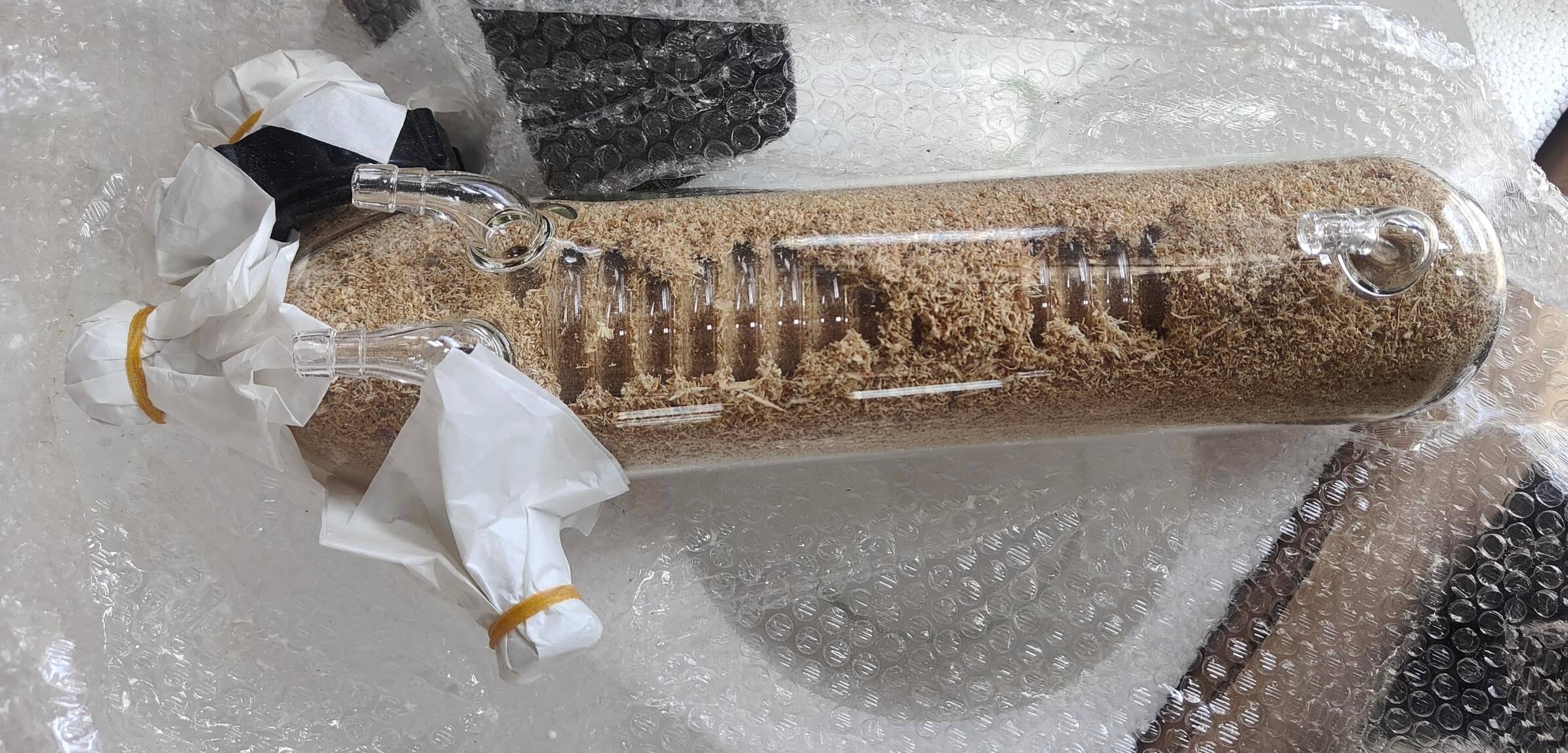

The internal structure of the condenser tube is complex and precise, enabling effective condensation of evaporated gases.
Evaporation bottle holder

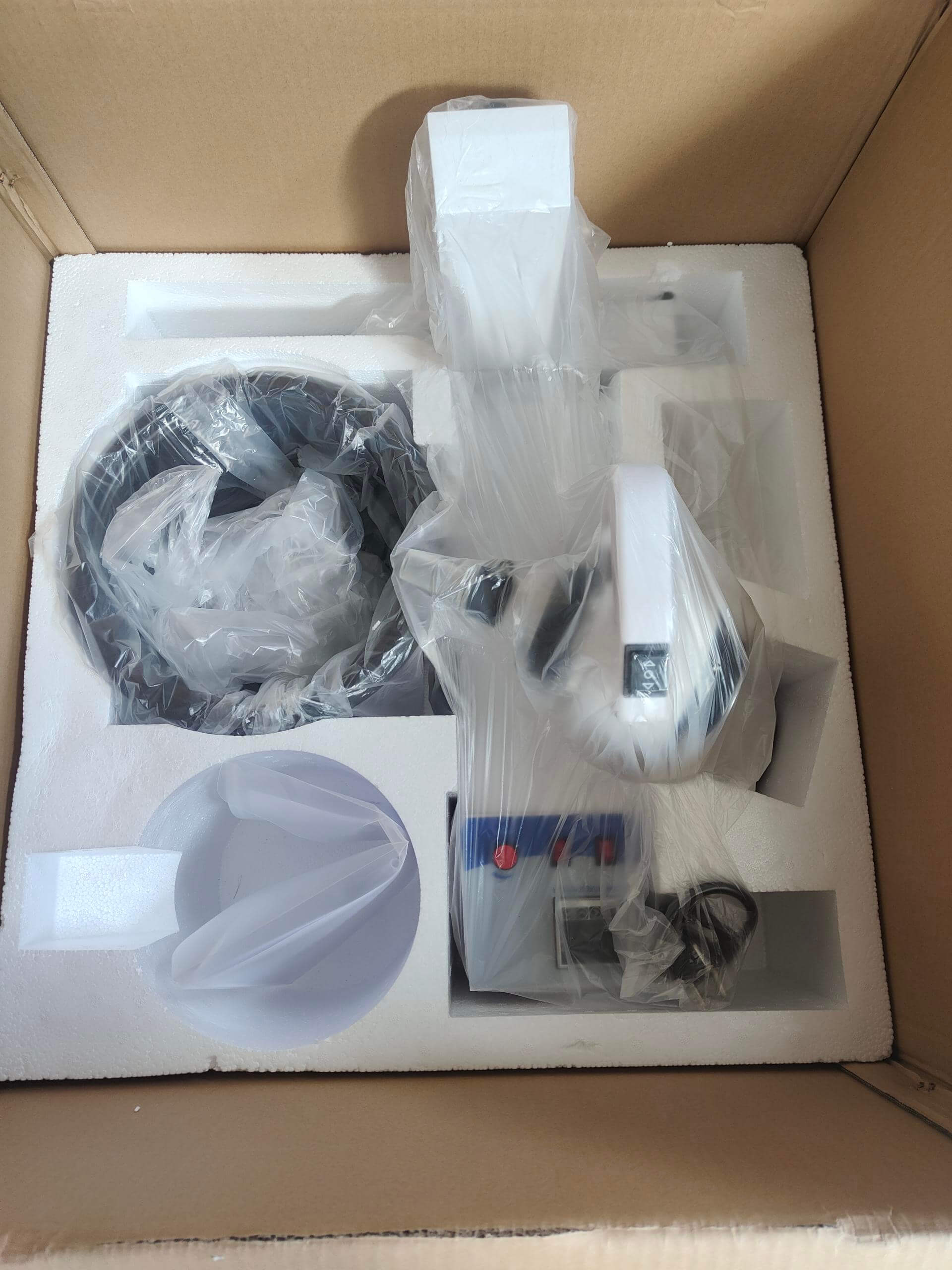

All components are protected by plastic film or foam to ensure their safety during transportation. Components include the main unit, condenser tubes and various fittings, arranged in a clear and organized manner.
RE-2000 series motor features a seamless 0-180RPM speed control and automatic lifting capability. Crafted from sleek and secure aluminum alloy, the main body exudes both aesthetics and safety. Its rotating mechanism integrates dependable micro motors, velocity regulators, and advanced circuit controls. Enabled by electronic speed regulation, it maintains steady rotation within the 0-180RPM spectrum.
Model | RE-A2000 | RE-B2000 | RE-C2000 |
---|---|---|---|
Glass Material | GG-17 | ||
Stent Material | Aluminium alloy | ||
Bath Material | Teflon composite pot, fully enclosed heating | ||
Rotary Flask Volume | 0.5-2L 24# standard mouth | ||
Collecting Flask Volume | 1L 35# ball mill mouth | ||
Rotary Power | 40W | ||
Rotary Speed | 0-180rpm | ||
Heating Power | 1.5 kW | ||
Temperature Control of Bath | Room Temperature~99℃ | ||
Temperature Precision | ±1℃ | ||
Elevating Power | 15W | ||
Elevating Stroke | 120 mm | ||
Voltage/Frequency | 220V/50Hz | ||
Sizes(W×D×H)(mm) | 660×420×670 | ||
Shipping Size (W×D×H)(mm) | 630×620×540 | ||
N.W./G.W. (kg) | 23/26 | ||
Supporting Products | RE-A2000/B2000/C2000+Water Circulating Vacuum Pump VP-IIIA+Low Temperature Circulator LTC-10 |
Built-in vacuum controller, High vacuum performance.
PTFE sealing.
Adjust the ascending or descending of rotary flask automatically.
Digital display and control.
Easy assembling design: To be assembled within 30 minutes.
Double layer cooling coils for improved condenser performance.
High quality borosilicate glass 3.3 with excellent physical and chemical properties.
Cost-saving modular design and can be customized by clients' requirements.
The overall design of the rotary evaporator is simple and clean, with a control panel on top with a digital display and multiple function buttons for easy operation.
The internal structure of the condenser tube is complex and precise, enabling effective condensation of evaporated gases.
Evaporation bottle holder
All components are protected by plastic film or foam to ensure their safety during transportation. Components include the main unit, condenser tubes and various fittings, arranged in a clear and organized manner.
