Refrigerated and heating circulator can be widely used in oil, physical, chemical, pharmaceutical, environmental protection and other fields of science, precision temperature control equipment.
Refrigerated and Heating Circulator Features:
Convenience function: Parameters memory function, temperature correction.
ECO-refrigerant and high quality compressor guarantee the cooling system eco-friendly and powerful.
Low Noise design: use high quality compressor and mute pump.
Robust water tank: ultra-slushing and rust-proof.
Bright LCD temperature display.
Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water.
Refrigerated and Heating CirculatorSpecifications:
Model
RHC-65L
RHC-620H
Working Temperature Range
-5 ~ 100 ℃
-20 ~ 200 ℃
Temperature Control
Fuzzy PID
Temperature Stability
±0.03 °C
Temperature Sensorl
PT100
Display Resolution
0.1 °C
Heater Capacity
2000 W
Cooling Capacity
250W
Refrigerant
R134a
Pump Capacity Pressure
0.35 bar
Pump Flow Rate
10L/min
Ambient Temperature
-20 ~ 70 °C
Output
RS232/RS485(optional)
Volume
6L
Bath Opening (LxW)(mm)
160x160
Bath Sizes (LxWxH)(mm)
320x180x150
Sizes (LxWxH)(mm)
400x250x650
Power Supply
220VAC±10% 50Hz
Weight (kg)
25
Package Info.
600x420x940mm, 40KG plywood
Applications of Refrigerated and Heating Circulator:
Experiment that need heating and cooling,Fermentation Tank, Polarimeter, Refractometer, Spectrophotometer, Electrophoresis System, Chromatographic Column, Viscometer, Rotation Evaporation Instrument, Rheometer.
Details of Refrigerated and Heating Circulator:

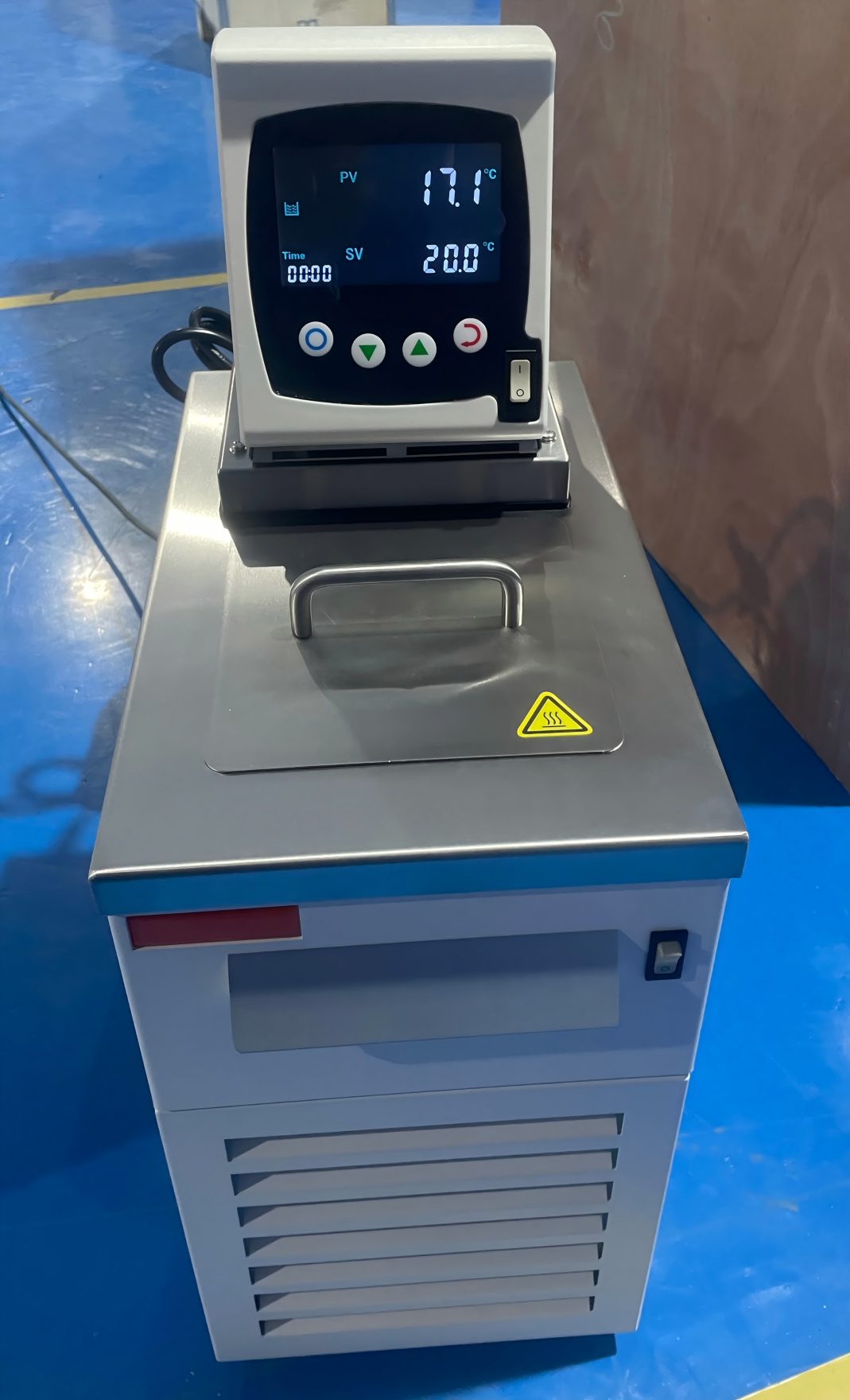

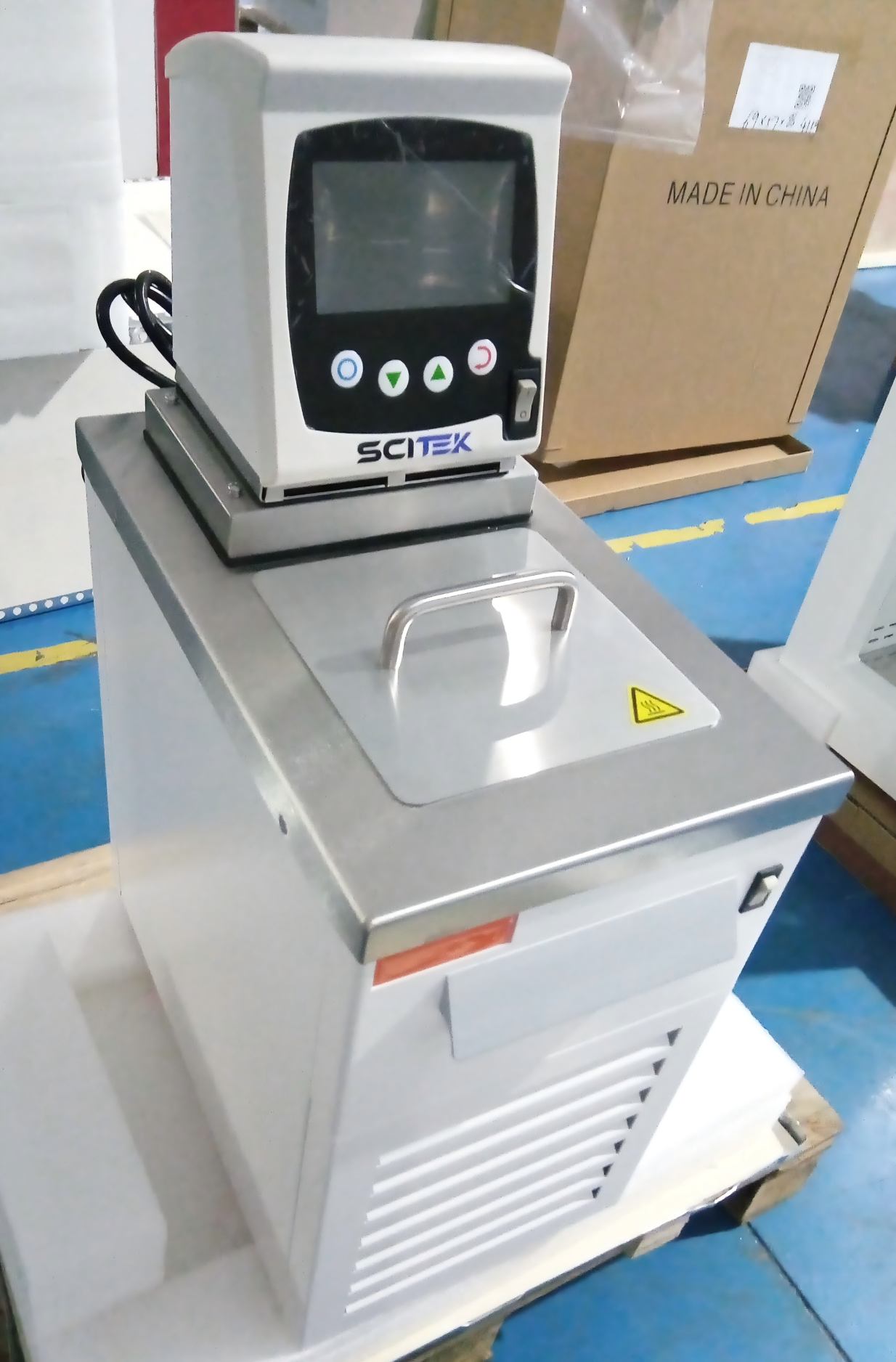

Dual-function temperature control system designed for stable refrigeration and heating, featuring an intuitive digital controller for precise and convenient operation.
The robust stainless-steel work surface and compact construction provide reliable durability while integrating easily into laboratory workflows.

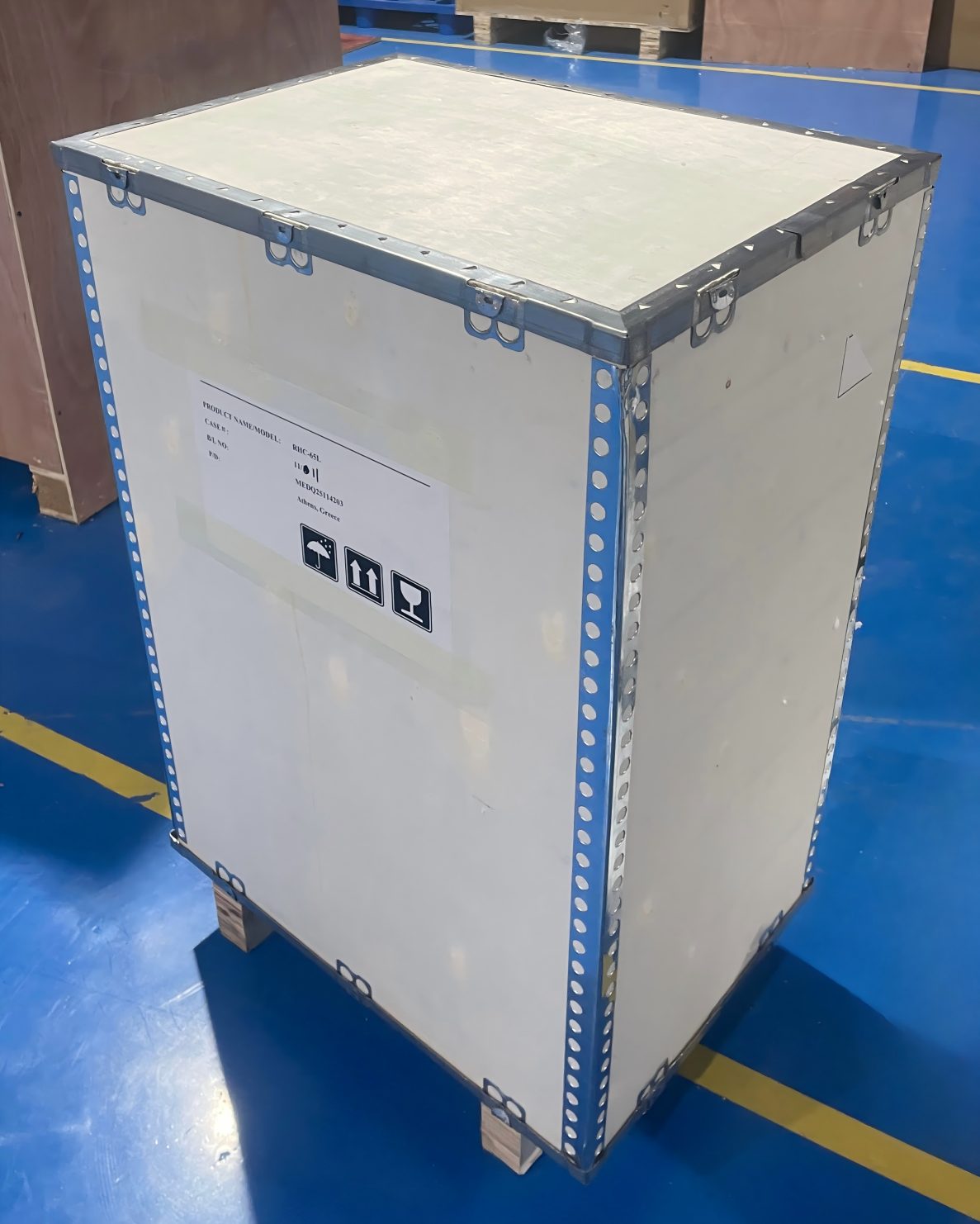

Securely packed in a sturdy wooden crate with protective cushioning to minimize the risk of impact, vibration, and movement during international transportation. The reinforced packaging provides reliable protection for the equipment and its key components, helping ensure safe delivery in excellent condition.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
