Portable Soil Irromerter Tensiometer

Model : SIT-15; SIT-30; SIT-45; SIT-50; SIT-60; SIT-90; SIT-120

Length (mm) : 150/300/450/500/600/900/1200
Testing Range : 0~1 Bar (1 Bar = 100 Kpa)
The portable soil irromerter tensiometer is suitable for analyzing observations of soil moisture conditions.
Availability:
Quantity:

Soil Irromerter Tensiometer Specifications:

Model SIT-15 SIT-30 SIT-45 SIT-50 SIT-60 SIT-90 SIT-120
Length(mm) 150 300 450 500 600 900 1200
Testing Range 0~1 Bar (1 Bar = 100 Kpa)
Shipping Size (W×D×H)(mm)

390x240

x80

460x170

x90

580x170

x90

720x170

x90

720x170

x90

1020x170

x90

1350x160

x110

G.W. (kg) 1 2 2 2 2 3 3
Note: Length can be made as customized. (Standard length is the length of transparent polycarbonate tube in the middle of tension meter tube)

Soil Irromerter Tensiometer Feature:

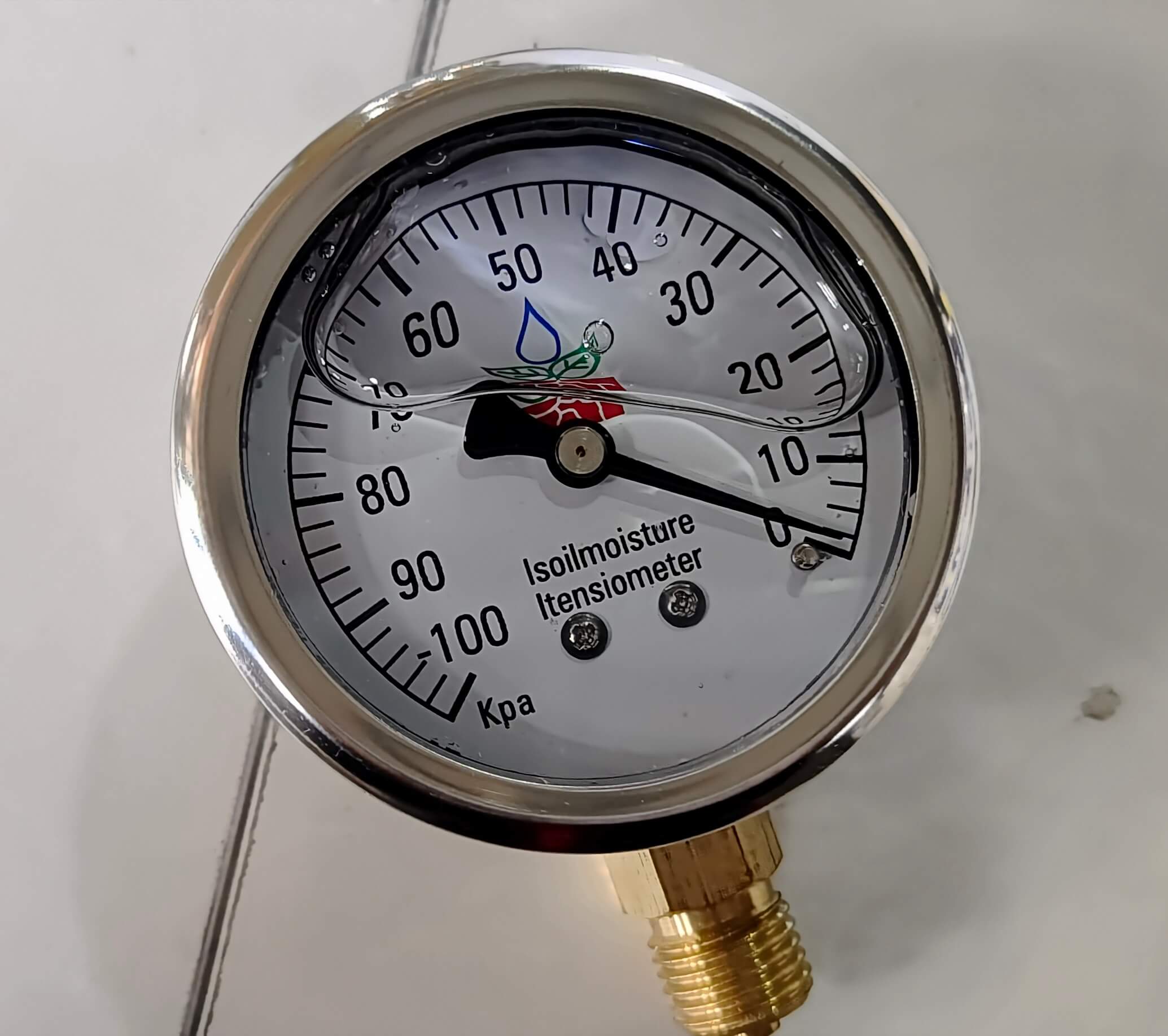

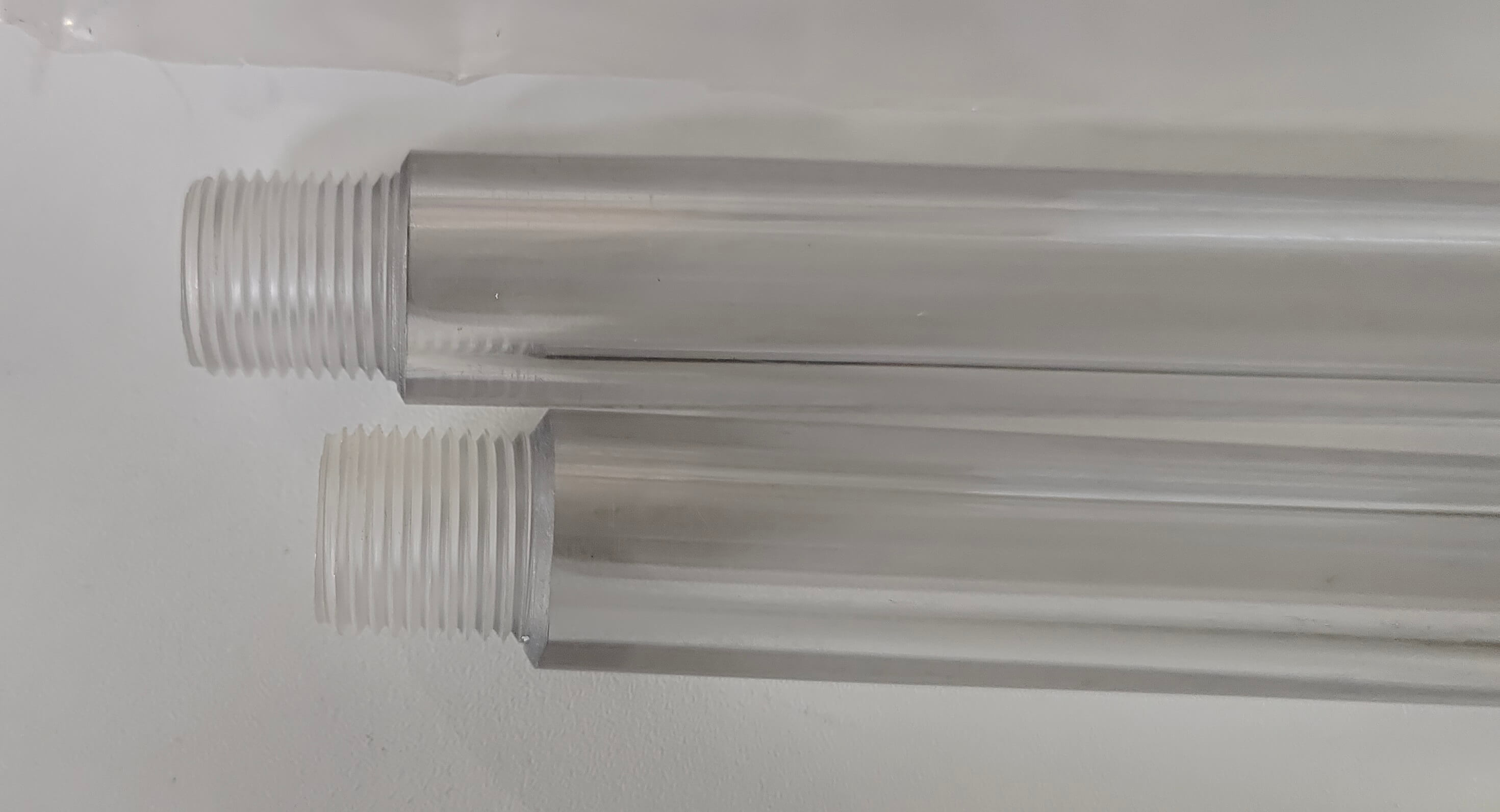

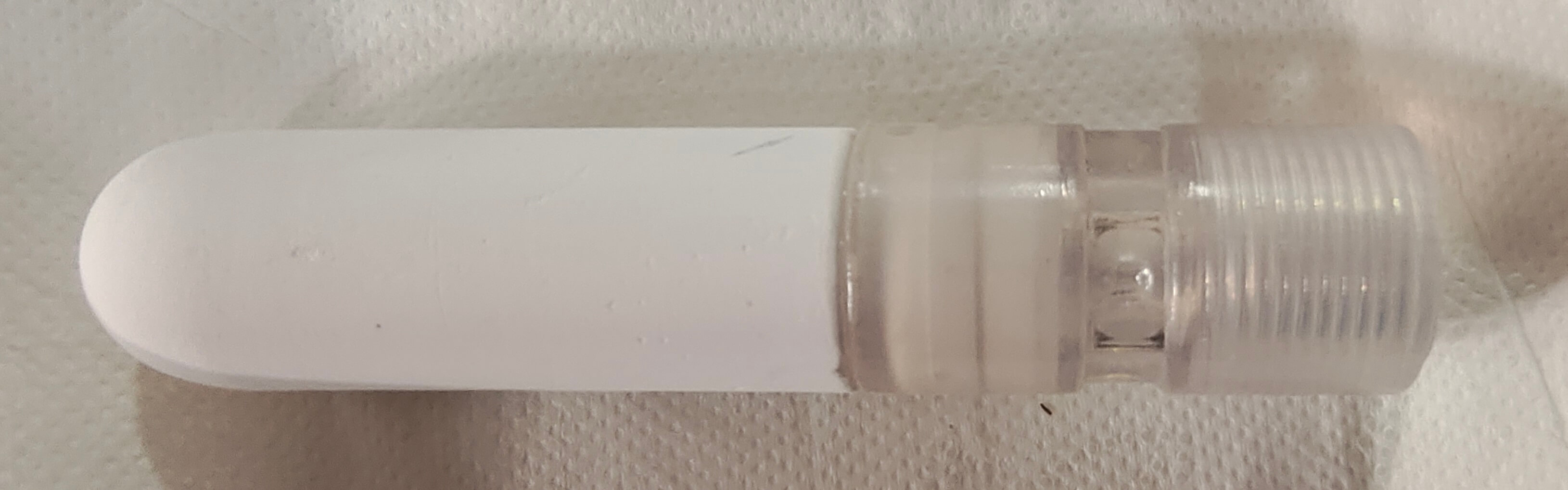

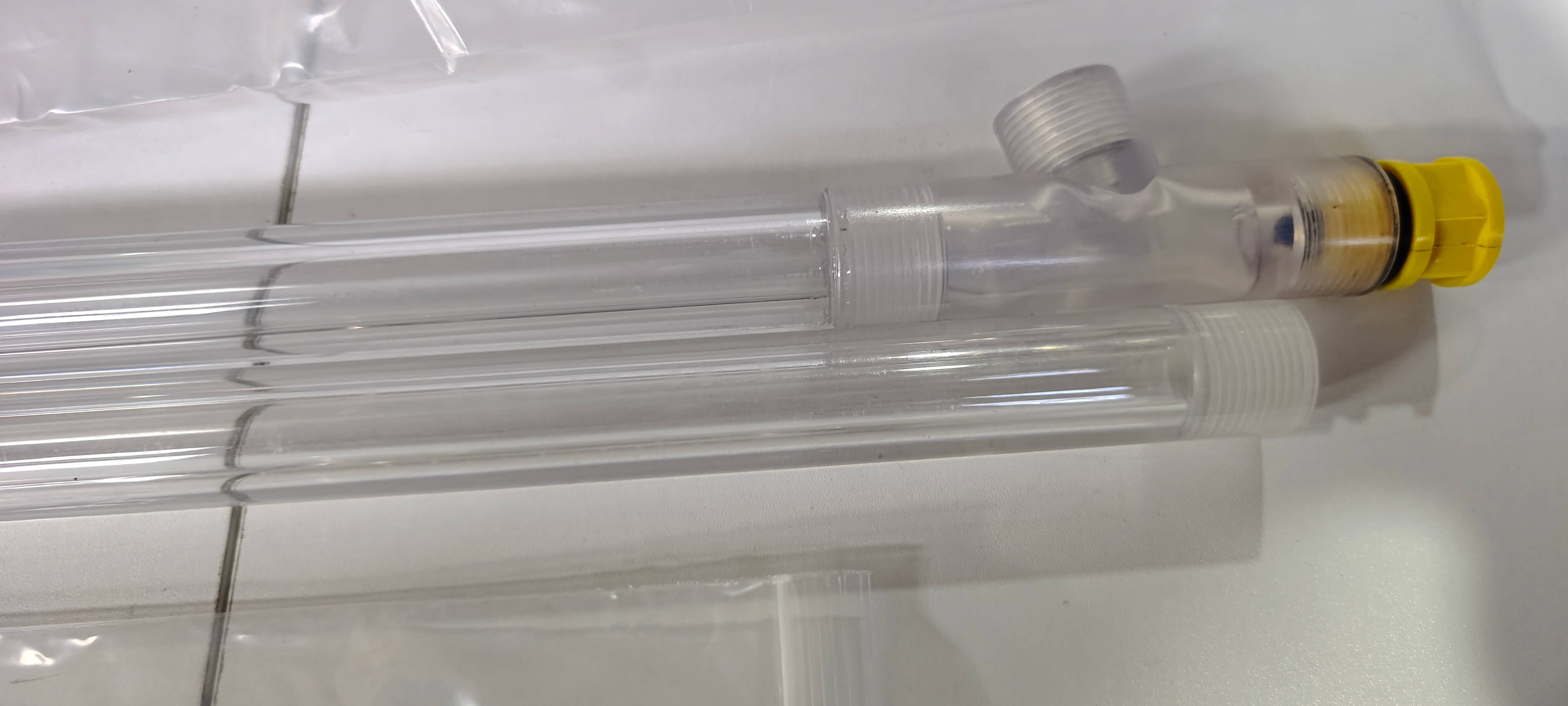

Soil Irrometer tensiometer is made up of pressure gauge, acrylic tube and ceramic probe, after the acrylic tube filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe. When there is pressure difference between measured soil water potential and tensiometer, the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.

Details of Portable Soil Irromerter Tensiometer(SIT-120):

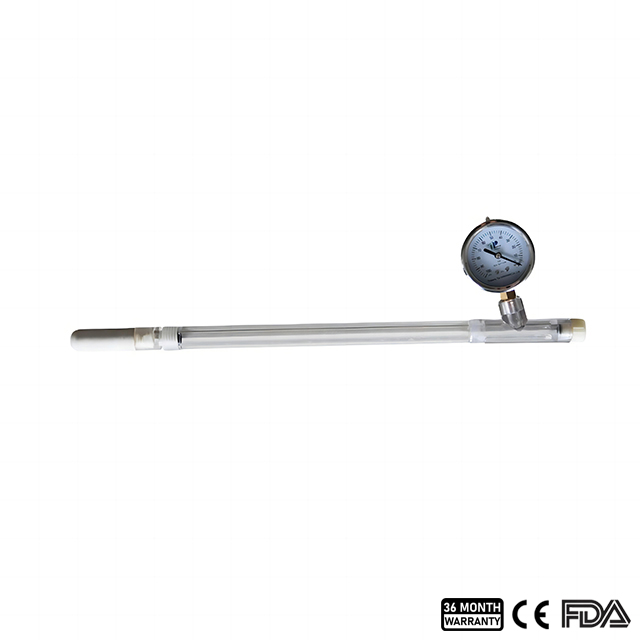

Portable Soil Irromerter Tensiometer

The lightweight construction of the Portable Soil Irromerter Tensiometer makes it easy to use in the field, garden or laboratory.

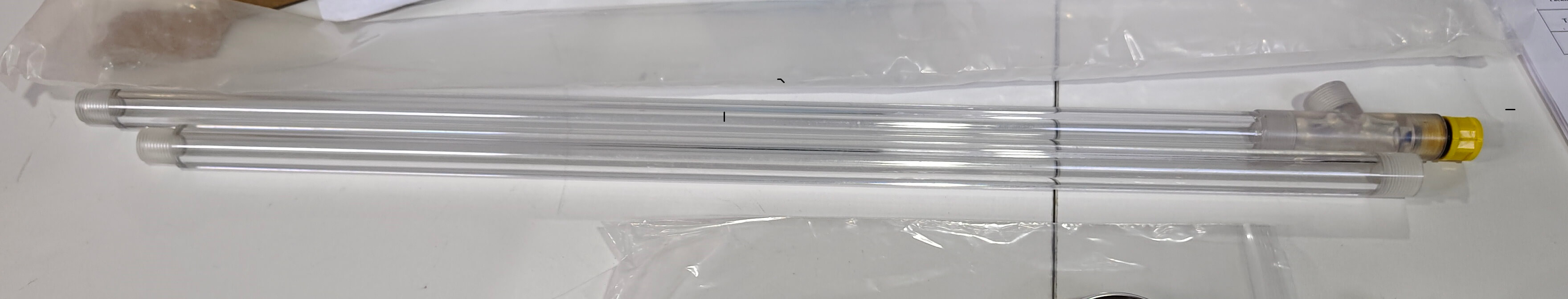

SIT-120 (12)

SIT-120 (9)

SIT-120 (16)

SIT-120 (13)

SIT-120 (14)

Whether for irrigation management, crop growing or soil research, this portable soil irromerter tensiometer provides users with a reliable and accurate soil moisture monitoring solution.
