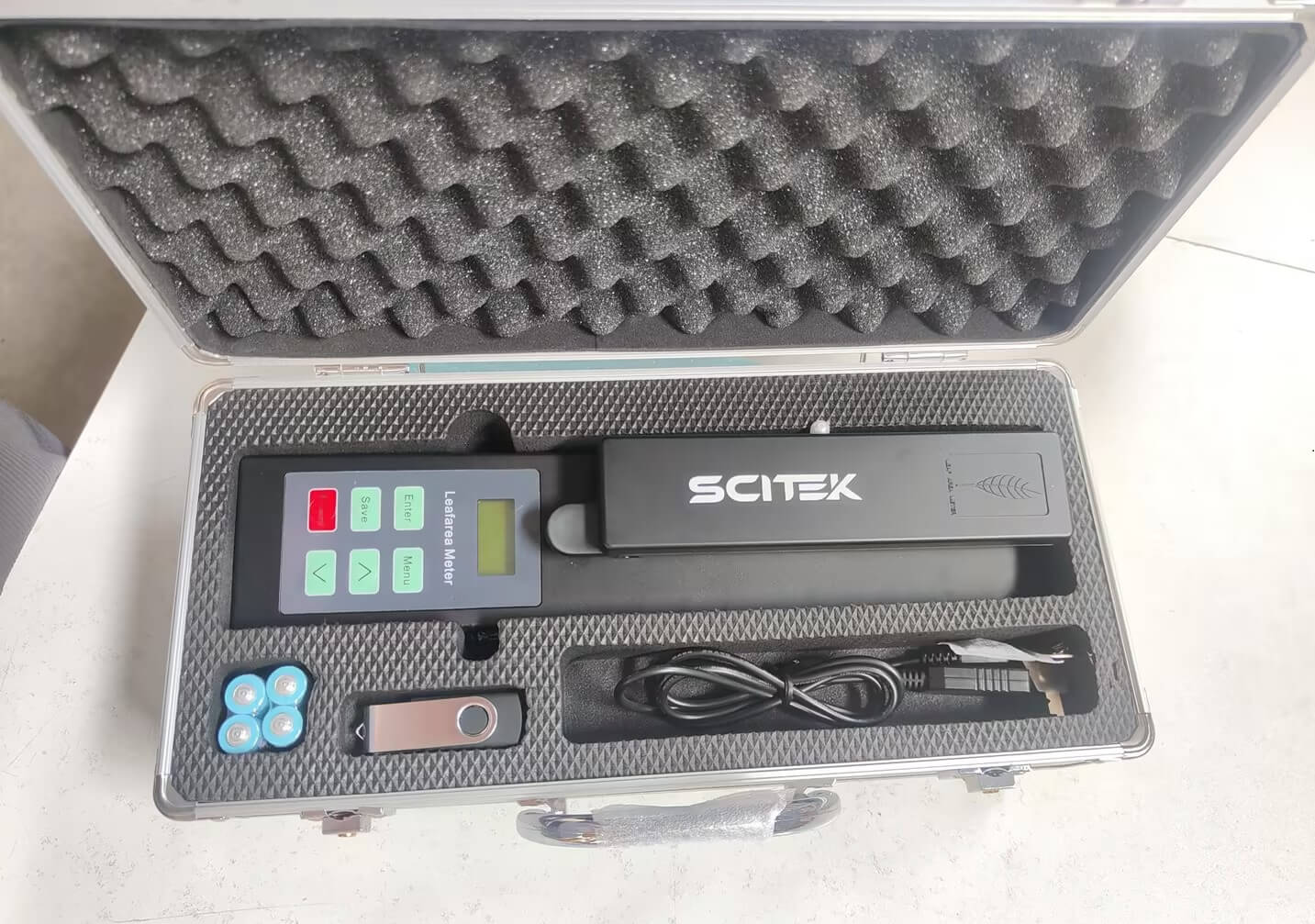

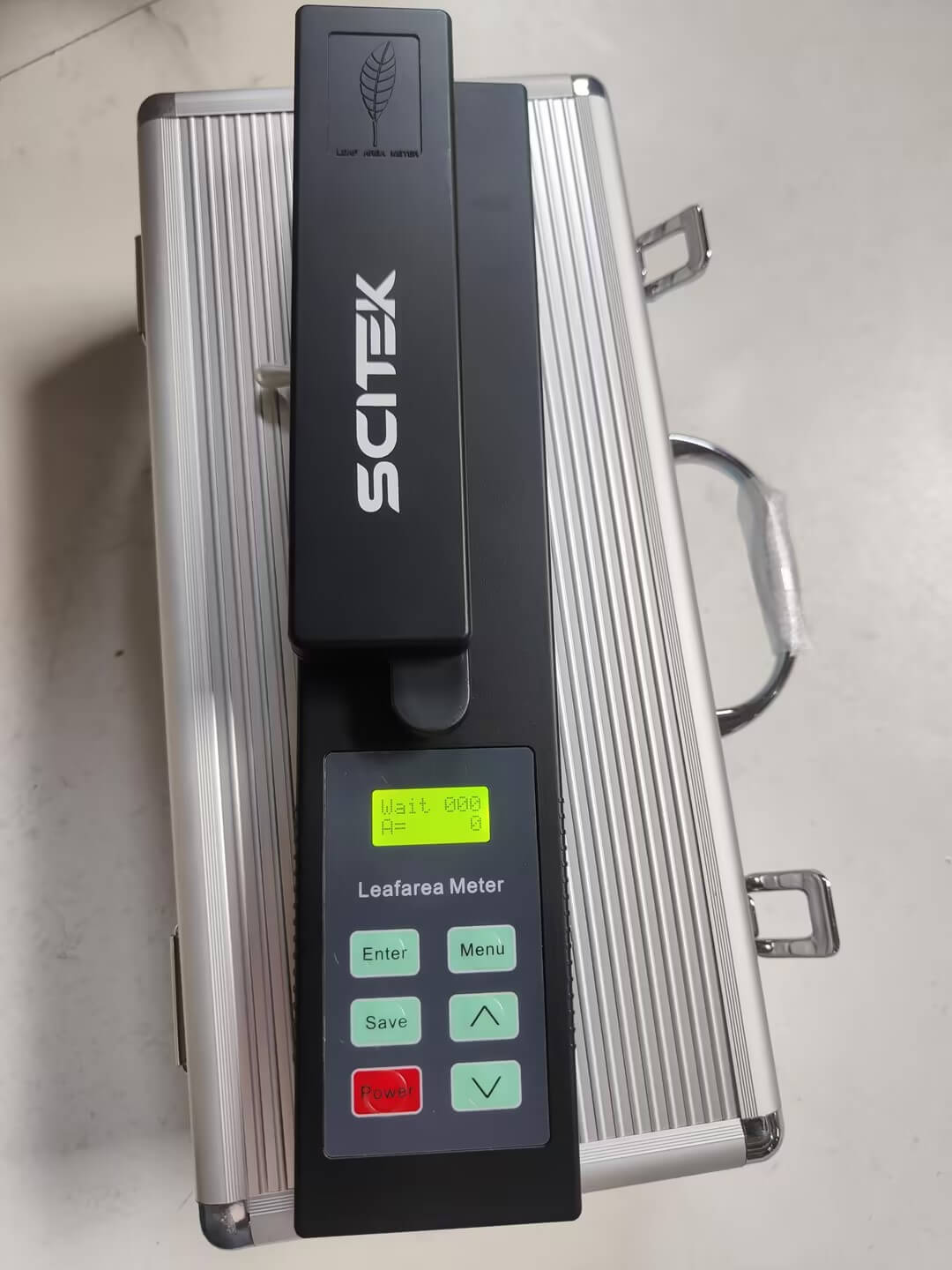

Advantages of Portable Leaf Area Meter:
Accurately measures irregularly shaped and perforated leaves.
Up to 1,000 measurements can be stored.
Precision 0.01c㎡
Small size for non-destructive leaf area measurements in the field
Portable Leaf Area Meter Specifications:
| Model | LAM-PB |
|---|
| Function | USB with computer by software, you can put the datum into computer, and convert datum to excel format and print |
| Test Unit | Millimeter, square centimeter |
| Precision | ±2% |
| Resolution | 0.01cm2 |
| Measuring Length | ≤1000mm |
| Measuring Width | ≤160mm |
| Thickness | ≤8mm |
| Data Capacity | ≥1000 Groups |
| Power Supply | AC220V, 50/60Hz |
| Shipping Size (W×D×H)(mm) | 540x270x190 |
| G.W. (kg) | 4 |
Related Products:
Plant Nutrient Analyzer/Chlorophyll Meter/Plant Photosynthesis Meter/Plant respiration Meter/Plant Culm‐strength Meter |
|
|
|
Portable Leaf Area Meter Feature:
This is a portable leaf area meter designed for non-destructive leaf area measurement. It can quickly and accurately measure parameters such as leaf area, perimeter and aspect ratio. With its portability, efficiency and accuracy, the Portable leaf area meter provides a convenient solution for plant growth monitoring, scientific research experiments, etc. The following are its main features:
Non-destructive testing: Adopting a non-invasive measurement method, leaf meter can measure the area of leaves without any damage, without affecting the growth status of plants.
Simple operation: With its simple design and easy operation, users can easily complete several measurements such as leaf area, circumference and aspect ratio.
Microcomputer technology: Advanced microcomputer technology, equipped with LCD, to display measurement data visually to improve the convenience of use.
USB upload: Measurement data can be saved via the built-in memory. At the same time, through the USB interface, it is convenient to upload and share the data.
FAQ
How does a portable laser leaf area meter work?
The leaf meter uses a laser scanner to scan the surface of the leaf. The laser light is reflected back to the photodiode, which measures the light intensity. The light intensity is compared to a threshold voltage to generate a digital output for processing by a microcontroller unit.
Is the LAM-PB waterproof?
The leaf meter is designed to be waterproof and can be used in light rain without problems, but it is not recommended for use in heavy rain or underwater.
Is there a warranty on this product?
The leaf area meter is covered by a 36 month warranty from the date of sale.
Portable Laser Leaf Area Meter Applications
Plant physiology, forestry, environmental and crop researchers all benefit greatly from the metrics provided by the Portable Laser Leaf Area Meter.
What is the acceptable operating temperature for this product?
It can reliably operate at temperatures from 0 to 50° C and is suitable for a variety of applications.
