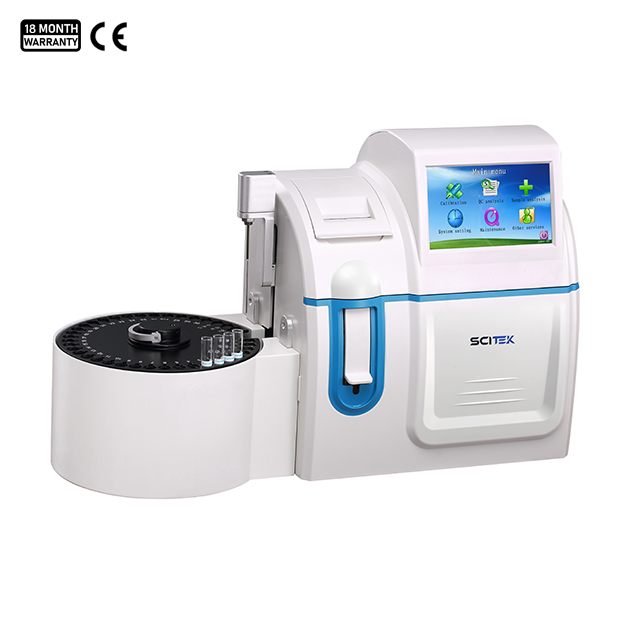

Electrolyte analyzer with 7-inch color touchscreen display for easy operation
Dynamic real-time display of sample ID, ergonomic design, and user-friendly interface.
Power off at any time to reduce reagent consumption
Power failure protection to avoid data loss
Automatic calibration and two-point correction, adjusting the slope and intercept to ensure the accuracy of the test data.
Automatic liquid level detection and alarm. Real-time diagnosis of system working status
Automatic detection and filtration of tiny bubbles to avoid clogging and ensure accurate measurement.
Multiple cleaning methods to avoid clogging and cross-contamination
Fast measurement speed and wide sample capacity options suit any hospital.
Electrolyte Analyzer Specifications:
Model
EA-900B
EA-900C
EA-900D
Test Item
K, Na, Cl, TCO2
K, Na, Cl, iCa, nCa, TCa, pH
K, Na, Cl, iCa, nCa, TCa, pH, TCO2, AG
Sample Types
Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine
Sample Consumption
60-300μL (Item 3 to item 11)
Measuring Technology
Ion Selective Electrode
Analysis Time
≤25-40 seconds
Storage
Up to 10000 test results
Printer
Internal thermal printer
Power Supply
AC220V, 50/60Hz
Ambient Conditions
15-40 °C(60-104 F), ≤ 85% humidity
Communication Interface
RS232
Optional
T&K cup / blood collection tube Auto sampler : 39 positions (Including 5 emergency and 2 QC)
Sizes (W×D×H)(mm)
340x200x380
Shipping Size (W×D×H)(mm)
510x410x690
N.W./G.W. (kg)
6/15
Measuring range, resolution and accuracy:
Items
Measuring Range
Resolution
Measuring Precision(CV%)
K+
0.5-20.0mmol/L
0.01 mmol/L
≤1.0%
Na+
15-200mmol/L
0.1 mmol/L
≤1.0%
Cl-
15-200mmol/L
0.1 mmol/L
≤1.0%
Ca2+
0.1-6.0mmol/L
0.01 mmol/L
≤1.0%
Li+
0.1-5.0mmol/L
0.01 mmol/L
≤2.0%
pH
4-9pH
0.01 pH
≤0.5%
TCO2
2.0-70.0mmol/L
0.1 mmol/L
≤3.0%

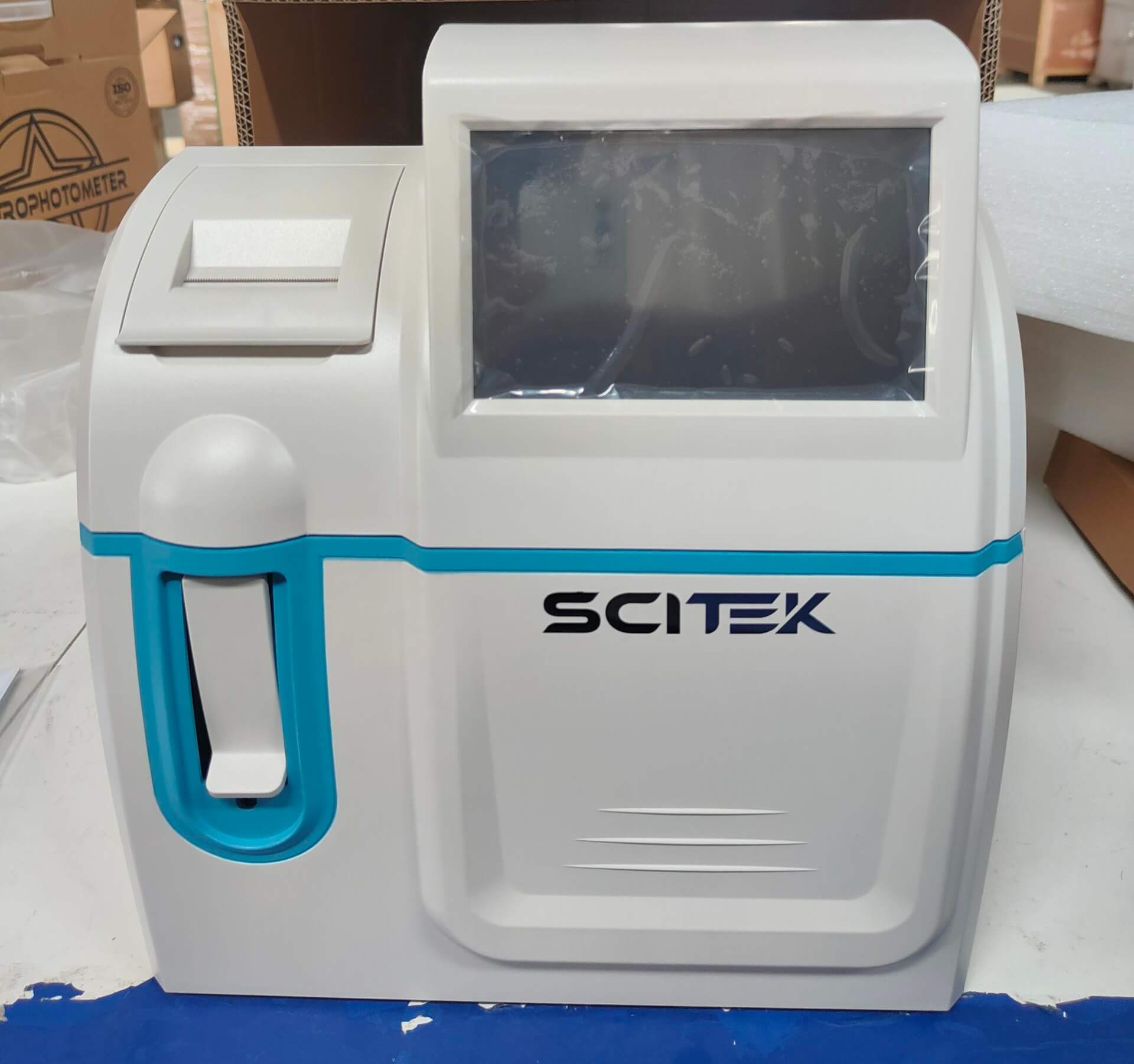

Details of Electrolyte Analyzer (EA-900B):
It supports four common types of sample adding cups, including Telcon cup, biochemical cup, bullet head and original test tube.
This is electrolyte analyzer designed for clinical testing and laboratory research for the rapid determination of key electrolyte constituents (e.g., sodium, potassium, calcium, chloride, and carbon dioxide) in blood, urine, and other body fluids.
Equipped with a sample collection module and a data transfer interface, the electrolyte analyzer supports a wide range of assay needs and enables direct integration of results into the Laboratory Information System (LIS).
Electrolyte Analyzer Features:
Electrolyte analyzer with 7-inch color touchscreen display for easy operation
Dynamic real-time display of sample ID, ergonomic design, and user-friendly interface.
Power off at any time to reduce reagent consumption
Power failure protection to avoid data loss
Automatic calibration and two-point correction, adjusting the slope and intercept to ensure the accuracy of the test data.
Automatic liquid level detection and alarm. Real-time diagnosis of system working status
Automatic detection and filtration of tiny bubbles to avoid clogging and ensure accurate measurement.
Multiple cleaning methods to avoid clogging and cross-contamination
Fast measurement speed and wide sample capacity options suit any hospital.
Electrolyte Analyzer Specifications:
Model
EA-900B
EA-900C
EA-900D
Test Item
K, Na, Cl, TCO2
K, Na, Cl, iCa, nCa, TCa, pH
K, Na, Cl, iCa, nCa, TCa, pH, TCO2, AG
Sample Types
Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine
Sample Consumption
60-300μL (Item 3 to item 11)
Measuring Technology
Ion Selective Electrode
Analysis Time
≤25-40 seconds
Storage
Up to 10000 test results
Printer
Internal thermal printer
Power Supply
AC220V, 50/60Hz
Ambient Conditions
15-40 °C(60-104 F), ≤ 85% humidity
Communication Interface
RS232
Optional
T&K cup / blood collection tube Auto sampler : 39 positions (Including 5 emergency and 2 QC)
Sizes (W×D×H)(mm)
340x200x380
Shipping Size (W×D×H)(mm)
510x410x690
N.W./G.W. (kg)
6/15
Measuring range, resolution and accuracy:
Items
Measuring Range
Resolution
Measuring Precision(CV%)
K+
0.5-20.0mmol/L
0.01 mmol/L
≤1.0%
Na+
15-200mmol/L
0.1 mmol/L
≤1.0%
Cl-
15-200mmol/L
0.1 mmol/L
≤1.0%
Ca2+
0.1-6.0mmol/L
0.01 mmol/L
≤1.0%
Li+
0.1-5.0mmol/L
0.01 mmol/L
≤2.0%
pH
4-9pH
0.01 pH
≤0.5%
TCO2
2.0-70.0mmol/L
0.1 mmol/L
≤3.0%
Details of Electrolyte Analyzer (EA-900B):
It supports four common types of sample adding cups, including Telcon cup, biochemical cup, bullet head and original test tube.
This is electrolyte analyzer designed for clinical testing and laboratory research for the rapid determination of key electrolyte constituents (e.g., sodium, potassium, calcium, chloride, and carbon dioxide) in blood, urine, and other body fluids.
Equipped with a sample collection module and a data transfer interface, the electrolyte analyzer supports a wide range of assay needs and enables direct integration of results into the Laboratory Information System (LIS).
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
