Ceramic Fiber Muffle Furnace Features:
Maximum operating temperature of 1700°C
Energy-saving insulation with high purity fibrous alumina.
Double-layer steel structure with air cooling fan for safe external touch.
Safety interlock system automatically powers off the furnace when the door is opened.
PID automatic control using current limiting phase angle firing.
Power control with 30 programmable segments for precise temperature control.
Ceramic Fiber Muffle Furnace Specifications:
| Model | MF-2-17 | MF-4-17 | MF-9-17 | MF-16-17 |
| Max. Temp (℃) | 1700℃ |
| Continuous Working Temp. | ≤1600℃ |
| Heating Element | MoSi2 heating rod |
| Thermal Couple | B type |
| Chamber Material | Ceramic fiber |
| Heating Rate | 0~30℃/min, suggest to be 5-10℃/min; |
| Thermal Control Accuracy | ±1℃ |
| Temperature Uniformity | ±5℃ |
| Power Supply | AC 100V-415V, 50Hz/60Hz |
| Max. Power | 2KW | 4KW | 9KW | 16KW |
| Chamber Size (WxDxHmm) | 100x100x100 | 150x200x150 | 200x300x200 | 300x400x300 |
| Or customize as your requirement |
| Exterior Size (WxDxH)(mm) | 425x320x568 | 570x470x815 | 670x530x906 | 770x620x1055 |
| Packing Size (WxLxH)(mm) | 535×430×825 | 775×640×1155 | 813×630×1035 | 950×755×1335 |
| NW/GW (kg） | 60/69 | 122/140 | 181/208 | 285/306 |
Details of Ceramic Fiber Muffle Furnace(MF-2-17):

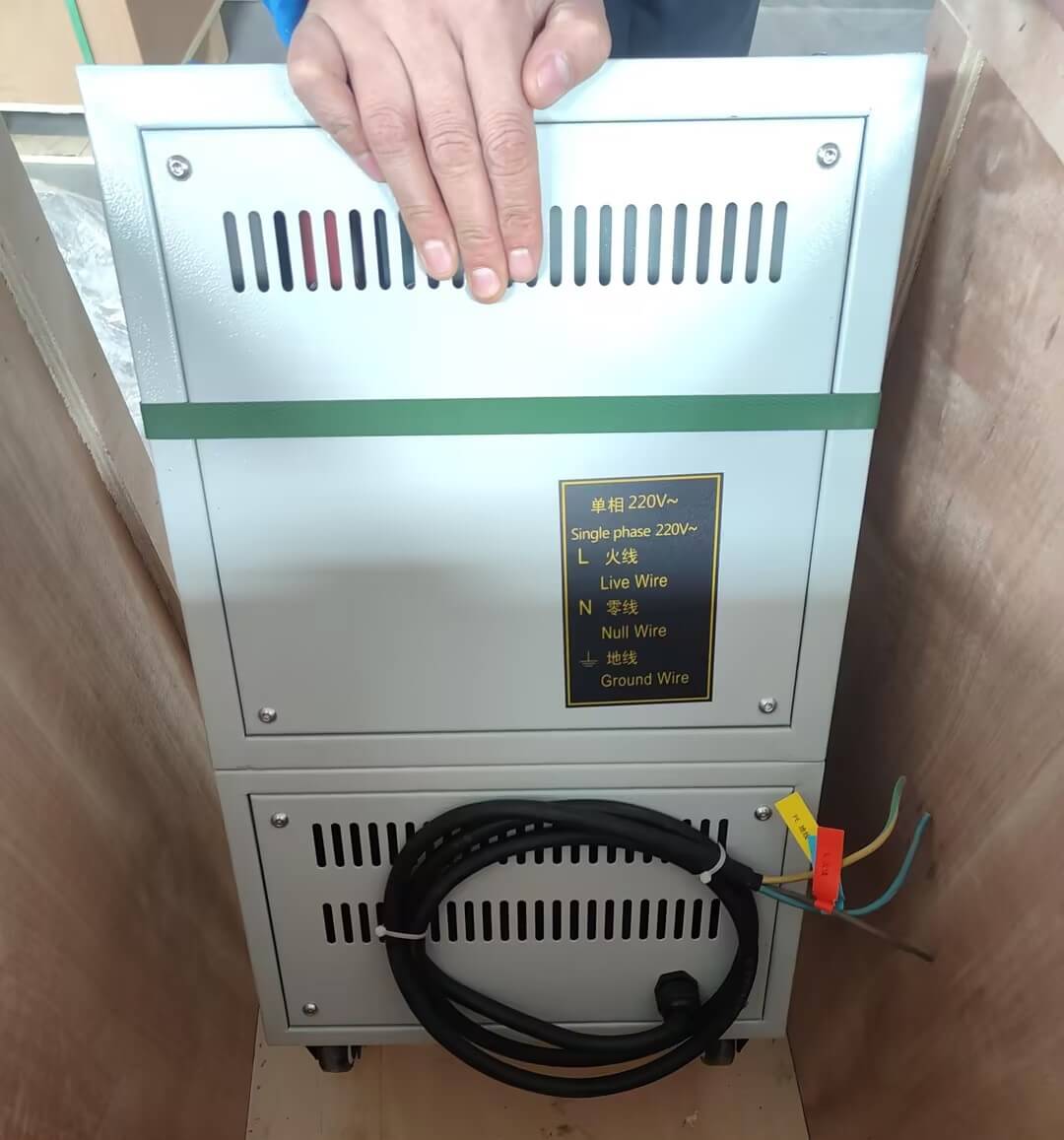

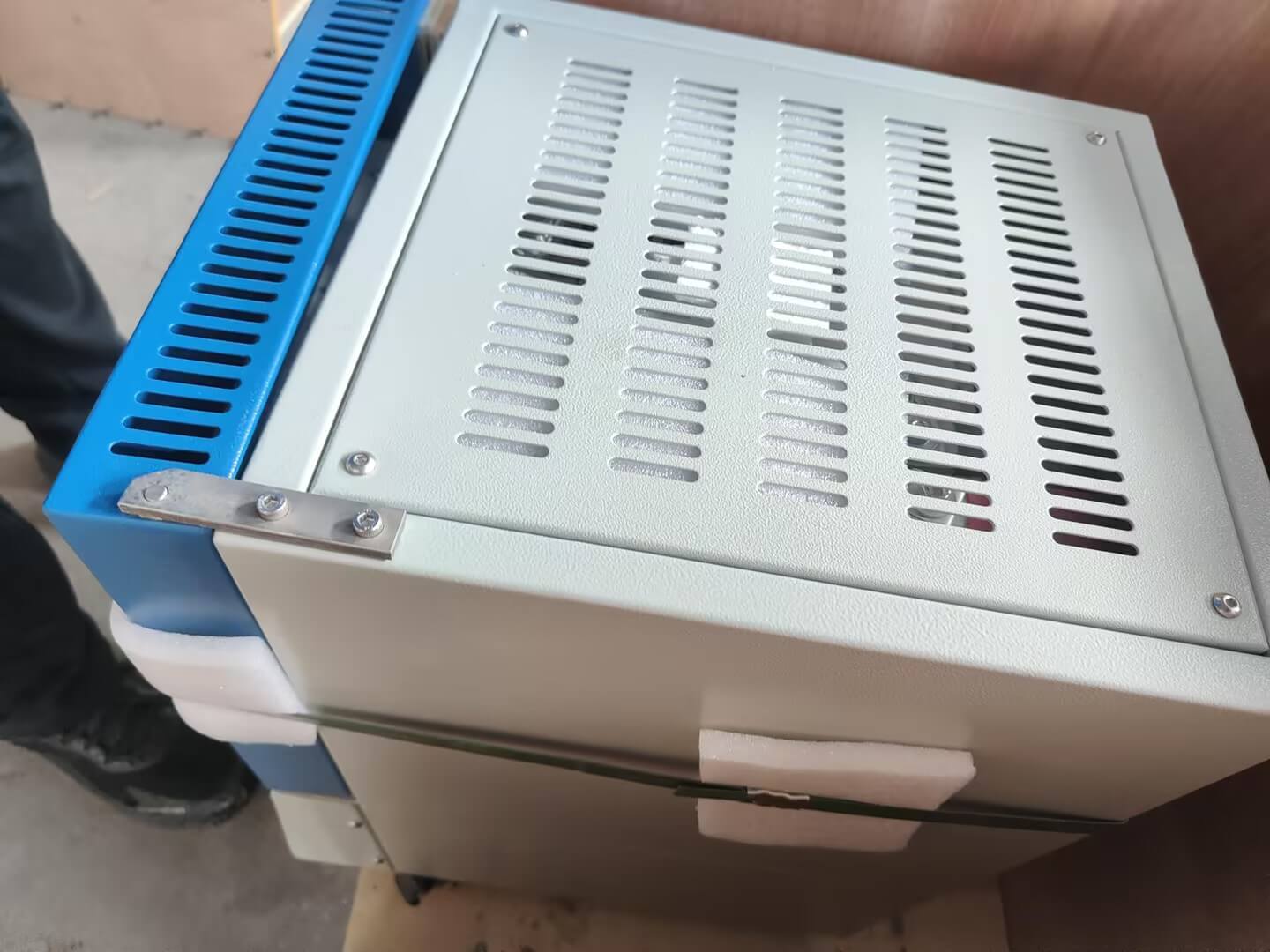

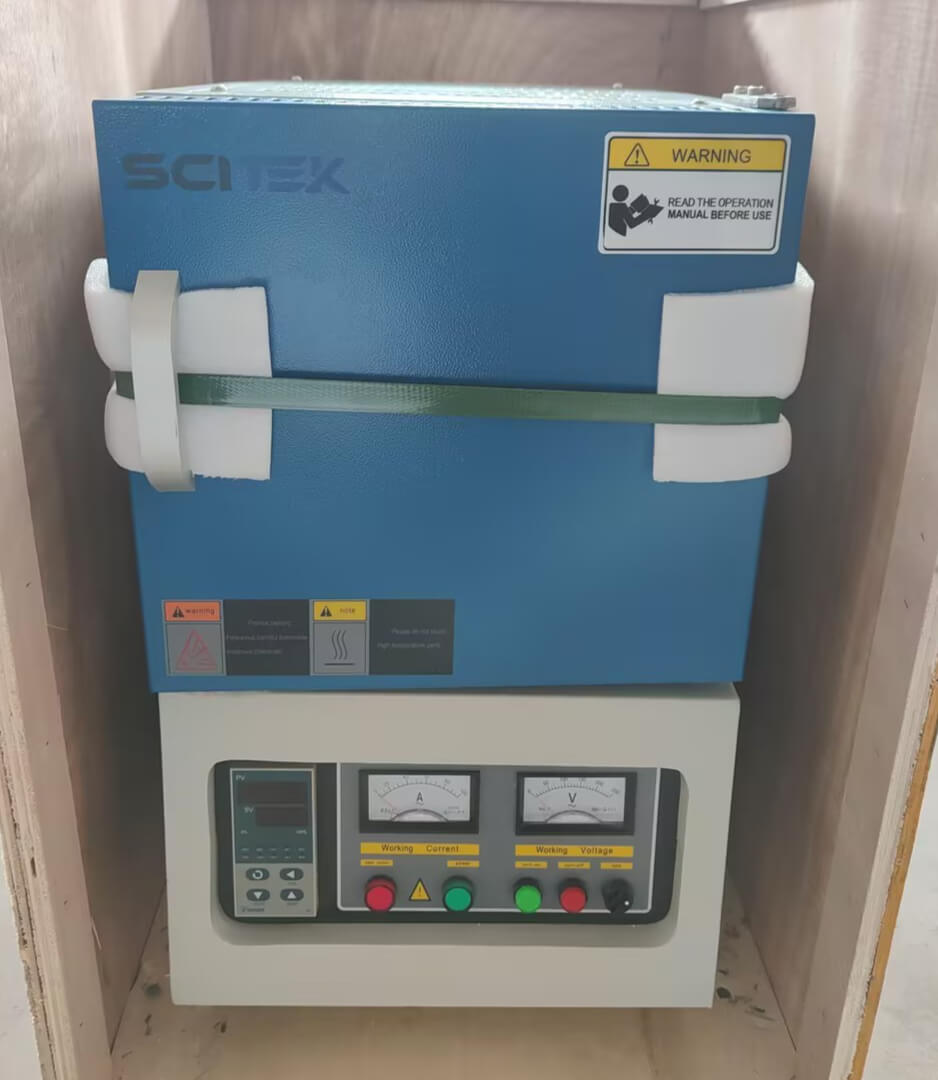

Digital thermostat with multiple function buttons and LED digital display for precise temperature control. The case is made of white metal with cooling holes to enhance the stability of use. The operating panel is located on the front side of the furnace and the handle is located on the top of the lid for easy opening and closing.

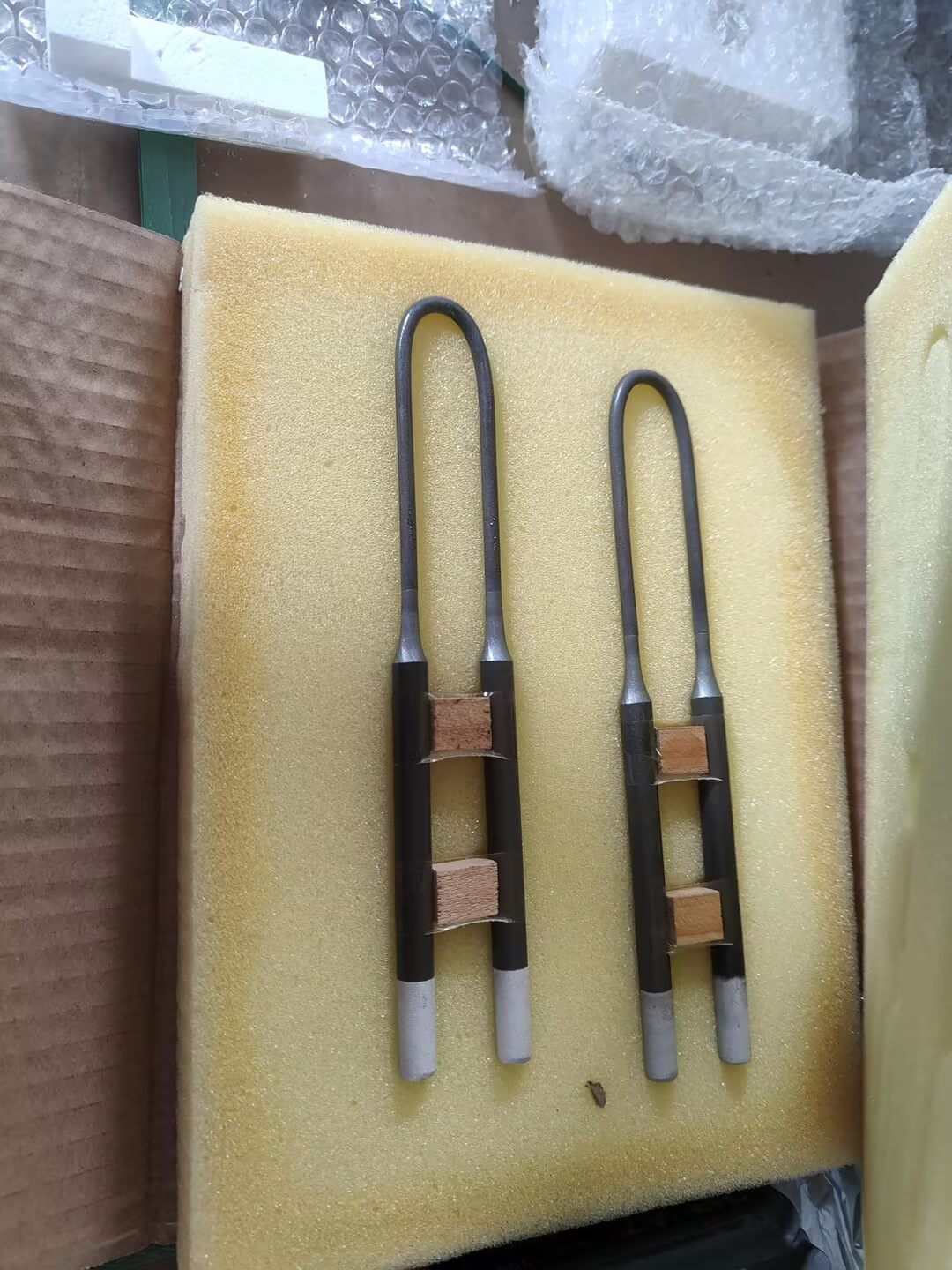

Two U-type heating tubes are neatly placed in the foam tank, plus plastic bag package to ensure that the transportation process of shock and moisture. Spare heating components are provided for users, which is convenient for maintenance and replacement at a later stage.
Manual and warranty card packaging diagrams and other documents in a protective packaging, the outer layer of the plastic bag, with anti-vibration padding material. The contents include operating manuals, parameter descriptions, certificates of conformity and factory test records to ensure that the user understands the operating procedures of the equipment.
