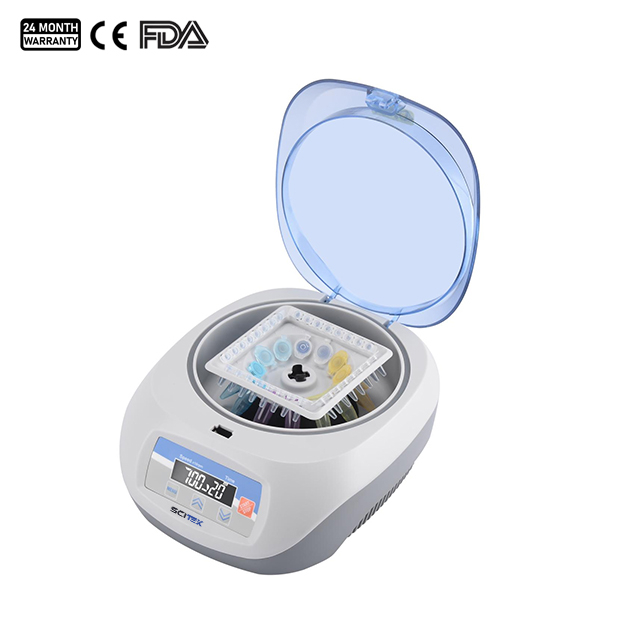

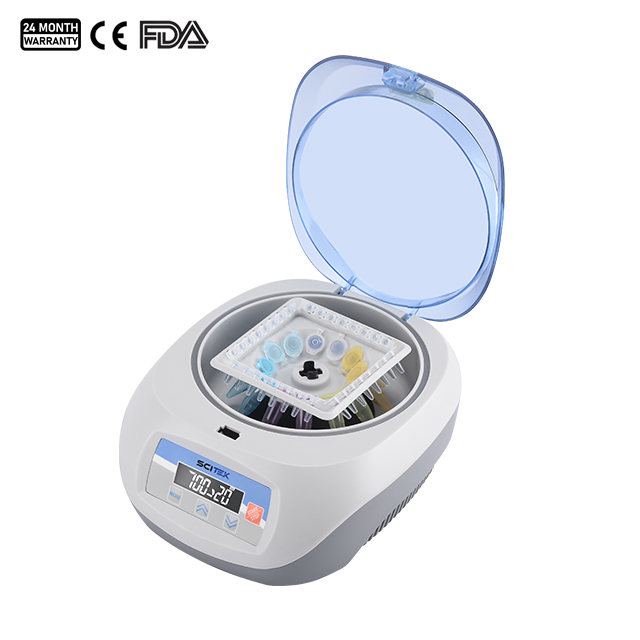

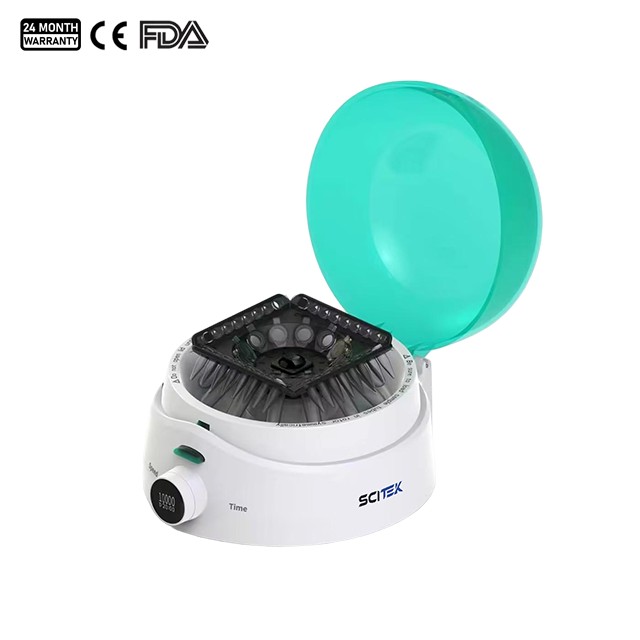

Mini Centrifuge CFG-12M/MI

Model : CFG-12M, CFG-12MI

Speed (rpm) 500–12000 (500 rpm steps) 2000–10000 (1000 rpm steps)
Display LCD OLED
Motor DC motor
Capacity 0.2 mL×48 PCR tubes 0.2 mL×44 PCR tube
It can be used for a variety of experiments such as DNA/RNA extraction and cell isolation.
Availability:
Quantity:

Handheld centrifuges are microcentrifuges specially designed for microfiltration, cell separation and rapid collection of wall-mounted liquids. Its motor-driven rotor provides effective centrifugal force for collecting liquid substances in specific containers. The equipped rotor can be used for 0.5ml centrifuge tubes, 1.5ml centrifuge tubes, and 0.2ml PCR tubes at the same time.

Mini Centrifuges Features:

  1. Powerful drive system, enabling rapid sample separation and concentration.

  2. Rotor features a robust, durable construction paired with a snap-lock design, allowing for effortless installation and removal with a single click, making operation simple and convenient.

  3. High-quality DC motor, ensures smooth operation with low noise levels, balancing both operational efficiency and user comfort.

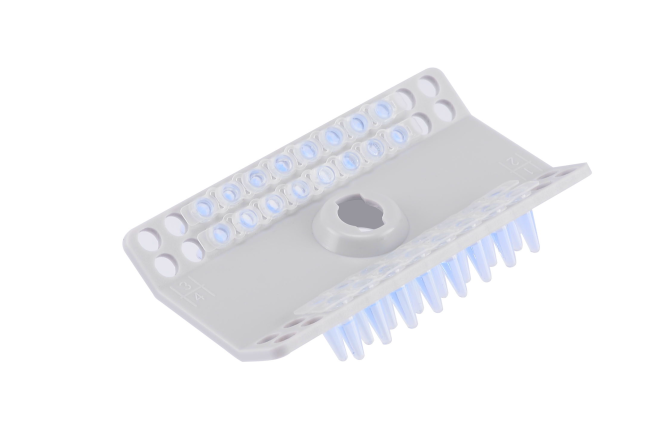

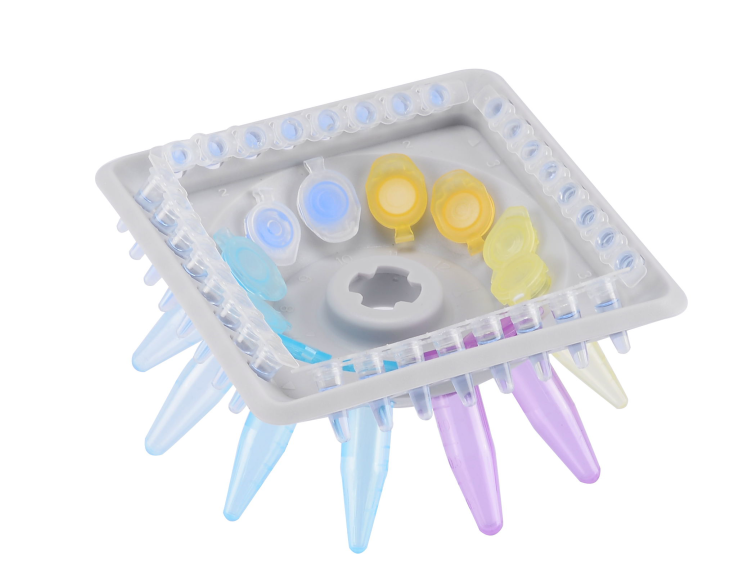

  4. Dual inner-and-outer ring structural design, it allows for the simultaneous centrifugation of 0.5/1.5/2 mL centrifuge tubes + PCR 8-strip tubes/ individual PCR tubes.

  5. Sleek, minimalist design, Mini Centrifuge is exquisitely crafted, lightweight, and highly portable, enabling efficient centrifugation operations anytime, anywhere.

  6. Suitable for micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.

Mini Centrifuges Specifications:


ModelCFG-12MCFG-12MI
Speed (rpm)500–12000 (500 rpm steps)2000–10000 (1000 rpm steps)
Max. RCF9660×g6708×g for 1.5/2 mL;
6596–7490×g for PCR 8-strips;
Capacity0.2 mL×48 PCR tubes0.2 mL×44 PCR tubes
1.5/2 mL×12+0.2 mL PCR 8-strips×40.5/1.5/2 mL×12+0.2 mL PCR 8-strips×4
DisplayLCDOLED
Run Time1–99 min/1–59 s10 s to 20 min
Fastest Acceleration/Deceleration Time≤12 s/≤16 s-
Acceleration/Deceleration-1↑/2↓
MotorDC motor
Power Supply220V, 50/60 Hz, 45 W100–240 V, 50/60 Hz, 40 W
Noise Level (dB)≤47≤58
External Size (W×D×H)(mm)194×229×120210×180×130
Shipping Size (W×D×H)(mm)330×330×180300×240×220
N.W./G.W. (kg)2/2.51.5/2.5
