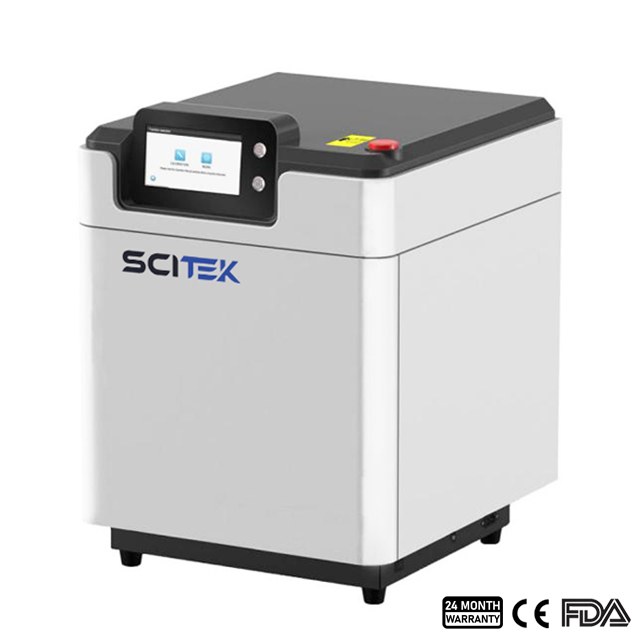

Microwave Digestion System, 6/8/10/12 Vessel

Model : MDS-T6; MDS-T8; MDS-T10; MDS-T12

Microwave Leakage : <5mw/cm2
Temperature Accuracy : ±0.1℃
Temperature Controlling Range : 50~400℃
Rotation : 360° Continuous Rotating
Size(W×D×H)(mm) : 560x490x630 (Main device)

Availability:
Quantity:
Inquiry Add to Inquiry List

Microwave Digestion System Specifications:

·Model MDS-T6 MDS-T8 MDS-T10 MDS-T12
Vessel Quantity 6 8 10 12
Temperature
Monitoring System		 Temperature Monitoring Contactless IR Sensor；Scan monitoring for each vessel
Temperature Controlling Range 50~400℃
Temperature Accuracy ±0.1℃
Display Accuracy ±0.1℃
Pressure Monitoring System Pressure monitoring Contactless Sensor; Scan monitoring for each vessel
Pressure Controlling Range 0~15MPa
Pressure Accuracy ±0.01MPa
Display Accuracy ±0.01MPa
Vessel Volume 100ml
Sample Vessel Material Imported TFM
Protection Vessel Material Peek+Glass Fiber
Display 7 inch Touch Screen
Rotation 360° Continuous Rotating
Microwave Tank 316L Stainless Steel tank With Corrosion-Proof Coating
Power Supply AC 220V±10%,  50/60Hz
Microwave Power 0-1000W (Adjustable)
Microwave Leakage <5mw/cm2
Air Exhaust High Power Corrosion-Proof Air Blower
Sizes(W×D×H)(mm)
 560x490x630(Main device)
Shipping Size (W×D×H)(mm)
 710x640x880(Main device)；410x400x300(Accessories) 710x640x880(Main device)；
500x440x320(Accessories)
N.W./G.W. (kg) 47kg(Main device) + 8kg(Accessories)
/72kg(Main device) + 11kg(Accessories)		 47kg(Main device) + 9kg(Accessories)
/72kg(Main device) + 12kg(Accessories)		 47kg(Main device) + 11kg(Accessories)
/73kg(Main device) + 14kg(Accessories)		 47kg(Main device) + 12kg(Accessories)
/75kg(Main device) + 15kg(Accessories)

Microwave Digestion System Feature:

MDS-T series is a new series of microwave digestion system.

It is newly designed and fully upgraded with higher performance and safer protection system.The smart design and perfect performance make it warmly welcomed by users worldwide.


  1. Optional vessel quantity, up to 12 vessels to meet different digestion requirements.

  2. Vertical design for even distribution of microwave.

  3. Real-time monitoring for both temperature and pressure of each vessel.

  4. Contactless sensor monitoring with no burst disk design saves consumables cost and maintenance cost.

  5. Imported vessel material for both sample vessel and protection vessel highly ensures safety.

  6. 7 inch color Touch screen with user-friendly Interface for easy operation.

  7. Imported CFRP outer shell material with high strength ensures impact resistance.

  8. Pre-Installed general standard methods, users can also create, save, modify and delete the method.

  9. 316L industrial stainless steel cavity with multilayer teflon coating avoids acid corrosion, also improves cooling efficiency.

Microwave Digestion System Detail Show:

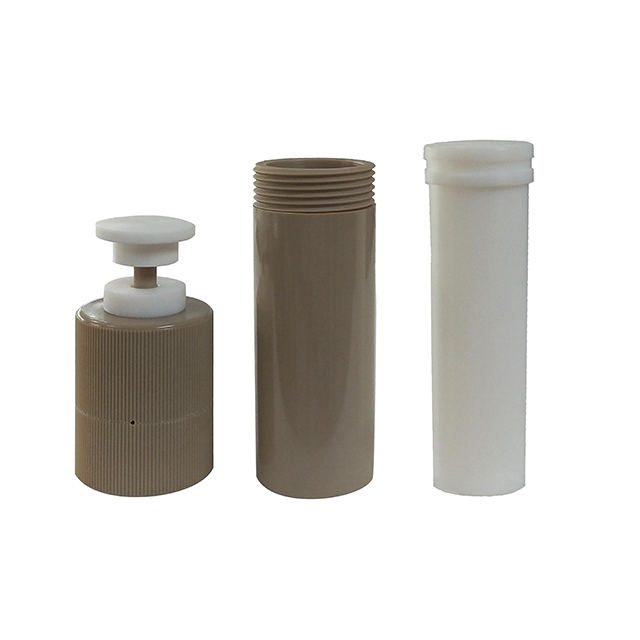

Vessel Structure

Microwave Digestion Vessel Structure

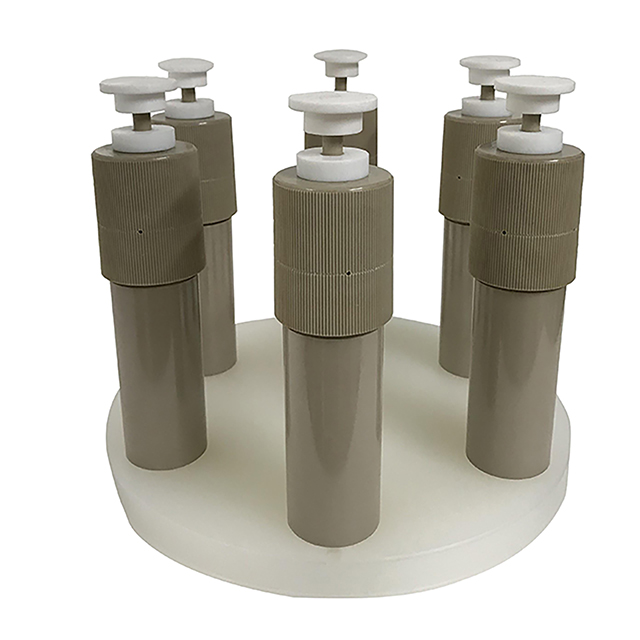

MDS-T6 Inner Structure

MDS-T6 Inner Structure

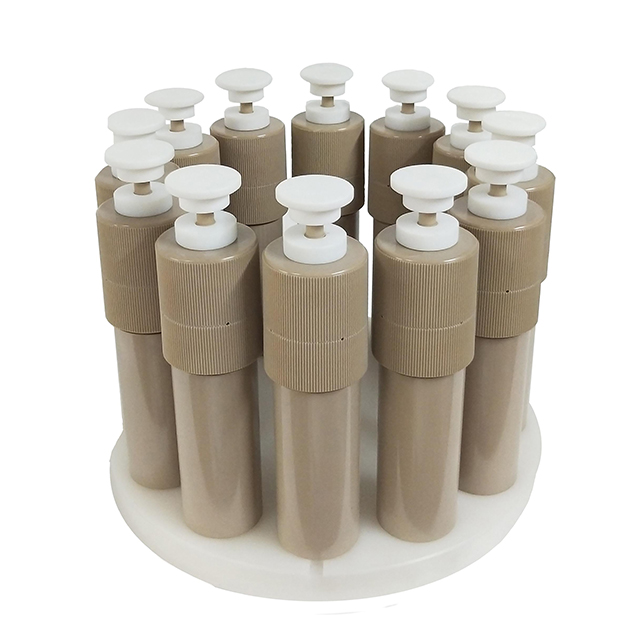

MDS-T12 Inner Structure

MDS-T12 Inner Structure
