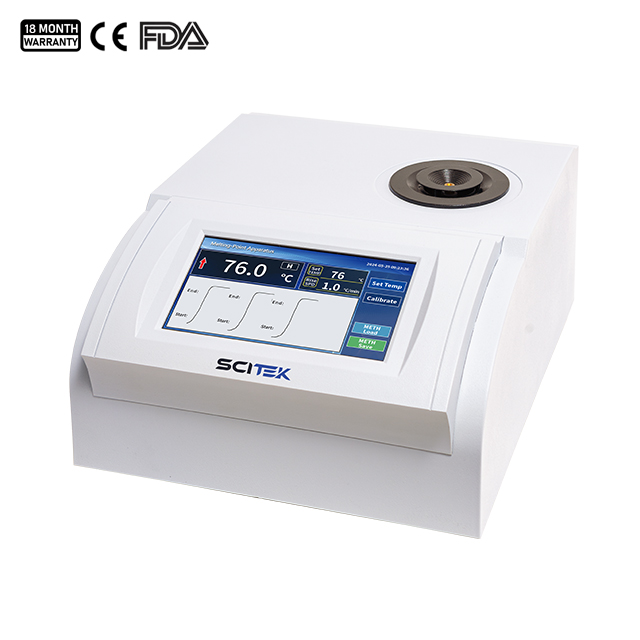

Melting-Point Apparatus

Model : MPA-2C; MPA-2A; MPA-1C; MPA-1B

Capillary position capacity : 3; 1
Height of sample : 3mm
Display : 7-inch color LCD display screen
Pre-stored measurement mode : 8

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Melting point apparatus occupies an important position in the chemical industry and medical research. It is an essential instrument for the production of food, medicine, spices, dyes and other organic crystal substances.

Melting Point Apparatus Features:

To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
Use PID & PWM to control the temperature.
Automatically records the melting curve.
Calculate average value of initial and final melting points automatically.
Equipped with clock function.
Touch Screen, can connect to a computer for data transferring.

Melting Point Apparatus Specifications:

Model	MPA-2C	MPA-2A	MPA-1C	MPA-1B
Capillary size	Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm
Capillary position capacity	3		1
Height of sample	3mm
Display	7-inch color LCD display screen
Pre-stored measurement mode	8
Temperature range	RT ~ 360 ℃	RT ~ 300 ℃	RT ~ 400 ℃	RT ~ 320 ℃
Resolution	0.1 ℃
Linear heating-up rate	Any continuous options within 0.1℃/min~20℃/min
Accuracy	≤200℃ ±0.4℃; ＞200℃ ±0.7℃
Repeatability	0.3℃ (heating rate: 1.0℃/min)
Linear heating rate error	±10%
Measuring mode	Auto
Data storage	1000 set	/	1000 set	/
Communication ports	RS232, USB
Printer (Thermal)	Standard	/	Optional	Optional
Power Supply	100~240 V, 50/60 Hz
Overall Size(WxDxH)(mm)	360×290×170
Shipping Size(WxDxH)(mm)	580×445×320	500×445×330
N.W/G.W(kg)	5/13	5/11

Model	MPA-2C	MPA-2A	MPA-1C	MPA-1B
Capillary size	Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm
Capillary position capacity	3	1
Height of sample	3mm
Display	7-inch color LCD display screen
Pre-stored measurement mode	8
Temperature range	RT ~ 360 ℃	RT ~ 300 ℃	RT ~ 400 ℃	RT ~ 320 ℃
Resolution	0.1 ℃
Linear heating-up rate	Any continuous options within 0.1℃/min~20℃/min
Accuracy	≤200℃ ±0.4℃; ＞200℃ ±0.7℃
Repeatability	0.3℃ (heating rate: 1.0℃/min)
Linear heating rate error	±10%
Measuring mode	Auto
Data storage	1000 set	/	1000 set	/
Communication ports	RS232, USB
Printer (Thermal)	Standard	/	Optional	Optional
Power Supply	100~240 V, 50/60 Hz
Overall Size(WxDxH)(mm)	360×290×170
Shipping Size(WxDxH)(mm)	580×445×320	500×445×330
N.W/G.W(kg)	5/13	5/11

Manual Melting Point Apparatus

Semi-automatic Melting Point Apparatus

Automatic Melting Point Apparatus, Touch Screen
