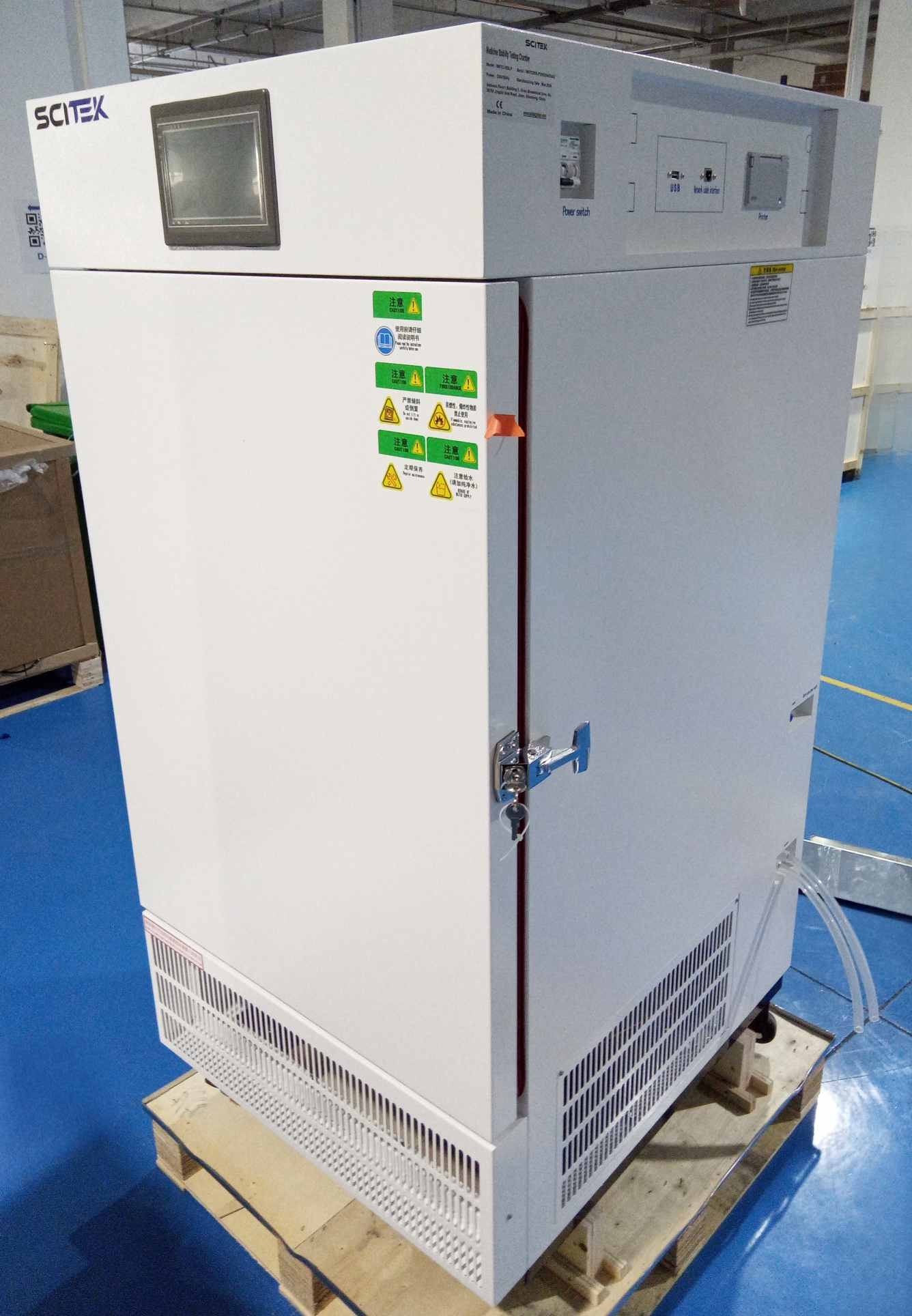

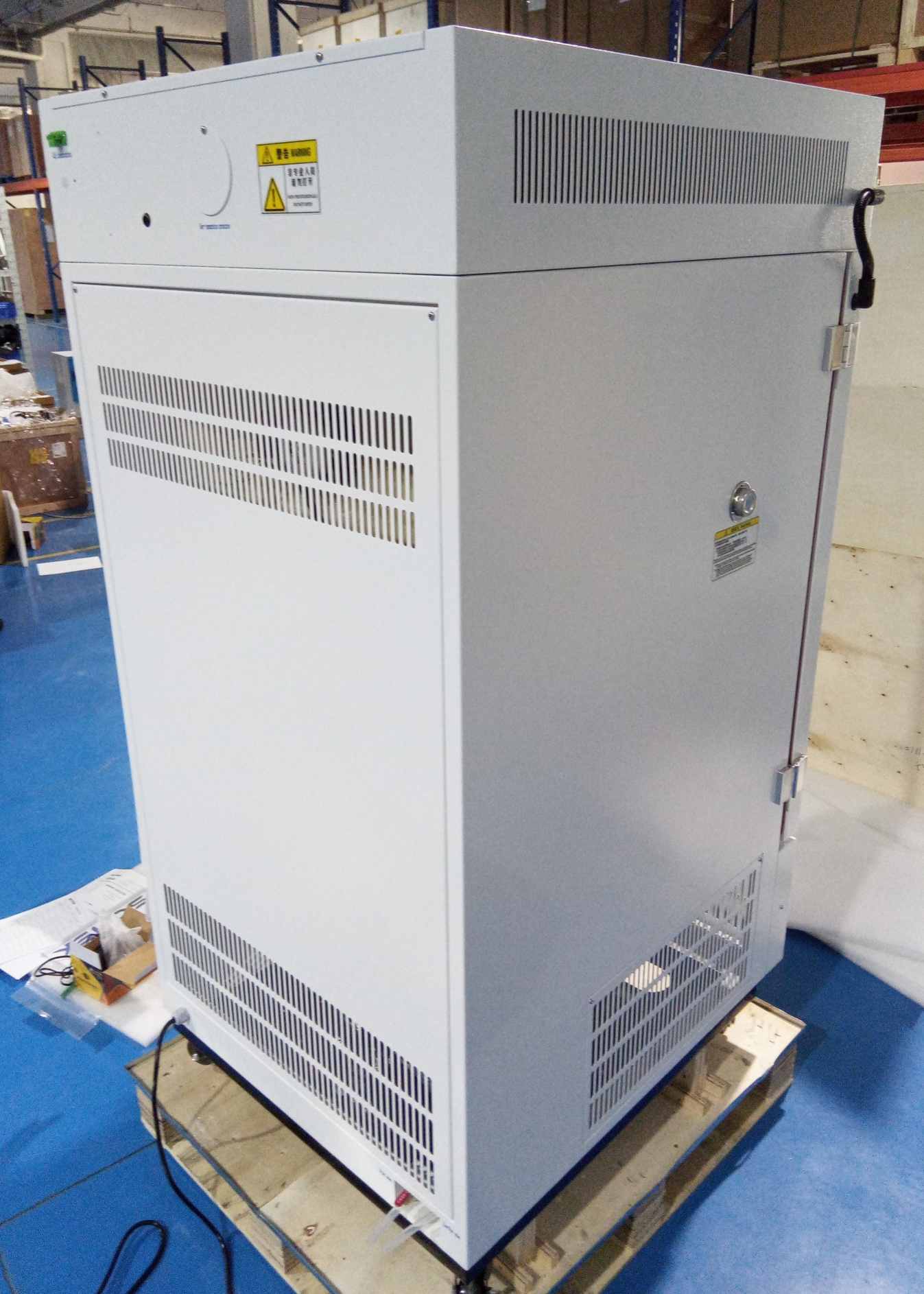

Medicine Stability Test Chamber Application:
Program-controlled with variable frequency drive (VFD) technology, this equipment significantly reduces water and power consumption while delivering precise temperature and humidity control. It fully meets the test conditions for stability studies (including accelerated, long-term, high-temperature, and high-humidity tests). Built with premium imported components, it ensures reliable performance and stable, long-term continuous operation. Complies with ICHQ1 and CP2025 standards and meet audit trail requirements.
MSTC-LP series Medicine Stability Test Chamber utilizing Variable Frequency Drive (VFD) adaptive control technology, it achieves 50% greater energy efficiency compared to traditional fixed-frequency models. Complies with the ICH Q1A stability testing guidelines and supports audit trail and electronic data integrity requirements.
Medicine Stability Test Chamber Feature:
7-inch color touchscreen displaying the real-time dynamic ratio of the variable-frequency output frequency.
3-level access control and comprehensive audit trail logs to ensure data integrity.
Advanced airflow circulation system ensuring excellent temperature and humidity uniformity throughout the chamber.
Imported Panasonic Inverter Hermetic compressor for high-efficiency cooling and superior energy savings.
European-imported integrated temperature and humidity sensor offering high sensitivity and maintenance-free operation.

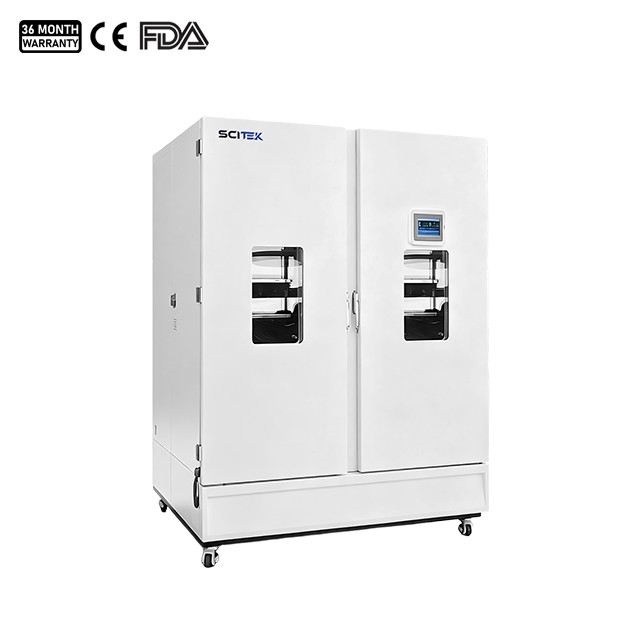

Double-door design featuring an outer light-shielding door and an inner heated, anti-fog tempered glass door for clear, unobstructed viewing (only for MSTC-3000LP).
Built-in high-capacity storage chip records over five years of temperature and humidity data, with one-touch USB export capability.
Standard features include a GMP-compliant buzzer alarm, a GMP-compliant data acquisition system, and a micro-dot-matrix printer (supporting real-time or scheduled printing).
Exterior constructed from high-quality powder-coated steel, offering corrosion and scratch resistance.

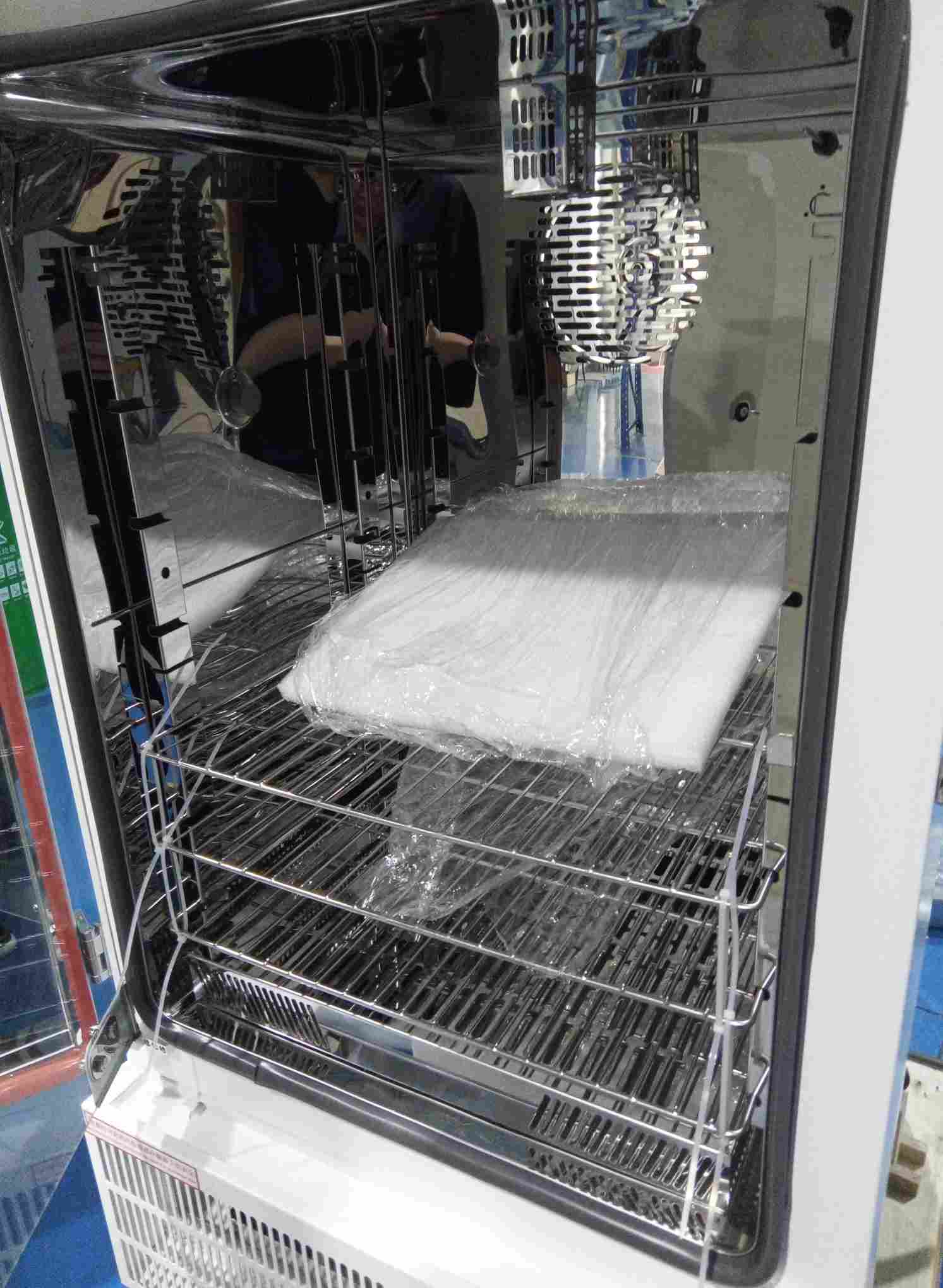

Interior chamber made of mirror-finish SUS304 stainless steel with rounded corners to eliminate dead zones, making cleaning and maintenance effortless.
Audible and visual alarms for temperature/humidity deviations, plus independent over-temperature protection (automatic power cutoff).
Protections include compressor overheat/overpressure/overload protection, fan overheat protection, and a dual-circuit dry-run prevention system.
Medicine Stability Test Chamber Specification:

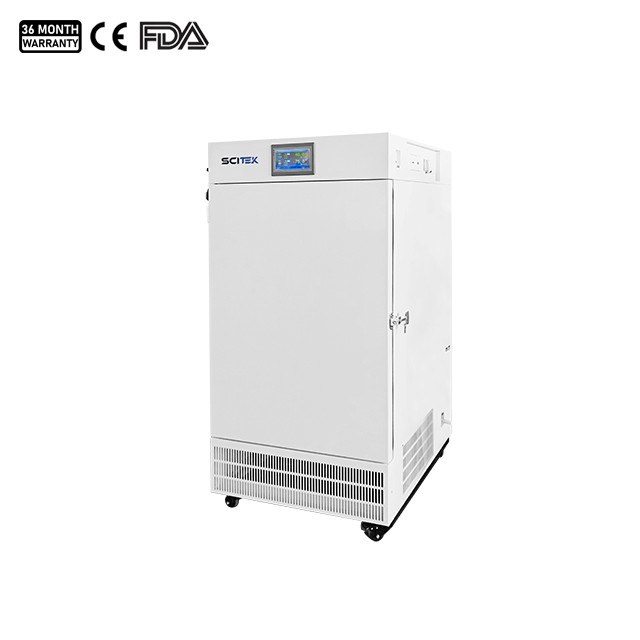

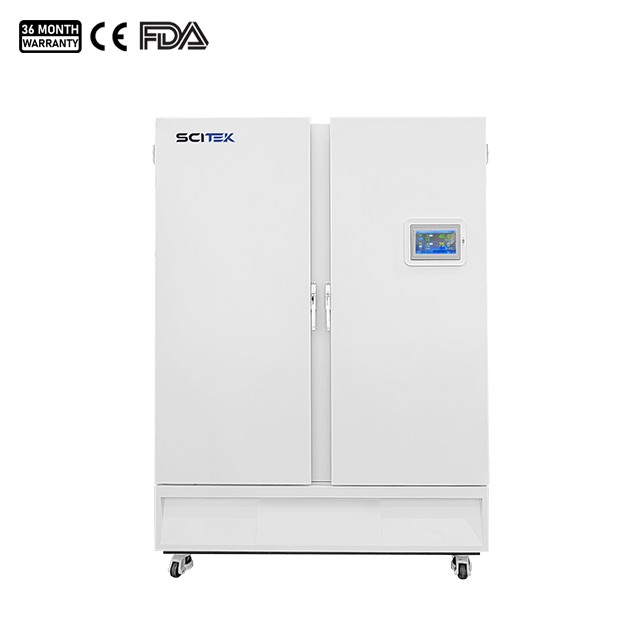

Model | MSTC-150LP | MSTC-250LP | MSTC-400LP | MSTC-500LP | MSTC-800LP | MSTC-1000LP | MSTC-1500LP | MSTC-2000LP | MSTC-3000LP |
|---|
Display | 7" touchscreen |
Circulation Mode | Forced convection |
Capacity (L) | 150 | 250 | 400 | 500 | 800 | 1000 | 1500 | 2000 | 3000 |
Shelves (Standard) | 3/6 | 3/7 | 3/10 | 4/11 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
Internal Size (W×D×H)(mm) | 600×405×620 | 600×500×830 | 600×700×950 | 680×680×1080 | 1200×490×1360 | 1400×510×1400 | 1500×710×1400 | 1500×970×1400 | 1600×1050×1680 |
Timer | 0–32000 h or continuous operation |
Compressor | Panasonic Inverter Hermetic Compressor ( ≥50% energy saving) |
Temp. Range | 10–65°C |
Temp. Uniformity | ±1°C |
Temp. Fluctuation | ±0.5°C |
Temp. Resolution | 0.1°C |
Humidity Range | 15%–95%RH |
Humidity Fluctuation | ±2%RH |
Humidity Uniformity | ±3%RH |
Humidity Control Accuracy | ±0.1%RH |
Control Manner | Temperature and humidity balance Control |
Interface | USB, Ethernet RJ45 (network) |
Refrigerant | R134a | R410a |
Power Supply | AC 110/220V, 50/60Hz |
Consumption (kW) | 1.5 | 1.8 | 2 | 2.2 | 2.5 | 3 | 3.2 | 3.5 | 3.8 |
External Size (W×D×H)(mm) | 760×830×1480 | 760×880×1650 | 760×1060×1750 | 850×1050×1850 | 1360×880×1960 | 1560×890×1980 | 1670×1130×1990 | 1670×1340×1990 | 1750×1470×2250 |

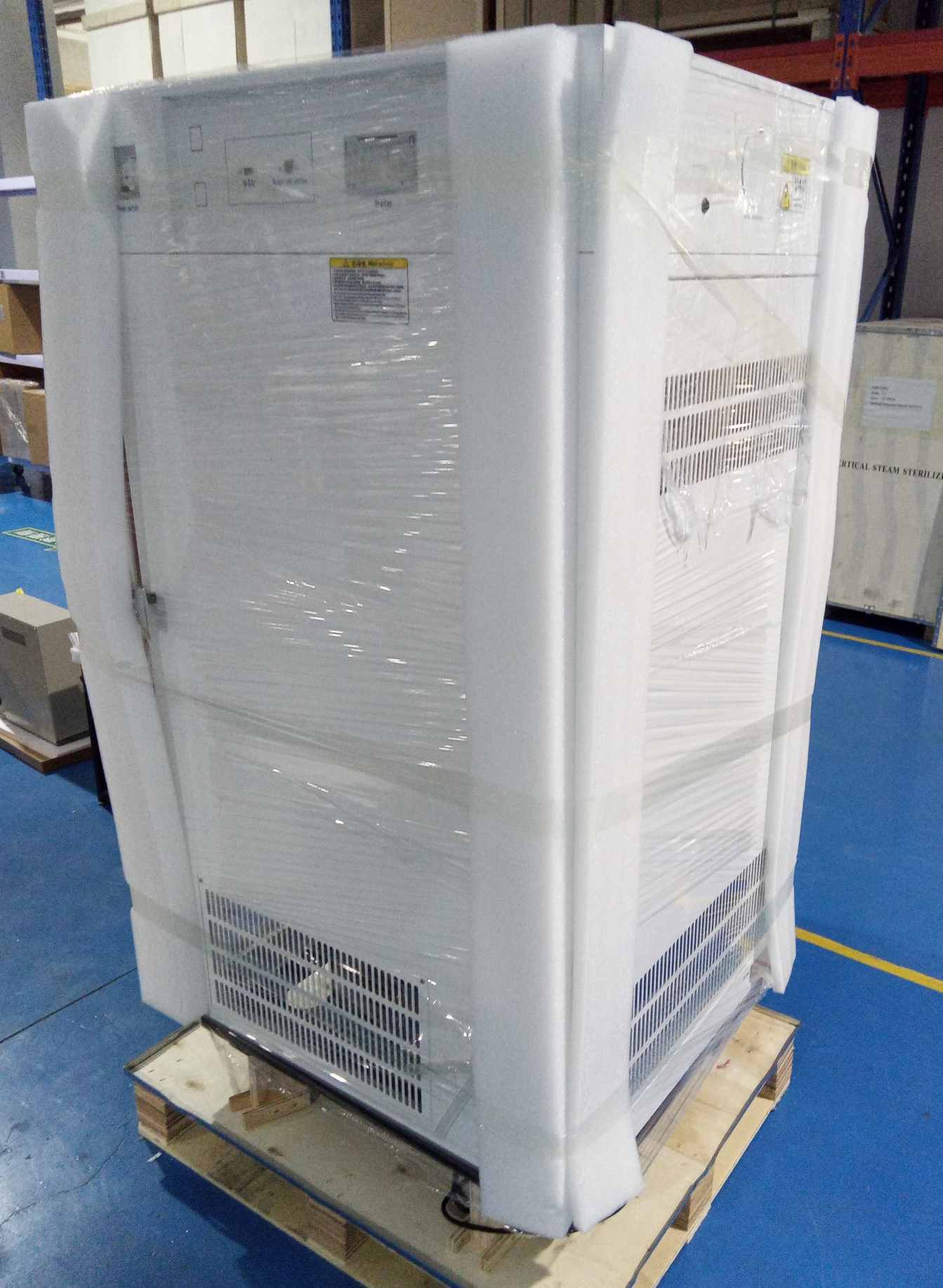

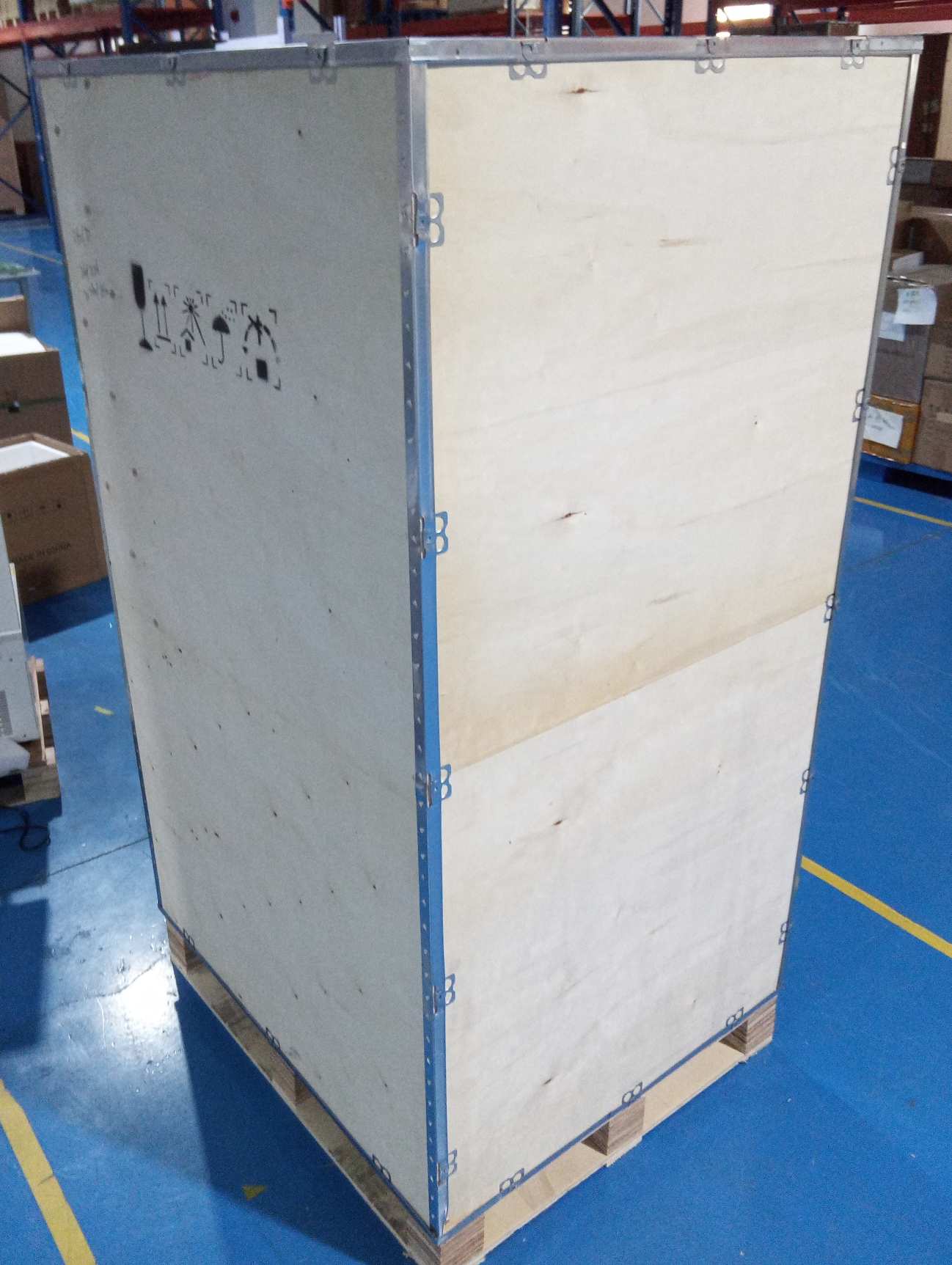

Shipping Size (W×D×H)(mm) | 870×850×1570 | 980×850×1770 | 840×1150×1920 | 1140×930×2050 | 1430×970×2100 | 1620×980×2150 | 1730×1220×2140 | 1730×1430×2160 | 1870×1820×2250 |
G.W.(kg) | 185 | 213 | 250 | 300 | 395 | 460 | 569 | 662 | 800 |
