Medical Water Purifier Specifications:
| Model | WP-HD100M | WP-HD150M | WP-HD200M | WP-HD300M | WP-HD500M | WP-HD1000M | WP-HD1500M | WP-HD2000M |
| Water Output | 100L/H | 150L/H | 200L/H | 300L/H | 500L/H | 1000L/H | 1500L/H | 2000L/H |
| Water Quality (Conductivity) | ≤ 15us/cm |
| System Recycle Rate | ≥60% |
| Endotoxin, Bacteria | Removal rate ≥99.9% |
| Sterilization Method | Ozone disinfection, UV disinfection. |
| Water Inlet Requirements | City tap water, water inlet is DN20Pressure: 0.2MPa~0.5Mpa |
| Inlet Water Temperature | 5-35℃ |
| Working Environment | 5-35℃ |
| Relative Humidity | ≤80%RH |
| Water Inlet Requirements | Municipal water supply |
| Power Supply | 220±10% V, 50 Hz |
|
| Consumption | 0.5KW | 2KW | 2KW | 3KW | 4KW | 5KW | 5KW | 6KW |
| External Size (W×D×H)(mm) | 690x690x1470 | 690x690x1470 | 690x690x1470 | 1100x680x740; 1100x700x1420 | 1420x680x1200; 1100x700x1420 | 1660x790x1250 | 1900x790x1250 | 1660x800x1700;
1300x800x2010 |
Note:
1. HD100M/150M/200M are injection molding.
Medical Water Purifier Feature:
The control system is programmed based on Mitsubishi program, with a simple programming structure and centralized central control. The medical water purifier system uses hardware for automatic control and displays the status of various processes.
The touch screen has one-touch start and stop functions. The one-touch start function can be turned off when maintenance personnel leave in the evening, making it convenient for on-site maintenance personnel.
It has both automatic and manual control modes, with fault recognition, voltage safety, overload protection, automatic protection, and alarm functions. In the event of local problems, the system will automatically shut down.
The water quality of the produced water is displayed in real-time, making it intuitive.
It uses non-polluting UPVC materials.
The medical water purifier has low energy consumption, effectively saving energy, operates reliably, with the water supply pipeline closed, and stable water quality in the outlet.

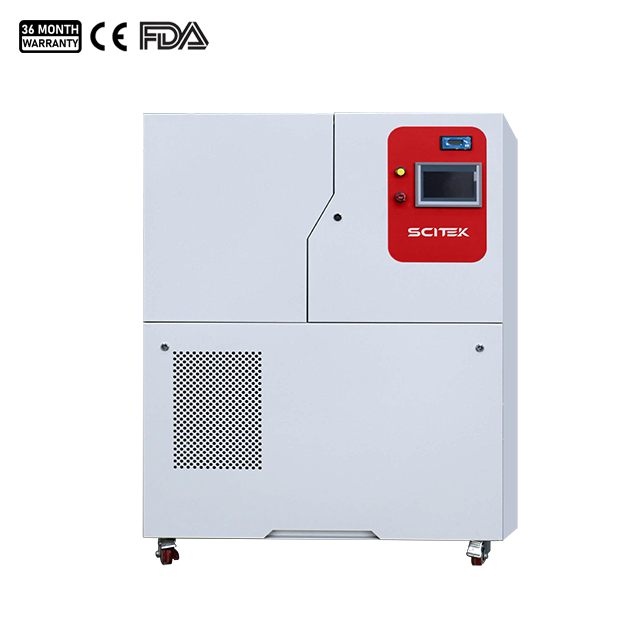

Details of Medical Water Purifier(WP-HD500M):
The medical water purifier system has a compact structure, occupying a small area, effectively saving space, and is designed to be simple, reliable, and convenient. Even without programming experience, the equipment can be controlled to start and stop.
The medical water purifier uses standardized, universal, and systematic components, making it easy to disassemble, replace, and clean parts.
The consumables have a long lifespan, low cost of water production, and can run automatically continuously.
