Mechanical CPR Device Application:
Deliver mechanical CPR life support in pre-hospital emergency care, in-hospital emergency care, and emergency transport. Going beyond human capabilities, provide standardized, continuous, and efficient chest compression, assisting medical staff and improving the success rate of treatment in critical moments.
Mechanical CPR Device Feature:
Electric and electrically controlled, it can be used directly without an external air or power source, making deployment more flexible.
3.5-inch high-definition touchscreen displays information on a single screen, allowing for intuitive and quick touch operation settings.
Intelligent compression: The side-wall suction cup compression structure effectively achieves chest compression and traction.
Slow-start design: Compression depth increases progressively, effectively preventing sternal fractures.
Built-in Bluetooth and Wi-Fi modules support wireless connection to a mobile app, allowing for the recording, storage, and review of treatment data. Reports can be exported or printed via the app after an emergency.
Optional data gateway securely connects device data to the hospital's emergency information system.
Lightweight and durable, the main unit weighs ≤8 kg, and a single charge provides ≥60 minutes of continuous use.
Mechanical CPR Device Specification:

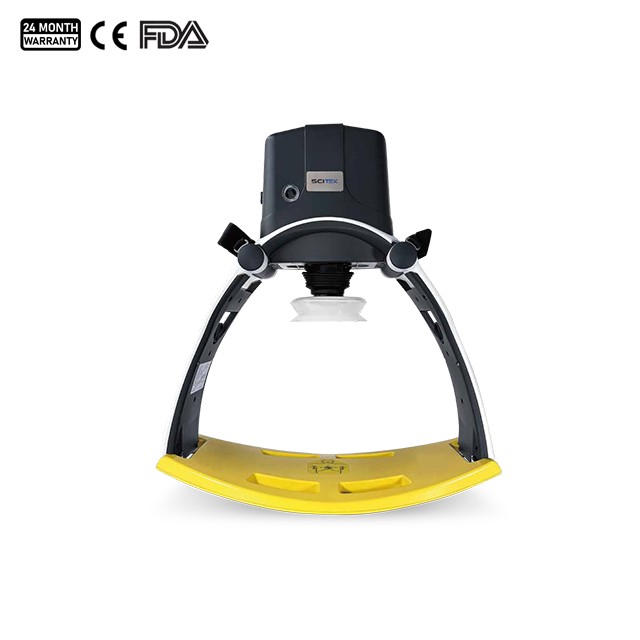

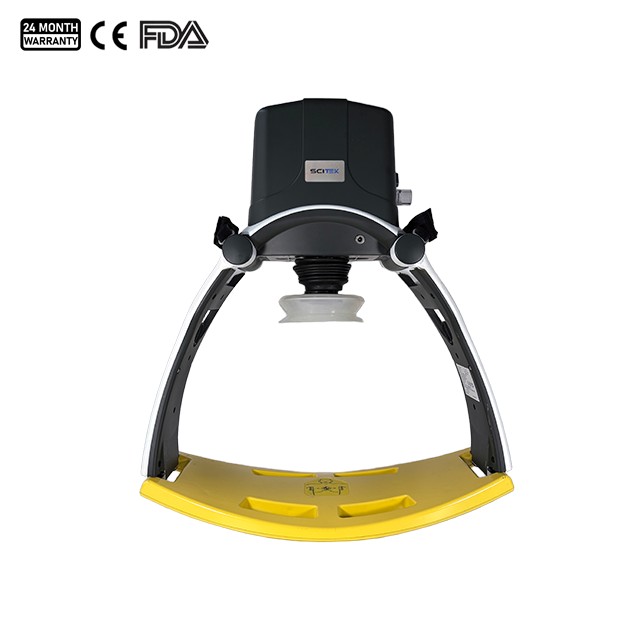

Model | CPR-EC20 | CPR-EV20 |
|---|
Compression Mode | Continuous compression mode |
Compression with Breathing (30:2, 30 compression with 3-second pause for ventilation) |
Compression Depth | 3–6 cm (1.18–2.36 inch) adjustable |
Compression Frequency | 100 bpm |
Compression Duty Cycle | 1:1 (50%±5%) |
Tidal Volume | / | 400/500/600 mL adjustable |
Waterproof Rating | IP44 |
Battery Runtime | Min.60 minutes (per charge) |
Power Supply | DC 12–24V Input, Built-in 22.2V Li-ion Battery |
Consumption | 86 W |
External Size (W×D×H) | 520×240×580 mm |
Shipping Size (W×D×H) | 680×410×360 mm |
N.W./G.W. (kg) | 8/12 | 8/12.84 |
Permissible Ambient Temperature & Humidity | 5–40 ℃, 80% RH |
