Laboratory Ultrapure Water Purifier

Model : WP-POS10U/20U/30U; WP-EOS10U; WP-TOS10U; WP-SOS10U

Ion Rejection Rate : 97%-99% (when using a new RO membrane)
Organic Matter Rejection Rate : >99% (when MW>200 Dalton)
Particle and Bacterial Rejection : > 99%
Instrument Size (W×D×H)(mm) : 312x475x475
Processes up to 720 litres of ultrapure water per day, increasing the functionality and economy of high purity water production.
Availability:
Quantity:
Inquiry Add to Inquiry List

Water Purification System Process:

Filtration System Process

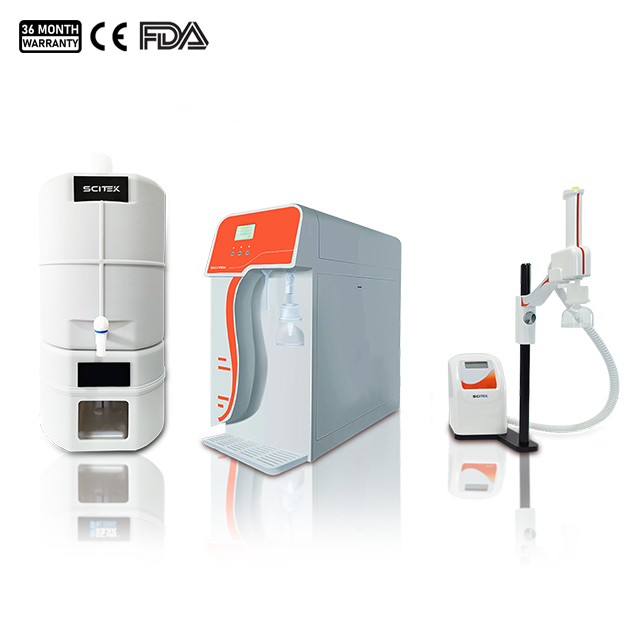

Components of the water purifier:

WP-POS10U

Main Machine

WP-POS10U-1

Optional Sterile water tank

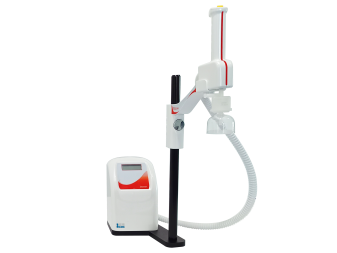

WP-POS10U-2

Optional Water collection arm

Laboratory Ultrapure Water Purifier Specifications:

Model WP-POS10U WP-EOS10U WP-TOS10U WP-SOS10U
WP-POS20U WP-EOS20U WP-TOS20U WP-SOS20U
WP-POS30U WP-EOS30U WP-TOS30U WP-SOS30U
Model Features Basic Added UF heat removal column Added UV germicidal lamp Added UV sterilizer lamp and heat source removal column
Water Output (L/H) 10/20/30 10/20/30 10/20/30 10/20/30
Water Quality Monitoring One-way water quality monitoring (UP water resistivity)
Ion Rejection Rate 97%-99% (when using a new RO membrane)
Organic Matter Rejection Rate >99% (when MW>200 Dalton)
Particle and Bacterial Rejection > 99%
Application Clean glassware
UP water Parameter (ASTM TYPE I grade water)
Resistivity (25℃) 18.25 M Ω. Cm @ 25 ℃
Heavy Metal Ion < 0.01 ppb
Total Organic Carbon (TOC) <10 ppb <3 ppb
bacteria < 1 cfu/ml (Use pressure water tank)
< 0.01 cfu/ml (Use Sterile water tank)
Particulate Matter (> 0.22 μm) <1/ml
Pyrogen (Endotoxin) N/A < 0.001 Eu/ml N/A < 0.001 Eu/ml
RNases N/A <1pg/ml N/A <1pg/ml
DNases N/A <5pg/ml N/A <5pg/ml
Electrical Requirements 100V-240/50-60Hz, 48-72W
Standard Accessories 1. Main Machine (including 1 set of purification column)
2. 12L external pressure water tank
3. TDS pen
4. Accessory bag
Optional Accessories 1. Sterile water tank
2. Water collection arm
3. Silicon removal device
4. Boron removal device
Instrument Size (W×D×H)(mm) 312x475x475
Shipping Size (W×D×H)(mm) 620x640x680
N.W./G.W. (kg) 30/40

Laboratory Ultrapure Water Purifier Features:

  1. Complete RO & UP water preparation, circulation system, and sterilization management functions.

  2. Water purification system is equipped with a portable TDS pen, you can test TDS content, conductivity, and water temperature anytime and anywhere.

  3. Automatic program for RO membrane anti-scaling flushing, automatic shutdown of tap water, automatic water cut-off, automatic water supply of water storage barrel, and automatic shutdown of water storage tank.

  4. Low voltage 24VDC is used as the main power supply, which complies with safety regulations and meets the requirements of humid environments without causing personal injury.

  5. Front and rear door design, filter element replacement is quick and convenient, and filter element replacement can be easily completed without the help of any tools.

  6. ABS engineering plastic shell, powder spraying process, with water quality and water volume upgrade function, self-priming door.

  7. LCD display, touch buttons, two water qualities, ready to use.

  8. One-way water quality monitoring (UP water resistivity)

Laboratory Ultrapure Water Purifier Application:

  1. WP-P: All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment

  2. WP-E: High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute

  3. WP-T: Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

  4. WP-S: Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing
