Laboratory Balance Q&A Guide

Whether in pharmaceutical manufacturing or laboratory research, precise measurement is essential. Understanding the types of laboratory balances, how to use them correctly, and calibration procedures will help you select the right equipment.

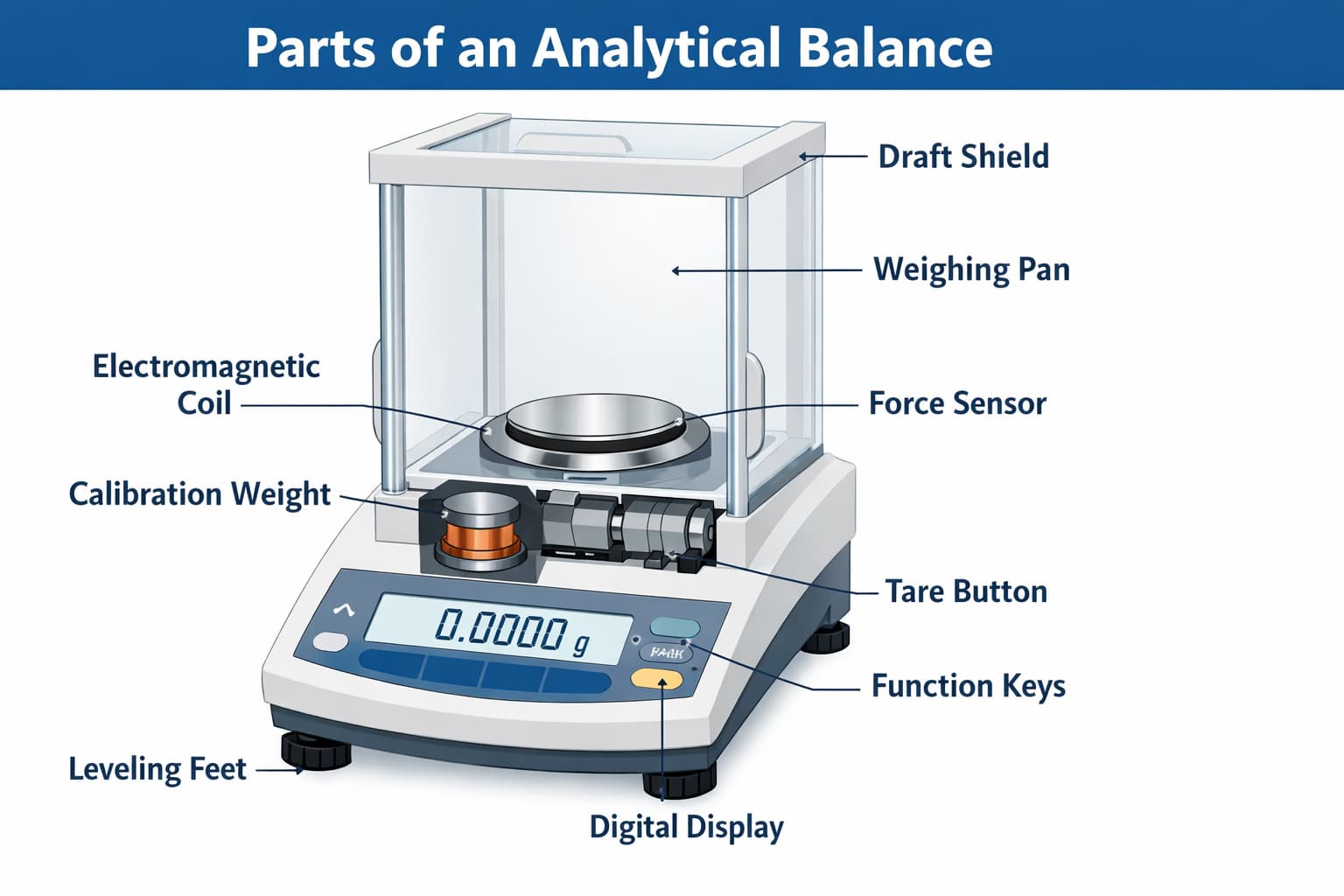

How Laboratory Balances Work

The operating principle of a balance is electromagnetic force restoration. Essentially, it uses electromagnetic force to “counteract” weight in order to measure mass. When an object is placed on the balance, its own weight causes the sensor to shift. At this point, an electromagnetic coil generates a counteracting force to maintain equilibrium. The resulting current is then converted into the mass of the object.

The Most Common Types of Balances

Laboratory balances vary greatly in design and functionality, offering a wide range of options to meet different application needs. Different types of laboratory balances can generally be categorized as follows:

1. Analytical Balances

   Best suited for: Differential weighing, pipette calibration, and density measurement.
   Readability: Accuracy ranging from 0.00001 g to 0.001 g.
   Capacity: 1 g to 500 g.
   Features: Ideal for applications requiring extremely high precision; must be used with a draft shield.

2. Precision Balances

   Best suited for: GMP compliance, sample management, and dynamic weighing.
   Readability: 0.001 g to 1 g.
   Capacity: 1 g to 70,000 g.
   Features: Suitable for laboratory, quality control, and production environments.

3. Microbalance

   Best suited for: Pesticide analysis, powder and particulate research, etc.
   Readability: 1 µg to 0.00001 g.
   Capacity: 0 g to 50 g.
   Features: Designed for the precise quantification of trace samples in controlled environments, such as measuring powders or very small volumes of liquid.

In addition, balances can be categorized into two types based on their calibration method. Internal vs. External Calibration:

The choice between internal and external calibration depends on accuracy requirements, frequency of use, budget, and laboratory workflows. Internal calibration is better suited for high-precision applications. For high-frequency use, internal calibration is recommended to improve efficiency. Budget considerations and compatibility with existing workflows should also be evaluated.

1. Internal Calibration

   Definition: These balances use internal motorized calibration weights to automatically calibrate the instrument under specific conditions.

   Features:

   One-button or automatic triggering for convenient operation
   No external weights required
   Reduces downtime and maintains stable accuracy
   Minimizes human error
   Higher upfront costs
   Limited user control over the calibration process

   Suitable Applications:

   High-precision experiments (e.g., analytical balances)
   Frequent calibration requirements (pharmaceutical, QC laboratories)

2. External Calibration

   Definition: Calibration using external standard weights. Place the weights on the weighing pan and compare the balance’s reading with the known weight value

   Features:

   Requires manual operation
   Relies on high-grade standard weights (e.g., Class E2/F1)
   Calibration results offer greater traceability
   Lower cost (for the equipment itself)
   Improper calibration procedures are time-consuming and prone to errors

   Applicable scenarios:

   Strict compliance requirements (ISO / GLP / GMP)
   Third-party metrological calibration
   Precision balances or basic applications

What is balance calibration? Why is calibration necessary?

Balance calibration is the process of comparing and adjusting a balance’s measurement results against standard weights of known mass to ensure accurate and reliable readings. If calibration is performed incorrectly, subsequent weighings will be meaningless.

Balance calibration is essential for obtaining accurate results. Over time, balances experience drift and wear, causing their accuracy to decline. These factors can lead to measurement errors. It is irresponsible to use an uncalibrated balance for measurements. Calibration corrects these errors and ensures measurement accuracy.

What are the benefits of balance calibration?

Cost savings: Calibrated balances provide reliable data support for experiments or production. They help avoid rework or product disposal caused by inaccurate measurements, thereby reducing production costs.

Reliable measurement results: Calibrated balances deliver consistent measurement results under the same conditions. This consistency is essential for comparative tests and data analysis in laboratories.

Compliance: Calibration helps ensure smooth passage of internal and external audits.

Monitoring Balance Performance: All equipment degrades over time, and critical components may be subject to mechanical stress or wear. Regular calibration allows for the timely detection of performance changes.

Common Causes of Inaccurate Weighing Results

Advances in electronic technology have greatly simplified balance operation and reduced weighing time. Additionally, touchscreen digital displays make balance operation more intuitive.

However, this seemingly convenient method of operation may lead to neglect of various factors that affect weighing accuracy, thereby impacting analytical results. External influences refer to all physical effects measurable by laboratory balances. Examples of external influences include:

1. Improper calibration: This is a common cause of inaccurate weighing. Using certified weights can effectively prevent weighing errors.

2. Temperature fluctuations: Sudden changes in temperature can affect sensor response, thereby impacting the balance’s weighing accuracy. It is recommended to perform weighing in an environment maintained at approximately 25°C.

3. Effects of static electricity, magnetic fields, and air currents

4. Direct hand contact with the sample. Even minute amounts, such as fingerprints or dust on the hands, can alter the weighing results.

5. Improper handling, such as forcefully placing the sample

6. Highly reactive samples are extremely sensitive to atmospheric changes. Therefore, samples to be weighed should be kept chemically inert.

7. Factors that may interfere with the sample, such as drafts or the presence of a refrigerator near the balance

How to Use an Analytical Balance in the Laboratory

Preparations Before Weighing

1. Turn on the balance and let it warm up for 30 minutes to 1 hour.

2. Close the weighing chamber door to prevent air currents and dust from interfering.

3. Calibrate the balance using appropriate weights.

4. Adjust the leveling feet to ensure the balance is level.

5. Press the tare button to zero the balance.

6. Place the sample only after the reading has stabilized.

Weighing the Sample

1. Once the balance has been calibrated and is ready, you may proceed with weighing. To ensure accurate results, follow these steps:

2. Open the weighing chamber door.

3. Place the sample in the center of the weighing pan.

4. Close the weighing chamber door.

5. Read the data only after the reading has stabilized.

6. Record the weighing result.

Precautions for Using the Analytical Balance:

The analytical balance is a high-precision instrument and must be handled with care. Please observe the following points during use:

1. Avoid direct hand contact with the weighing pan or other components.

2. Do not breathe directly onto the balance to prevent airflow interference.

3. Use clean, dry weighing paper or a suitable container for weighing.

4. Never exceed the balance’s maximum capacity.

5. Avoid placing the balance near sources of vibration or in areas with airflow interference.

How to Choose a Laboratory Balance

0.1g Electronic Balance

Capacity : 1200g / 2000g / 3000g / 6000g / 10kg
Readability : 0.1g
Calibration : External Calibration
Scale Pan Size : 175x175mm
Optional RS232 interface and printer

0.01g Electronic Analytical Balance - External Calibration

Capacity : 600g / 1000g / 2000g
Readability : 0.01g
Calibration : External Calibration
Calibration Weight : 500g

0.001g Electronic Analytical Balance

Capacity : 100g / 200g / 300g / 500g
Readability : 0.001g
Calibration : External Calibration
Optional RS232 interface and printer

Capacity : 300 g
Resolution : 0.001 g
Min weighing : 0.004 g
Calibration Internal Calibration
Repeat ability : ±0.002 g

0.0001g Electronic Analytical Balance

Capacity(g) : 110 / 120 / 200 / 220
Readability(g) : 0.0001
Min Weighing(g) : 0.0004
Cal.Weight : Internal Calibration
Standard RS232 interface, Optional Printer

Capacity : 100g / 120g / 200g / 220g / 310g / 320g
Readability : 0.0001g
Calibration : External Calibration
Standard RS232 interface, Optional Printer

Semi-micro Analytical Balance

Capacity(g) : 51/120, 82/210, 120
Resolution(mg) : 0.01/0.1
Repeat Ability (≤)(mg) ±0.03/±0.1 ±0.05/±0.1
Standard RS232 interface,Optional Printer

Conclusion

Proper use of balances is essential for ensuring accurate and reliable measurement results. Every step—from installation and calibration to actual weighing and routine maintenance—directly affects the final accuracy. Adhering to standard operating procedures and performing regular maintenance not only improves work efficiency and reduces errors but also ensures consistency in results across different applications. Emphasizing proper operation not only enhances measurement quality but also extends the equipment’s service life and provides more reliable data to support experimental or production decisions.
