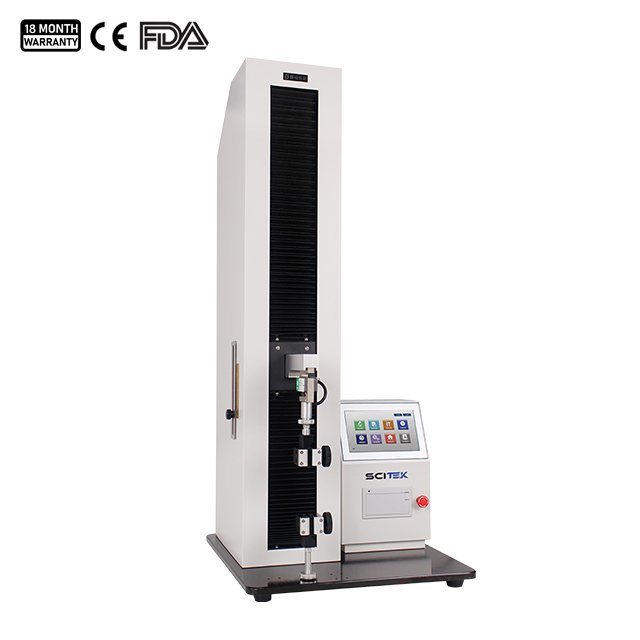

Our intelligent tensile tester ITT-500 is suitable for testing the elongation rate, peel force, deformation rate, heat seal strength, open force, tear resistance, puncture resistance, low speed unwinding force of plastic film, composite film, adhesive tape, medical patch, protection film, release paper, foil, non-woven, rubber, paper, etc. It is specialized in testing the mechanical properties of various flexible packaging materials.
Intelligent Tensile Tester Features:
7-inch touch interface, more convenient to operate.
Support diverse modes to meet various requirements.
Equipped with advanced sensor.
The screw driving system realizes the continuous adjustable speed.
Safety functions include limit protection, over-load protection, automatic reposition and power-down memory, ensure the safety of users and the instrument itself.
The curve of data synchronously shows the changing trend of force value during the test.
The records of data can be queried, audited and tracked.
Standard with micro-printer, easy to get paper-data.
Standard with USB interface .
Intelligent Tensile Tester Specifications:
| Model | ITT-500 |
| Test Range | 500 N (Standard, Celtron Transducer) |
| 50 N, 1000N (Optional, Celtron Transducer) |
| Accuracy | 0.5% FS |
| Resolution | 0.01N |
| Accuracy of Displacement | ±0.5% FS |
| Resolution of Displacement | 0.1mm |
| Test speed | 0 ~ 500mm/min (Adjustable) |
| Sample’s Width | 30mm (Standard); |
| 50mm (Optional) |
| Clamping Way | Manual |
| Travel | 600mm |
| Consumption | 100W |
| Power Supply | 220VAC, 50Hz/120VAC, 60Hz |
| Standard Configuration | Instrument, universal clamp, professional software, communication cable. |
| Optional Configuration | Standard roller, test plate, sample cutter, clamps for floating roller, low speed unwinding device, customized clamps. |
| External Size (WxDxH)(mm) | 450x450x1000 |
| Net. Weight / Gross Weight | 55kg/65kg |
| Package Size (WxDxH)(mm) | 600x600x1050 |
Standards:
This intelligent tensile tester conforms to many national and international standards: GB/T 13022, GB/T 8808, GB/T 1040, GB/T 4850, GB/T 7753, GB/T 7754, GB/T 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130.
Details of Intelligent Tensile Tester:
Application of Gas Permeability Tester:
This instrument is equipped with more than 100 grips for testing more than 1000 materials. And customization is also available for special material tests. Examples of instrument applications.
Basic Application:
| Tensile Property | Tensile Strength and Elongation Rate | Breaking Force |
| Tear Resistance | Heat Seal Strength Test | 90 Degree Peel Test,180 Degree Peel Test |
Application (Optional Accessories required)
| Puncture Test of Hypodermic Needles in Artificial Skin | Puncture Test of Films |
| Puncture Test of Infusion Bags | Puncture/Pullout Test of Flexible Rubber Closures |
| Opening Resistance Test of Combined Covers | Tear Test of ZD - Type Caps |
| Opening Force Test of Oral Liquid Caps | Puncture/Pullout Test of Oral Liquid Caps |
| 90 Degree Pullout Test of Infusion Bag Caps | Pullout Test of Infusion Bag Caps |
| 23 Degree Pullout Test of Bottle Caps | Puncture/Pullout Test of Bottle Caps or Rubber Closures |
| 90 Degree Peel Test of Adhesive Tapes | Tear Resistance Test of Adhesive Binding Books |
| 90 Degree Peel Test of Water-soluble Plasters | Tear Resistance Test of Adhesives |
| Adhesive Strength Test (soft) | Adhesive Strength Test (hard) |
| Peel Test of Flexible Tube Caps | Removal Force of Pipes and Pipe Joints |
| Pullout Test of Cosmetic Brush Hair | Pullout Test of Tooth Brush Hair |
| Tensile Strength of Ropes at Break | Opening Force Test of Jelly Cups and Yogurt Cups |
| Peel Test of Cup Films | Pullout Test of Rubber Stoppers |
| 45 Degree Peel Test of Bottle Membranes | Tensile Strength of Sealing Bags |
| Peel Test of Magnetic Cores | 90 Degree Peel Test of Magnetic Cards |
| Tear Resistance of Heat Sealing Films | Separating Force of Protection Films |
| Peel Test of Release Paper | Tear Test Using Trouser Method |
| Unwrapping Force of Adhesive Tapes | Compressive Resistance of Plastic Bottles |
| 20 Degree Peel Test | 135 Degree Peel Test of Plugs |
| Peeling Grips of Floating Rollers | Eccentric Grips |
| Japanese Sample Grips | British Sample Grips |
