Intelligent Leak Tester Application:
The intelligent leak tester is purpose-built to evaluate the sealing integrity of diverse packaging formats. It serves a broad spectrum of industries, including food, pharmaceuticals, medical devices, cosmetics, automotive, electronics, and stationery. The system delivers efficient, high-precision seal testing across multiple specimen types pouches, bottles, tubes, cans, and cartons. Furthermore, it verifies sealing performance on specimens subjected to drop and compression tests, providing end-to-end assurance of product quality and safety.
Intelligent Leak Tester Feature:
PVC control panel with a brand-new button layout for simple and convenient operation.
Microcomputer-controlled, with configurable test parameters and a fully automated test process (except for ALT-01).

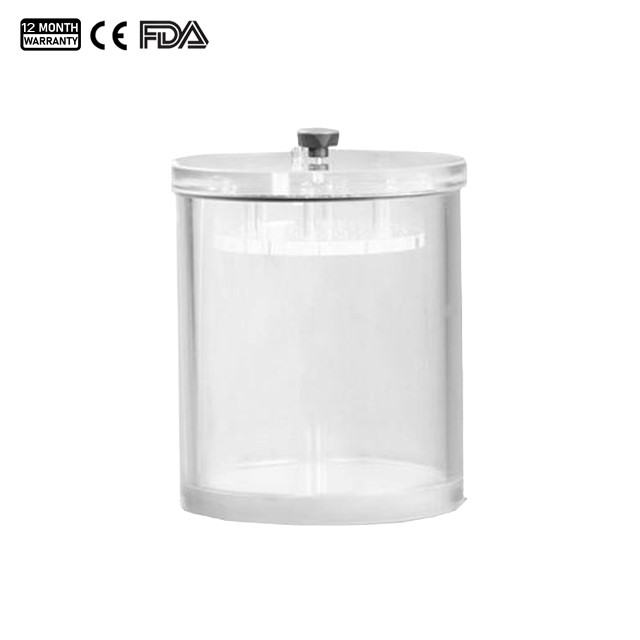

Sealing barrel of high quality PMMA with 15 mm wall thickness, the thickest in the industry.
All pneumatic components are high-quality products that offer stable and reliable performance.
The intelligent leak tester is equipped with automatic blowback and pressure release at the end of each test, minimizing manual operation and saving time (except for ALT-01).
Equipped with three sets of independent electronically controlled valves to minimize operational interference among them.
The intelligent leak tester enclosure is made of stainless steel and features a high-temperature powder-coating finish, which enhances the instrument’s durability.
Intelligent Leak Tester Specification:
Model | ALT-01B | ALT-01A | ALT-03 | ALT-01 |
|---|
Vacuum Range | 0 to -90 kPa |
Accuracy | ±0.1 kPa | ±0.5 % FS | ±0.5 % FS | ±0.5 % FS |
Resolution | 0.1 kPa |
Pressure Acquisition Speed | 2 ms |
Pressure Compensation Speed | 5 ms |
Vacuum Holding Time | 0–999999 s (extendable) | 0–6000 s (extendable) | 0–9999 (extendable) | 0 –9999 h 59 min 59 s |
Display | 7" touch screen | LCD | Digital pressure and time |
Preset | Yes | Yes | Yes | No |
GMP-Compliant Access Control | Yes | No | No | No |
Control Mode | Microcomputer-based automatic control | One-touch control of pressure and timer |
Test Mode | Single-point and gradient | Single-point | Single-point | Single-point |
Data Interface | Dot-matrix printer, USB 2.0 | Thermal printer/dot-matrix printer (optional) | / | / |
Air supply Pressure | Optional |
Air supply Port | Ø 6 mm PU tube |
Effective Chamber Dimension (Ø×H) | 270×210 mm (standard); 360×585 mm, 460×330 mm (optional); |
Note: Other sizes are available upon request; |
Main Unit Size (W×D×H) | 450×370×190 mm | 420×320×120 mm | 420×320×120 mm | 420×320×120 mm |
Vacuum Chamber Size (Ø×H) | 300×350 mm |
Shipping Size (W×D×H) | Main Unit: 540×430×250 mm; Vacuum Chamber: 370×370×420 mm; |
Power Supply | AC 220 V, 50 Hz | AC 220/120V, 50/60Hz | AC 220/120V, 50/60Hz | AC 220 V, 50 Hz |
Consumption | 75 W |
N.W./G.W. | 16/18 kg | 16/18 kg | 16/18 kg | 12/18 kg |
Reference Standard | ASTM D3078 |
Note: Customization available for special requirements within our capability |
