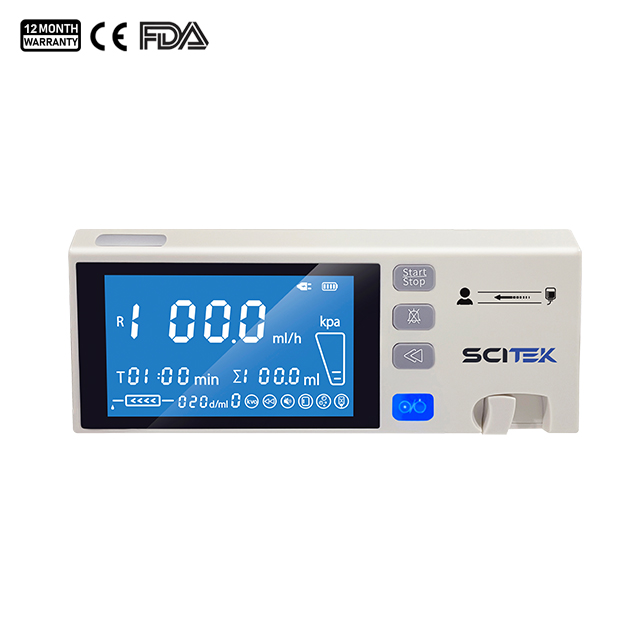

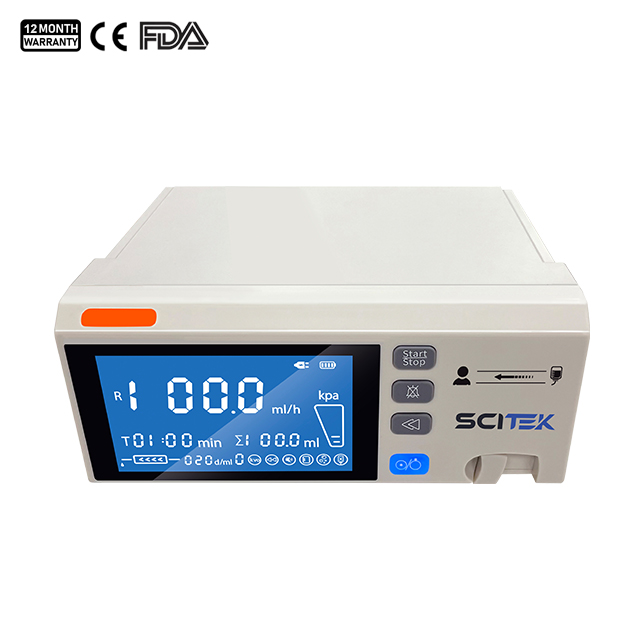

Infusion Pump

Model : IP-3F

Flow rate range : 0.1-1500ml/h; 0.1-100ml/h increment 0.1ml/h; 101-1500mlml/h increment 1ml/h
Infusion dripping speed : 20d/ml, infusion set : 1-500d/min
Infusion accuracy : ±5%

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Infusion Pump Features:

4.3 inch color touch screen for easy operation and clear vision
Compact and lightweight design for easy carrying and mounting
User friendly interface with audible and visual alarm system
Builtin lithium battery, around 5 hours working time after fully charged
Multiple infusion modes to satisfy different infusion requirements.
Advanced pressure detection technology.

Infusion Pump Specifications:

Model	IP-3F
Applicable infusion set	Various brand of infusion set. Single use 20drops/ml Infusion set diameter:3.4~4.5mm
Infusion modes	ml/h(default): Flow rate & volume mode, Flow rate & time mode, Flow rate mode d/min: Drip& volume mode. Drip& time mode, Drip mode
Flow rate range	0.1-1500ml/h
	0.1-100ml/h increment 0.1ml/h
	101-1500mlml/h increment 1ml/h
Infusion dripping speed	20d/ml, infusion set : 1-500d/min
Infusion accuracy	±5%
Volume to be infused(VTBI)	0.1---9999ml
	0.1-999.9ml/h, increment
	0.1ml/h1000-9999ml, increment 1ml/h
Purge rate	1000ml/h
KVO rate	2.5ml/h
Occlusion Pressure	19kPa.38kPa.57kPa. 76kPa. 95kPa.114kPa, 133kPa (default :95kPa)
Air-bubble detection	Smallest size of Air Bubble: 50ul
Power supply	AC power supply: 100---240V, 50/60Hz
Power supply	External DC power supply: 7.4 V
Battery	Internal rechargeable Lithium battery,1800mAh
Battery working time	Around 5 hours (for infusion rate at100ml/h with a new battery)
Fuse	T 1A
Operation environment	Temperature +10~+30°C
	Relative Humidity≤70%
	Atmospheric Pressure 86KPa~106KPa
Storage environment	Temperature -10~+55℃
Storage environment	Humidity ≤80%
Screen	4.3" LCD touch screen
Size(W×D×H)(mm)	200x155.5x97

About Company

As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .

Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
