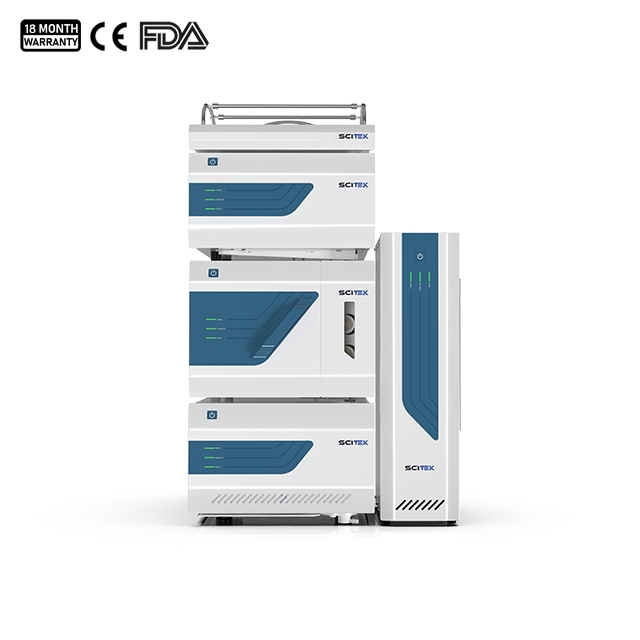

The LC-QGH3200Z is an integrated high-performance liquid chromatography system that combines innovative fluid technology, an intelligent auto-sampler system, and a full range of high-sensitivity detectors. Paired with a compliant intelligent workstation, it achieves full-scenario coverage from QA/QC and routine analytical laboratories to R&D. It can meet the precise testing needs of industries such as pharmaceuticals, food, environment, chemicals, and biopharmaceuticals, making it an ideal choice for efficient analysis and compliant testing in laboratories. LC-QGH3200Z deliver the greatest return on investment for you and minimize usage and maintenance costs.
HPLC Chromatograph System Feature:
1. Innovative Auto-sampler, ultimate precision and low contamination:
Equipped with a needle-in-flow-path sampler, it enables automated, precise sample collection and non-destructive injection.
Optimized needle cleaning flow minimizes cross-contamination, achieving superior qualitative and quantitative repeatability.
Supports online derivatization/dilution/enrichment pre-treatment functions to meet the needs of extended method development scenarios.
2. Intelligent compliance workstation for efficient analysis
Smart Lab chromatography workstation has achieved CMMI Level 5 maturity assessment, meets GMP and CGMP requirements, and features complete audit trail functionality.
Equipped with the patented H.B.C-ApexFinder algorithm, SmartPeak intelligent peak detection function ensures accurate identification and reliable quantification of chromatographic peaks in complex samples.
With its intuitive, wizard-driven interface, no tedious training is required. A user-friendly design provides an efficient and intelligent analysis experience.
3. High-performance key component integration stable and reliable system:
The high-pressure infusion pump is pressure-resistant up to 45MPa, compatible with small particle size columns, and supports seamless conversion of analytical methods.
Self-recovering acetonitrile-resistant one-way valve and two-stage suspension technology improve stability in strong solvents and extend consumable life. Compression compensation and pulsation suppression ensure accurate gradient and stability.
Quaternary pump integrates 5 degassing channels/binary pump comes standard with a solvent switching valve, to meet the needs of complex gradient analysis.
Column oven features dual-module full-temperature zone control and forced air bath to achieve temperature uniformity.
Supports multi-column and two-dimensional liquid chromatography expansion, with optional GLP recording to fully meet compliance requirements (optional).
4. Modular and flexible detector configuration for full analysis needs
Freely combine a full range of detectors, Ultraviolet (UV), Refractive Index Detection (RID), Diode Array (DAD), Fluorescence (FLD) and Evaporative Light Scattering (ELSD), to meet diverse compound detection needs. Offers maximum flexibility, from routine qualitative and quantitative analysis to high-sensitivity, high-resolution analysis.
HPLC Chromatograph System Specifications:
Model
LC-QGH3200Z
Pressure Range
0–45 Mpa
Pump
Quaternary (Standard)
Flow Range
0.0000–10.0000 mL/min
Precision and Accuracy
0.0001 mL/min, ±0.2% (1 mL/min)
Autosampler Function
Online degassing, hard protection, empty bottle recognition (Standard)
Inject Rolume Range
0.1–50.0 μL (Customizable)
Accuracy Error Of Injection Volume
±1% (sample volume: 10.0 μL)
Injection Volume Linearity
R≥0.9999
Cross Contamination
≤0.002%
Vials
108 (2 mL sample bottle)
Column Oven Temperature Control Range
R.T.minus 10 °C to 70 °C (Dual-mode temperature control with heating and cooling)
