How Important is the Centrifuge Rotor

A centrifuge rotor is the core component responsible for holding sample tubes or containers during centrifugation. By spinning at high speeds, it generates the centrifugal force required to separate samples efficiently. Selecting the appropriate rotor is essential for achieving optimal separation performance, protecting sample integrity, and meeting the specific requirements of different laboratory applications.

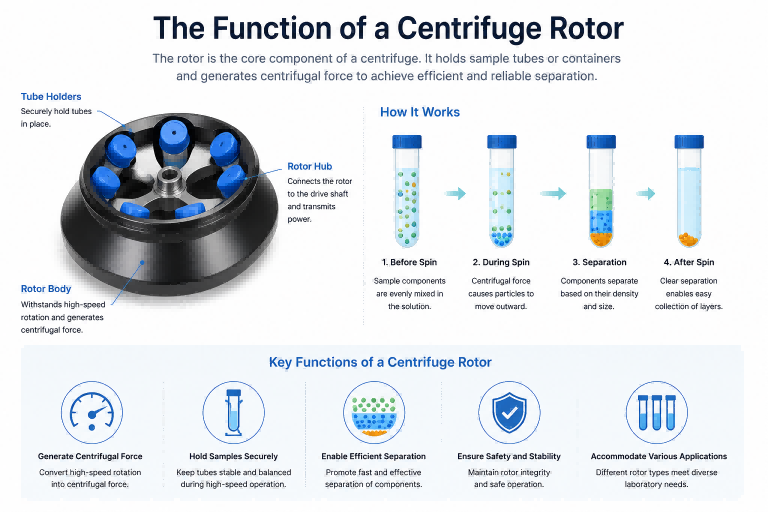

The Function of a Centrifuge Rotor

Essentially, a centrifuge rotor primarily performs the following three mechanical functions:

A well-designed rotor maximizes the balance of the centrifuge tubes and minimizes vibration.

The specific angle of the rotating axis determines the direction of particle movement and the length of the sedimentation path, ensuring that the centrifuge can produce reproducible experimental results.

It ensures that the centrifugal force acting on the sample is perfectly consistent with the rotational speed.

Centrifuge Rotor Geometry and Separation Behavior

The geometry of a centrifuge rotor affects the movement path of particles within a sample, their formation location, sedimentation density, and separation time, among other factors. Selecting the correct rotor can significantly improve sample recovery and extend the machine’s service life.

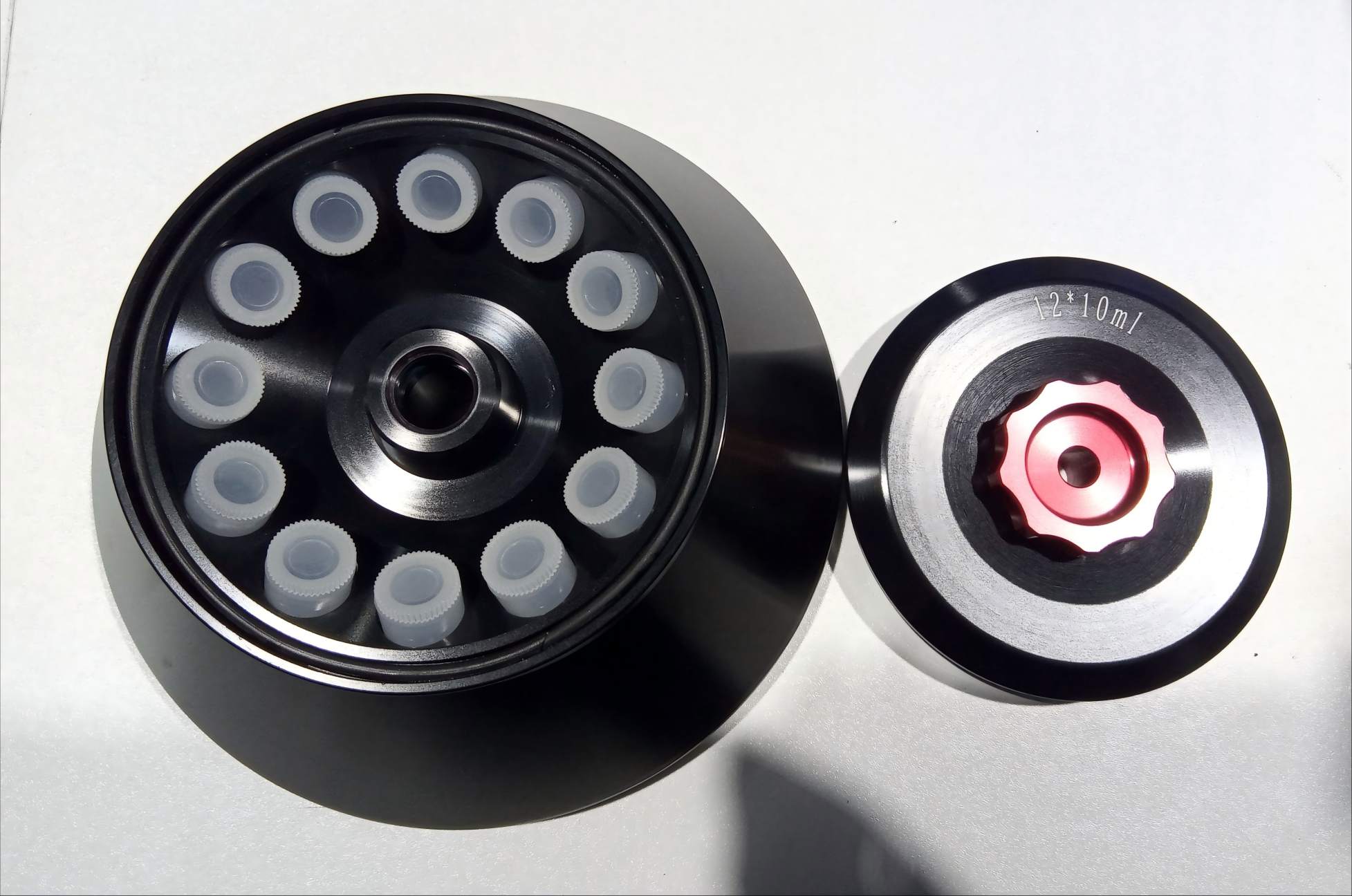

Fixed-Angle Rotors

This is one of the most common types of centrifuge rotors. It holds centrifuge tubes at a constant angle between 20° and 45°. During centrifugation, particles slide down the side walls to the bottom of the tube. This method produces well-formed precipitates quickly, making it ideal for precipitating bacteria, nucleic acids, proteins, and cell debris.

Advantages:

Allows for higher rotational speeds, making it suitable for applications requiring rapid particle sedimentation.

Generates higher centrifugal forces, making it suitable for the sedimentation of very small particles.

Short centrifugation times.

Fixed-angle rotors have fewer moving parts than swing-out rotors, which means lower maintenance requirements.

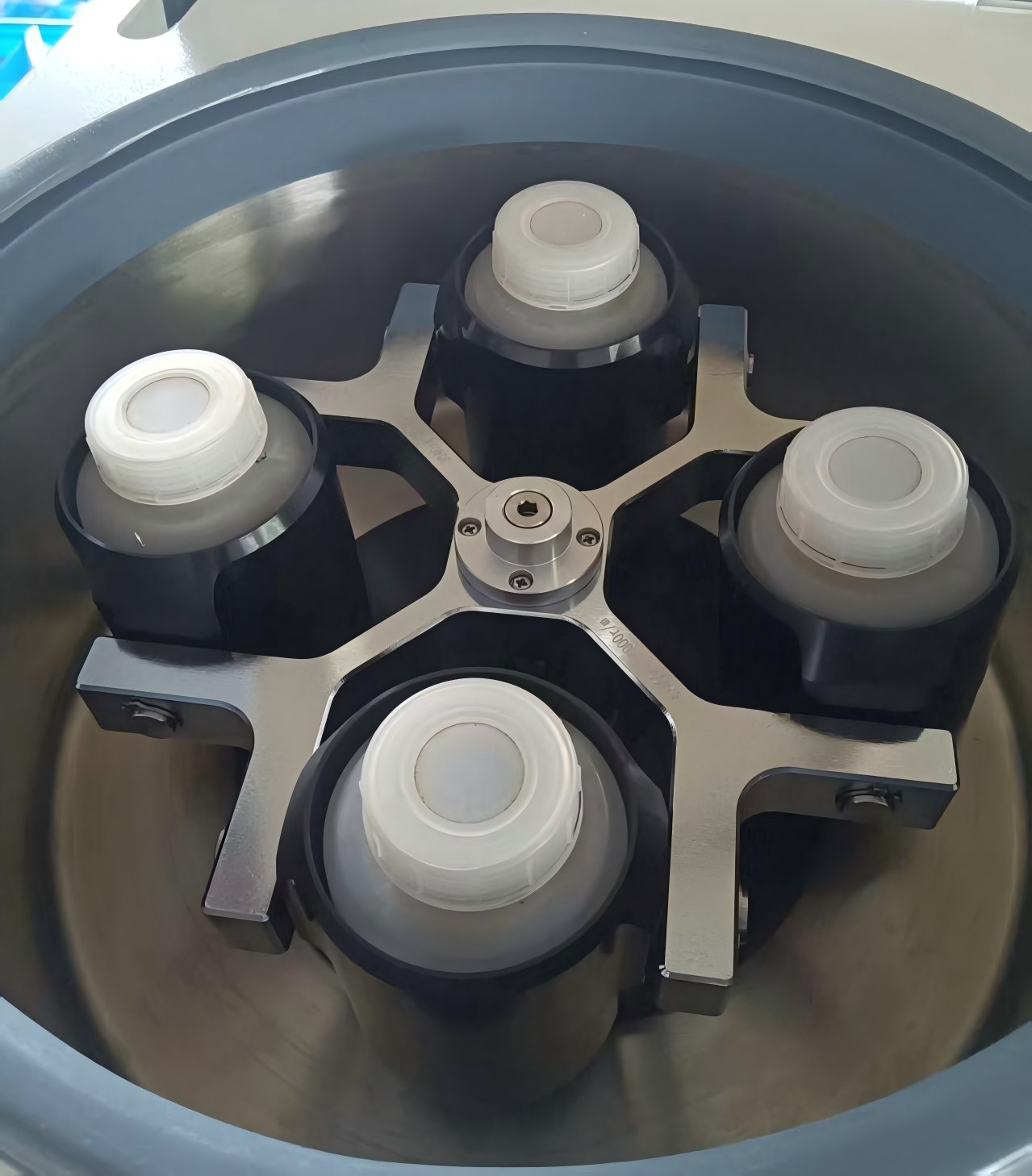

Swing-out Rotors

Allow centrifuge tubes to rotate to a horizontal position, enabling particles to settle along the entire length of the tube. The longer settling path facilitates the formation of looser, softer precipitates. They are the preferred choice for density gradient separations in the laboratory and for applications requiring the preservation of cell viability after centrifugation.

Advantages:

Horizontal separation allows the precipitate to settle along the length of the tube, resulting in a clear and uniform separation of components.

It produces ideal layering effects for samples such as plasma and red blood cells.

It accommodates a wider variety of tube sizes and types, including microplates and blood bags.

The clear separation of sample layers allows for easier visualization and more accurate recovery of the supernatant while preserving the integrity of the pellet.

Centrifuge Rotor Types for Every Laboratory

How to Choose the Right Rotor

The Effect of Rotor Design on Sedimentation Rate and Separation Efficiency

The rotor is the core component of a centrifuge that enables sample separation; its structural design directly influences the sedimentation path of particles, the distribution of centrifugal force, and the final separation outcome. Even under identical rotational speeds, centrifugation times, and sample conditions, different types of rotors can yield vastly different experimental results. Therefore, selecting the appropriate rotor based on sample characteristics and experimental requirements is key to improving centrifugation efficiency and experimental reproducibility.

Impact on Sample Integrity

From a biological perspective, the rotor plays a decisive role in sample preservation:

Shear stress is influenced by acceleration and deceleration curves, which in turn interact with the rotor’s mass and design.

The degree of particle compression depends on the sedimentation angle and force distribution.

If the rotor material and airflow are not optimized, thermal effects may occur during high-speed operation.

For sensitive samples such as blood components, cells, or nucleic acids, improper rotor selection can lead to hemolysis, cell lysis, or reduced analytical accuracy.

Safety and Compliance Considerations

Rotors are among the components in a centrifuge system subjected to the greatest forces. Therefore:

They must be manufactured from materials capable of withstanding repeated high-g cycles. Precision machining is required to prevent imbalance.

Practical Implications for Laboratory Workflows

In daily laboratory operations, rotors determine:

Maximum tube diameter and configuration

Throughput per run

Compatibility with standard consumables

Reproducibility across different batches and laboratories

Therefore, rotors should be regarded as scientific tools for specific applications, rather than interchangeable mechanical parts.

Conclusion

The performance of the rotor largely determines the overall separation efficiency of a centrifuge. Different rotor designs are suitable for different types of samples and experimental requirements, and they have a significant impact on sedimentation rates, separation efficiency, and sample integrity. By carefully selecting the appropriate rotor type and optimizing centrifugation parameters, laboratories can effectively improve experimental efficiency, reduce errors, and enhance the consistency and reliability of data.
