High Pressure Reactor HPR-B Series

High Pressure Reactor Features:

1. Laboratory micro magnetic stirring high pressure reactor is suitable for stirring flammable, explosive and highly permeable chemical media

2. It is the best reaction vessel for vulcanization and oxidation in petroleum, chemical, organic synthesis, food and other processes

3. The stirring tank motor drive adopts magnetic couple connection

4. The medium and stirring parts work in a sealed state, without contact transmission, avoiding stirring leakage

High Pressure Reactor Specification:

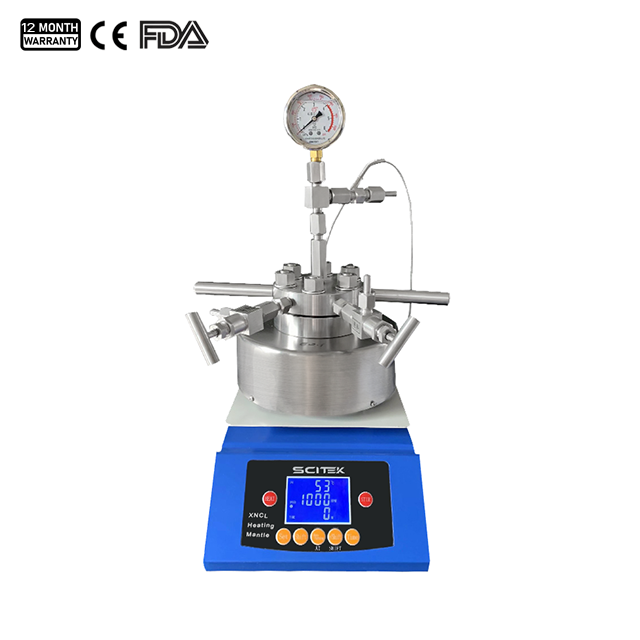

Details of high pressure reactor vessel:

Built with a durable stainless steel vessel to withstand demanding reaction conditions and support long-term use. The high pressure reactor vessel is designed for controlled chemical reactions under elevated pressure, suitable for laboratory research and material synthesis.

The digital interface enables convenient adjustment and monitoring of operating parameters, including temperature, stirring speed, and time, depending on the model configuration.

Magnetic stirring promotes uniform mixing of reaction materials and supports consistent reaction conditions.

What is a high pressure reactor vessel?

A pressure vessel is any container designed to maintain its contents at a pressure higher than atmospheric.

In the field of chemistry, specialized pressure vessels are used as high pressure reactor vessels. These are robust reactor vessels designed to keep the contents under high pressure while a chemical reaction takes place.

Applications of high pressure reactor vessel:

Pressure is one of the most important process variables in chemistry, and carrying out a reaction in a pressure reactor can offer many advantages.

At high pressures, solvents can be heated to higher temperatures before evaporation. This allows reactions to take place at higher temperatures than atmospheric pressure (and therefore faster).

Increasing the pressure directly increases the rate of reaction, especially for gases, by decreasing the volume of reactants and thus increasing the concentration and frequency of collisions.

An increase in pressure shifts the chemical equilibrium toward the side of the reaction with fewer gas moles. Depending on the stoichiometry of the reaction, pressure reactors can play a key role in increasing the yield.

As a result, high pressure reactors are critical in a variety of chemical applications, including hydrogenation and other gas-phase reactions, homogeneous and inhomogeneous catalysis, corrosion testing, supercritical studies, and hydrothermal synthesis.
