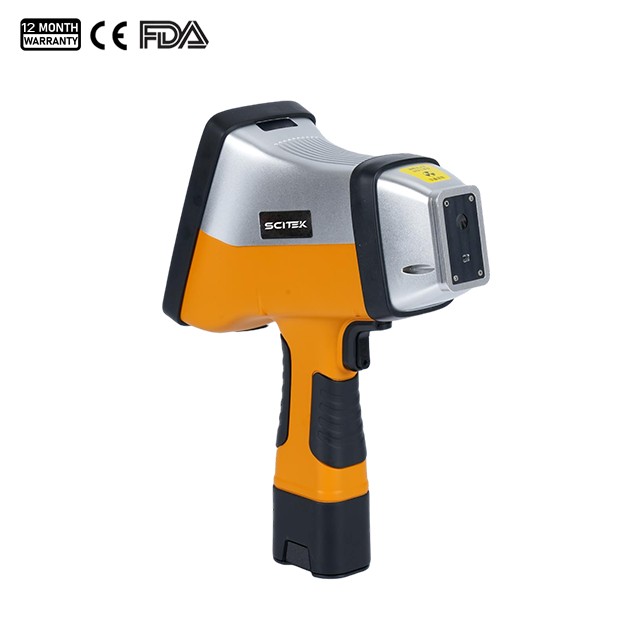

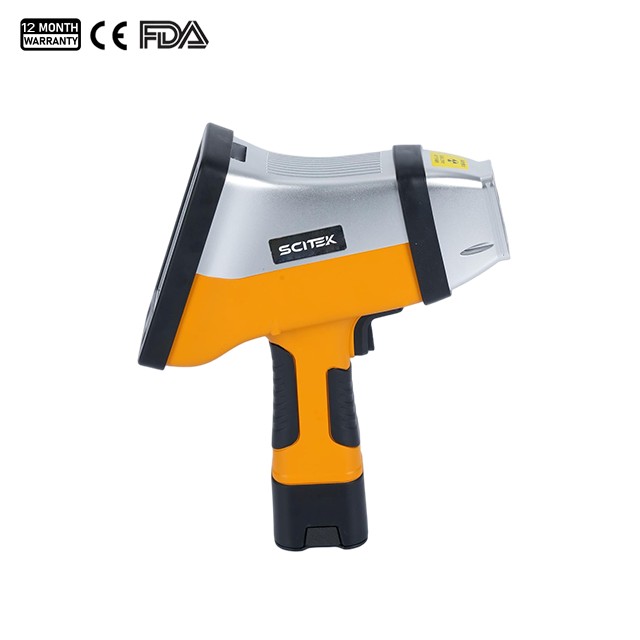

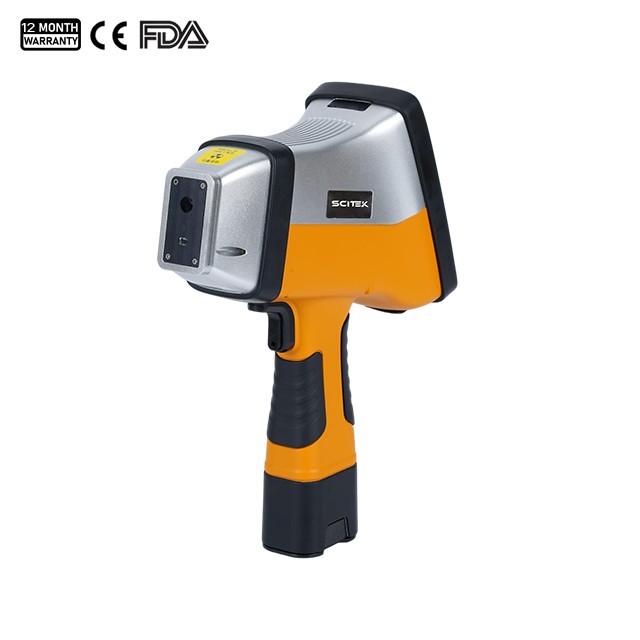

Handheld X-ray Fluorescence (XRF) Spectrometer

Handheld X-ray FluorescenceApplication:

Handheld X-ray fluorescence analyzers provide one-stop, non-destructive, rapid elemental analysis solution. Integrating three intelligent operating modes (Alloy Analysis, Soil & Geology, and RoHS Screening) to delivers efficient, precise, and reliable data with laboratory-grade accuracy for field testing.

Key Application:

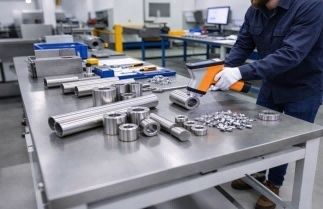

Alloy Analysis and Positive Material Identification (Alloy Mode): Metal manufacturing and processing, scrap metal recycling and sorting, and material reliability verification (PMI) for aerospace and petrochemical pipelines.

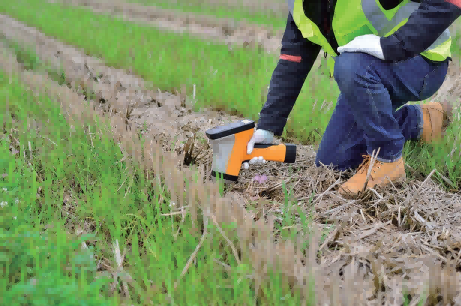

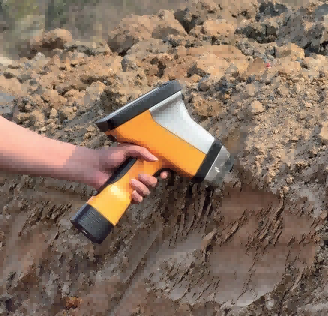

Environmental Monitoring and Geological Soil Analysis (Soil Mode): On-site soil environmental surveys, tailings inspections, environmental law enforcement inspections, and sediment and geological mineral exploration.

RoHS Regulatory Compliance Screening (RoHS Mode): Incoming and outgoing quality control (IQC/OQC) for the electronic and electrical manufacturing industry, consumer product safety testing (toys, apparel, etc.), and compliance inspections of packaging materials.

Handheld X-ray Fluorescence (XRF) Spectrometer Feature:

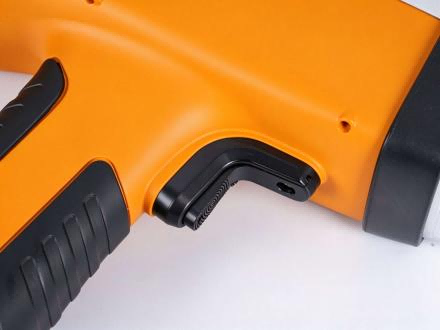

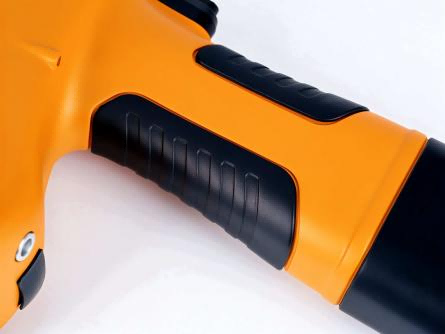

5" Touch screen	Ergonomic Design	Non-slip Grip

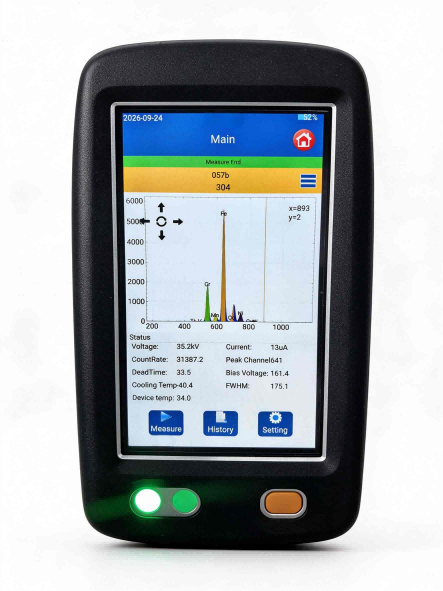

1. 5" high-definition, high-brightness integrated touchscreen with responsive feedback, ensuring clear visibility even in bright outdoor environments.

2. Utilizes X-ray fluorescence (XRF) spectroscopy for direct measurement, no sample preparation is required, minimizing sample loss.

3. Analyzes elements ranging from Sulfur (S) to Uranium (U), a single unit handles alloy, soil, and RoHS testing tasks.

4. Built-in software modes for alloy, soil, and RoHS analysis, switch modes on a single device to handle different tasks, eliminating the need for multiple instruments.

5. Adjustable analysis time (3 to 60 seconds), operators can configure settings based on required precision.

6. Features an integrated Ag-target end-window micro X-ray tube and high-voltage power supply, requires no external high-voltage modules.

7. High-quality, large-area Si-PIN detector (imported from the USA) offering an energy resolution of 149 eV, facilitating the separation of adjacent spectral lines.

8. Thermoelectric cooling technology, eliminating the need for liquid nitrogen or long cool-down periods, allowing for rapid startup and measurement readiness.

9. 4096-channel Multi-Channel Analyzer (MCA) for high-resolution pulse height analysis, ensuring superior preservation of spectral details.

10. Powered by a quad-core processor (up to 1.92 GHz) with 4 GB RAM and 64 GB of onboard storage (non-card based).

11. Collimation and filtering system with six filter sets, enabling up to 18 configuration combinations with automatic switching.

12. Supports USB, Wi-Fi, and Bluetooth data transmission, and allows for synchronized operation with a computer screen.

Handheld XRF Spectrometer Specification:
