Halogen Moisture Analyzer Application:
Halogen moisture analyzer employs the classic principle of thermogravimetric analysis, combining a high-efficiency circular halogen heating unit with a precision weighing system. Capable of determining sample moisture content within minutes, it serves as an ideal tool for rapid quality control in both laboratory and production environments.
Halogen Moisture Analyzer Feature
5 inch touch screen for Real-time display of dynamic moisture curves, time/date, moisture content, and residual mass.
Die-cast aluminum housing and a mirror-finish stainless steel windproof pan; robust, durable, and interference-resistant.
Designed with a heat-insulated carrying basket and side handles to prevent burns during high-temperature operation.
High-intensity halogen lamp with a dual-layer stainless steel heating chamber for rapid, uniform heating.
High-precision HBM sensor and an intelligent temperature control system to ensure data stability.
Supports storage of multiple drying profiles, frequently used test modes can be recalled with a single touch.
Heat-insulated carrying basket and side handles to prevent burns during high-temperature operation.
Optional Aluminum box/Printer/Grinde available.

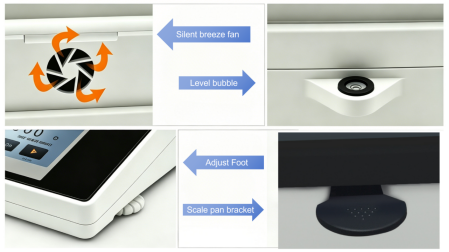

Components and Details of the Halogen Moisture Analyzer
Halogen Moisture Analyzer Specification
Model | BA-HT110 |
Pan Size | Φ90 mm |
Capacity | 110 g |
Readability | 0.001 g |
Display | 5-inch touch panel |
Heating Source | Halogen lamp |
Temp. Range | 40–200 ℃ (1 ℃ step) |
Temp. Sensor | PT100 |
Moisture Range | 0.00%–100.00% |
Moisture Readability | 0.0001 |
Dry Range | 100.00%–0.00% |
Dry Readability | 0.0001 |
Time Setting | 1 to 99min By (1s step) |
Number Of Storage | 100 |
Number Of History | 1000 |
Calibration | External Calibration |

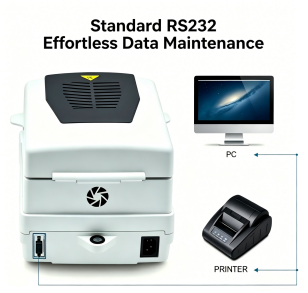

Interface | RS232(Standard), USB (Optional) |
Power Supply | AC 220/110±10%, 50/60 Hz |
Consumption | 400 W |
External Size (W×D×H) | 350×210×180 mm |
Packing Size (W×D×H) | 490×350×340 mm |
N.W./G.W. | 6/7.5 kg |
