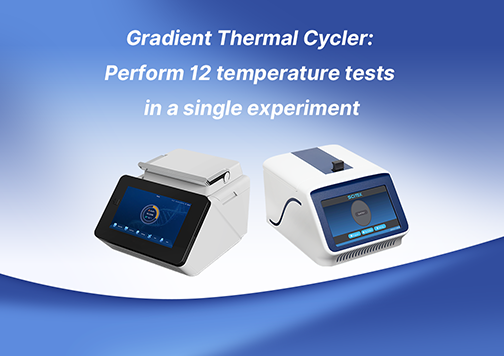

Can you imagine it? A tiny gradient thermal cycler capable of achieving precise temperature gradients within a range of less than 1 millimeter. It can run 12 different temperature conditions simultaneously in a single experiment. Behind this lies a wealth of cutting-edge engineering technology.
Peltier Temperature Control Technology
First, let’s look at the core temperature control technology. Most mainstream gradient thermal cyclers today use Peltier elements as their temperature control core. These components can rapidly heat or cool by reversing the direction of the current. Heating rates can reach 4°C/s, and cooling rates can reach 3°C/s, allowing for temperature switching within seconds.
Even more impressive is its ability to control the power of Peltier elements in different zones. This creates a continuous temperature gradient across the sample block—for example, a uniform rise from 50°C on the left to 65°C on the right. The temperature deviation for each well does not exceed 0.2°C.
High Thermal Conductivity Sample Block Design
To ensure temperature uniformity, the sample blocks of gradient thermal cyclers are typically made of silver or aluminum alloy, which offer excellent thermal conductivity. The surfaces are precision-machined to ensure a perfect seal with the bottom of PCR tubes, preventing temperature deviations caused by poor contact.
Some high-end models also feature temperature sensors in each well. These sensors monitor and report temperatures in real time, enabling closed-loop control. Even when ambient temperatures fluctuate, the system can quickly adjust the output power This ensures temperature consistency across all wells.
Adaptive Heated Lid Technology
Another user-friendly innovation is the adaptive heated lid design. The lid of a gradient thermal cycler allows for stepless adjustment of both height and pressure. It accommodates PCR tubes of various sizes, such as 0.2 mL and 0.5 mL, as well as different containers like 96-well and 384-well plates.
The lid temperature can be adjusted between 30°C and 110°C. This prevents evaporation of the reaction mixture while ensuring the tube lids do not deform due to excessive heat.
Smart Features for Reliable PCR Experiments
Modern gradient thermal cyclers also come equipped with a range of intelligent features. For example, power failure data protection ensures that even if the power suddenly goes out during an experiment, the program can resume from where it left off after restarting; the program storage function allows you to save up to 200 commonly used experimental programs, eliminating the need to repeatedly set parameters for future use.
It is the combination of these technologies that makes the gradient thermal cycler the most reliable “laboratory assistant” in the lab.
