Gel Permeation Chromatography: Principle, Parts, Uses, Steps

You may not realize it, but the plastic cups, rubber tires, clothing fibers, and even medicinal proteins that are ubiquitous in our daily lives are essentially composed of countless polymer “chains” of varying sizes. The size and distribution of these molecules directly determine the material’s core properties, such as hardness, elasticity, and service life. To accurately measure the sizes of these invisible molecules, we need a remarkable analytical technique called Gel Permeation Chromatography, or GPC for short. It is also known as the “molecular balance” of the polymer field. Let’s take a closer look at how Gel Permeation Chromatography works, its components, and how it is used.

The History of Gel Permeation Chromatography

The development of GPC is inextricably linked to the growth of the polymer industry. By the 1950s, scientists had already recognized the influence of molecular size on the properties of polymer materials, but lacked rapid and efficient methods for measurement. In 1959, Porath and Flodin first used cross-linked glucose gel to separate macromolecules in aqueous solutions, marking the beginning of gel chromatography; In 1964, J.C. Moore of Dow Chemical in the United States used highly cross-linked polystyrene gel as column packing material, combined with a highly sensitive refractive index detector, to formally invent gel permeation chromatography. This reduced the time required to determine polymer molecular weight distributions from hours of cumbersome experiments to just a few tens of minutes.

Today, GPC is also commonly referred to as Size Exclusion Chromatography (SEC). Depending on the mobile phase used, it is divided into two branches: “Gel Filtration Chromatography (GFC),” which uses water as the mobile phase and is primarily used for the analysis of biomacromolecules; and the GPC we commonly refer to, which uses organic solvents as the mobile phase and is widely used for the detection of oil-soluble polymer materials.

Principles of Gel Permeation Chromatography

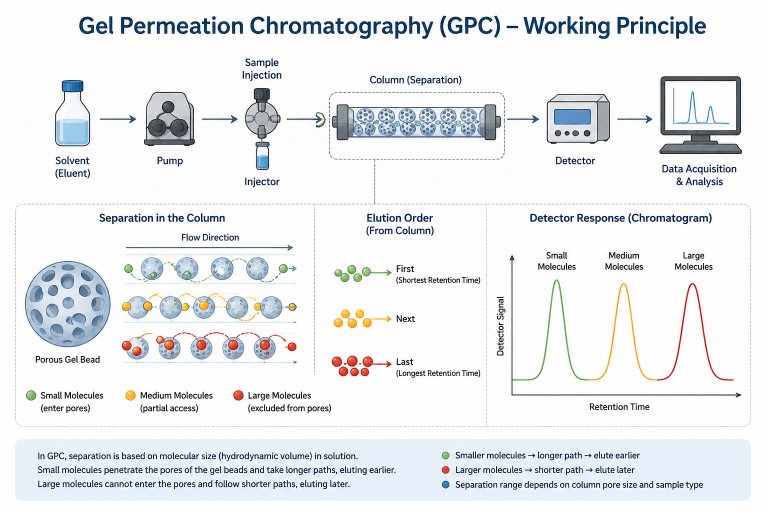

The core principle of gel permeation chromatography (GPC) is the volume exclusion effect. This method separates molecules based on their size in solution; simply put, “the larger ones elute first.”

The core component of GPC is a chromatographic column packed with porous gel microspheres, which act as molecular sieves. The surfaces and interiors of these microspheres are filled with interconnected pores of varying sizes, resembling a meticulously designed “molecular maze.” When a solution containing a polymer sample flows through the column, molecules of different sizes follow entirely distinct “pathways”:

• Large molecules: Too large to enter any of the gel’s pores. They can only flow rapidly through the gaps between the gel particles, taking the shortest path and thus exiting the column first;

• Medium-sized molecules: These can enter larger pores but are blocked by smaller ones. Their path length is moderate, and they elute second;

• Small molecules: Being the smallest, they can penetrate almost all pores. They travel the longest path through the “maze” and are therefore the last to be eluted.

By measuring the concentration of molecules eluting at different times. We can accurately determine the proportion of molecules of different sizes in the sample.

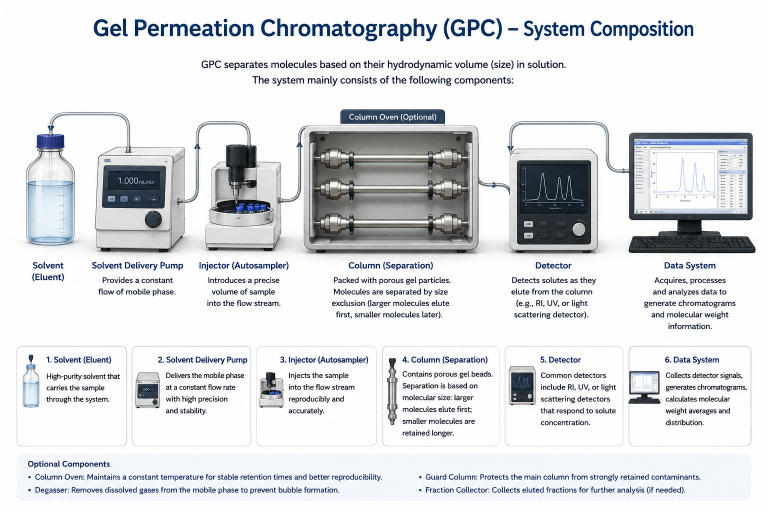

Components of Gel Permeation Chromatography

1. Pump: Provides a stable, uniform flow rate, allowing the sample solution to flow through the column at a constant speed.

2. Injection System: Precisely injects the sample into the mobile phase; an autosampler reduces human error. The autosampler automatically loads samples into the injection valve, thereby increasing the speed of analyzing large numbers of samples.

3. Chromatography Column: The “heart” of GPC, packed with a stationary phase.

4. Stationary Phase: Packed with porous gel beads that have specific pore sizes. This determines the range of molecular sizes that can be separated.

5. Detection System: Monitors changes in the concentration of the eluent in real time. Commonly used detectors include differential refractive index detectors, UV detectors, and light scattering detectors.

6. Data Processing System: Processes and records detector signals to generate chromatograms. Converts detector signals into molecular weight distribution curves and calculates parameters such as the average molecular weight and the coefficient of dispersion.

Explanation of GPC Plots:

GPC Analysis Results: The x-axis represents retention time (the further to the left, the higher the molecular weight). The y-axis represents detector response (corresponding to molecular concentration).

1. Average Molecular Weight: A “retention time–molecular weight” calibration curve is established using standard samples with known molecular weights. Core parameters such as the number-average molecular weight and weight-average molecular weight are calculated based on the sample’s peak retention time;

2. Molecular Weight Distribution (PDI): This is equal to the weight-average molecular weight divided by the number-average molecular weight. The closer the PDI is to 1, the more uniform the molecular sizes in the sample. A higher value indicates greater dispersion in molecular sizes.

Procedure for Gel Permeation Chromatography

The standard operating procedure for Gel Permeation Chromatography (GPC) is as follows:

1. Sample Preparation

Sample preparation is critical. First, ensure that the sample is completely dissolved in the solvent without degradation or interaction with the chromatographic packing material.

Dissolve the sample completely until it is free of particles

Filter through a syringe filter to remove insoluble impurities

Finally, degas the mobile phase solvent for 20–30 minutes using an ultrasonic degasser to prevent bubbles from interfering with detection

2. Instrument Preparation and Calibration

System Check: Verify that the GPC system’s pump, injector, column oven, and detector (typically a refractive index detector, though some systems are equipped with UV or light scattering detectors) are functioning properly, and remove any air bubbles from the tubing.

Column Equilibration: Install the selected column into the system, set the column temperature, and flush the system at a flow rate of 0.5–1.0 mL/min until the baseline stabilizes (equilibration typically requires at least 30 minutes; extend the equilibration time after changing solvents or columns).

Recalibration is mandatory whenever the column, solvent, or operating conditions are changed.

3. Injection

Standard Sample Analysis: Inject standard solutions in order of increasing molecular weight. The injection volume is typically 20–100 μL. Record the retention time of each standard to establish a calibration curve.

Sample Analysis: Inject the sample solution and record the retention times and corresponding signal intensities of the different components in the sample. If repeat measurements are required, allow sufficient flushing time between injections to ensure that residual components are completely eluted.

Blank Control: Inject pure solvent as a blank to account for interference from solvent peaks or impurity peaks.

4. Separation

After injection, the sample moves through the column and interacts with the porous stationary phase based on its hydrodynamic volume.

Smaller molecules enter the pores and elute after traveling a longer path. Larger molecules, however, are excluded from the pores and elute more rapidly through the column.

5. Data Processing and Analysis

Detector signals are recorded by the data system as a chromatogram.

A chromatogram is a graph showing the relationship between detector response and time or volume, where each peak represents molecules within a specific size range.

Compare the chromatogram data with the calibration curve.

6. System Maintenance

After the experiment, continue flushing the column with the mobile phase for 30–60 minutes to remove residual sample impurities.

If the column needs to be stored long-term, after flushing, replace the mobile phase with an appropriate storage solvent as specified in the column manual (e.g., HPLC columns can be stored in tetrahydrofuran or methanol), then remove and seal the column for storage.

Turn off the power to all instrument modules and maintain proper usage records.

Factors Affecting Gel Permeation Chromatography

In gel permeation chromatography (GPC) analysis, the selection of stationary phase material and pore size distribution has a significant impact on separation performance. The column packing material must be selected with an appropriate pore size range based on the sample’s molecular weight range to achieve more effective molecular sieving. Polymers with different molecular weights typically correspond to different pore size ranges.

The properties of the mobile phase also affect analytical results. An ideal mobile phase should fully dissolve the sample and minimize nonspecific interactions with the stationary phase, thereby improving separation accuracy and reproducibility.

In addition, sample concentration and injection volume must be carefully controlled. Excessively high concentrations or large injection volumes can easily lead to column overload, causing issues such as peak broadening and reduced resolution; therefore, optimizing injection conditions is critical for obtaining reliable data.

The operating conditions of the chromatographic system, including column design, flow rate, temperature, and system pressure, also affect the final separation efficiency and analytical stability.

Applications of Gel Permeation Chromatography

The applications of GPC have long extended beyond polymer laboratories, permeating every aspect of our lives:

1. Polymer Materials Industry

From plastic bags to car bumpers, the production of all plastic products relies on GPC monitoring. Only by adjusting the polymerization process through GPC analysis can products with qualified performance be produced.

2. Food and Environmental Testing

International food safety standards explicitly designate GPC as the standard purification method for determining antioxidants in food.

3. Biopharmaceuticals

In the research and development of antibody drugs and vaccines, GPC is used to separate and purify biomacromolecules such as proteins and polysaccharides, removing aggregates and impurities to ensure drug safety and efficacy. Its advantage lies in the gentle nature of the separation process, which does not compromise the activity of biomolecules.

Conclusion

Gel permeation chromatography enables rapid and consistent separation based on molecular size, with minimal influence from the chemical properties of the molecules. As a result, it is suitable for a wide range of polymers and complex samples. Compared to many traditional analytical methods, GPC not only offers fast testing speeds and excellent reproducibility but is also well-suited for high-throughput testing requirements in both laboratory and industrial settings. Today, from polymer material R&D to food safety, biopharmaceuticals, and environmental testing, GPC has become an essential tool in research and quality control. It helps us gain a deeper understanding of the molecular world.
