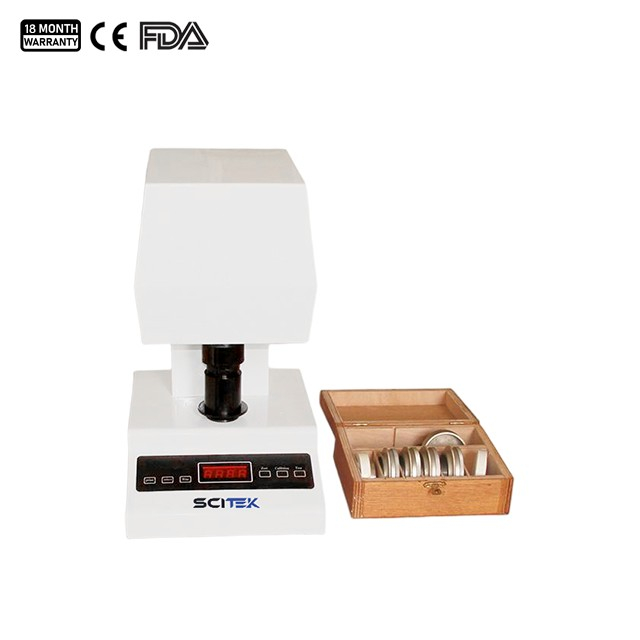

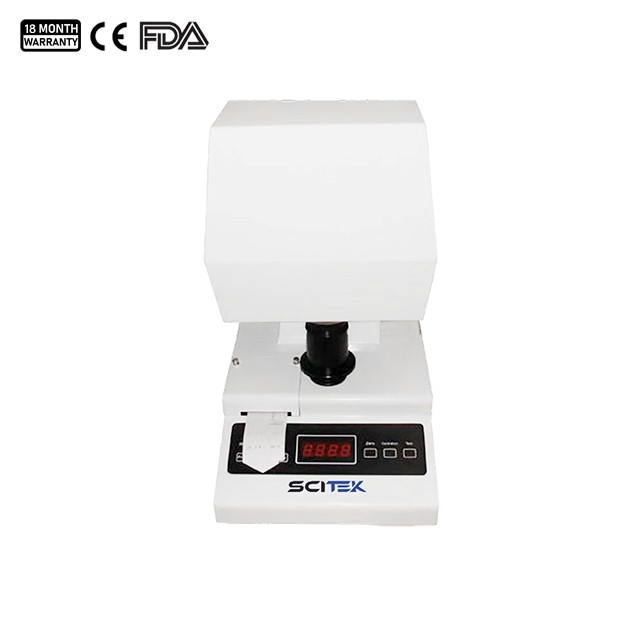

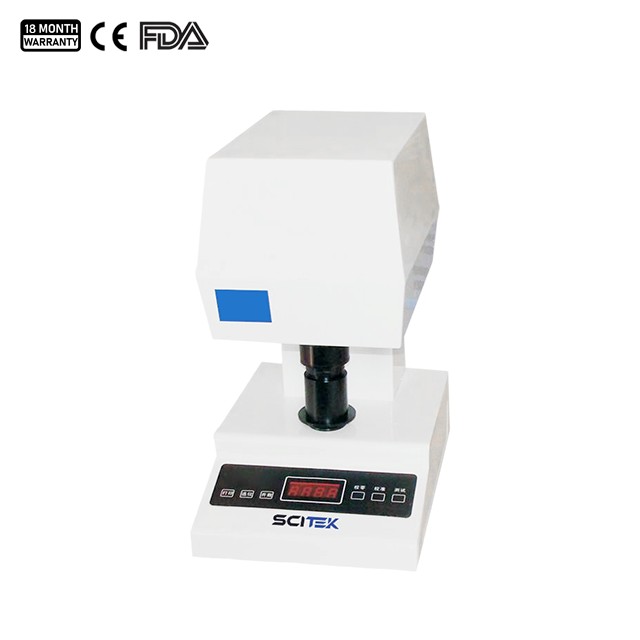

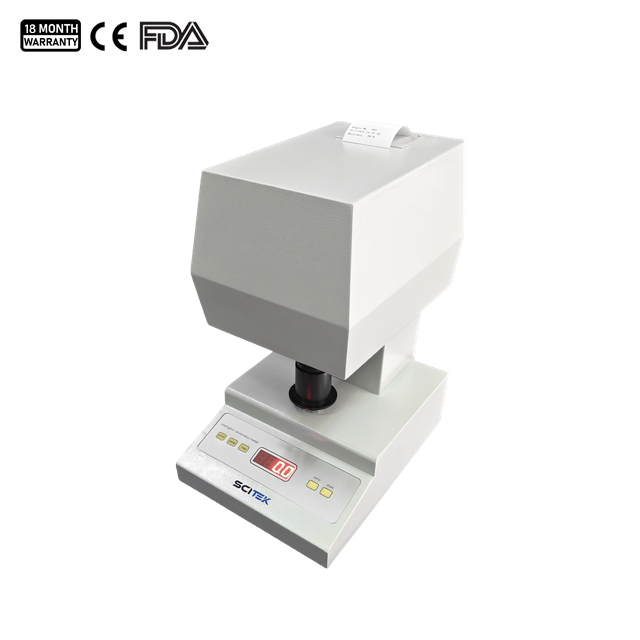

Whiteness Analyzer

Model: WA-B1

Measurement Method : Light Reflectance
Viewing Geometry : Diffuse illumination, 0° viewing (d/0)
Illuminant : D65
Integrating Sphere Diameter : Φ 120 mm
Measuring Aperture : Φ 20 mm

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Whiteness Analyzer Application:

The whiteness analyzer objectively quantifies the whiteness of test objects. It has a wide range of applications in various industries, including food, textile printing and dyeing, chemical plastics, building materials, ceramics, papermaking, and tactile materials. It is a core tool for laboratory quality inspection, production line inspection, and foreign trade inspection.

Whiteness Analyzer Feature:

A long-life light source, up to 100,000 hours.
Fully sealed design, suitable for various production site measurements.
Light trap to eliminate specular reflection from samples
Simple linear calculation method for high accuracy.
Highly integrated hardware design with an embedded operating system. Fast digital wave algorithm, completing measurement in 2 seconds.
Microcomputer control, LCD displayer, touch key, delicate appearance energy-saving and environment-protecting.
Optional built-in printer

Whiteness Analyzer Specification:

Model	WA-B1
Measurement Method	Light Reflectance
Viewing Geometry	Diffuse illumination, 0° viewing (d/0)
Illuminant	D65
Integrating Sphere Diameter	Φ 120 mm
Measuring Aperture	Φ 20 mm
Minimum Sample Size	≥ Φ 30 mm
Repeatability	≤0.1
Indication Drift	≤0.1
Zero Drift	≤0.1
Indication Error	≤0.5
Resolution	0.1
Output Mode	Three and a half digital display, built-in printer (according to customers' needs can be with printing function or not)
Working Environment	Temperature 0–40°C; Relative humidity <80% RH;
Power Supply	AC 220±22 V, 50 Hz
N.W.	10 kg
Size (L×W×H)(mm)	300×470×450
