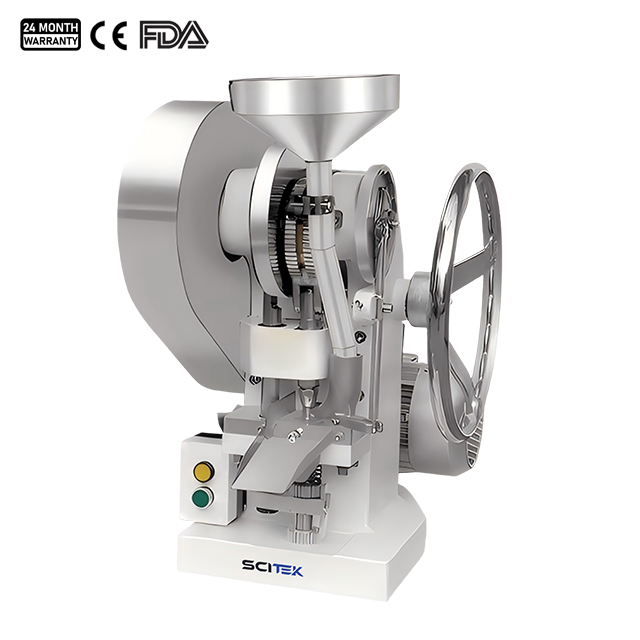

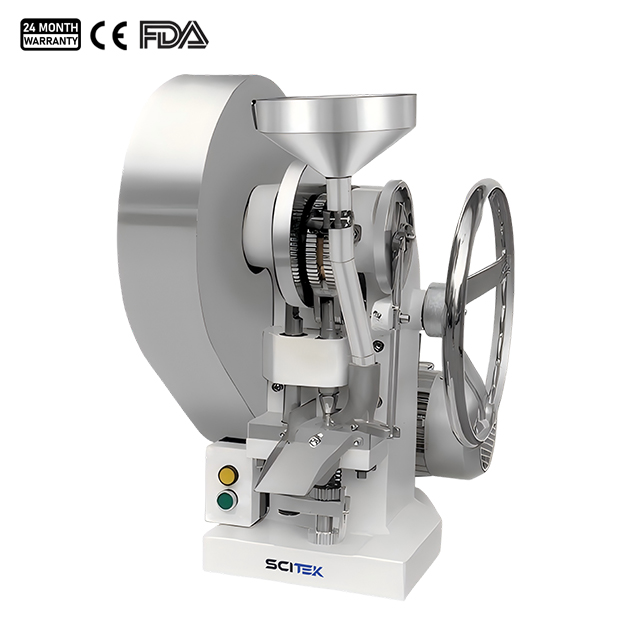

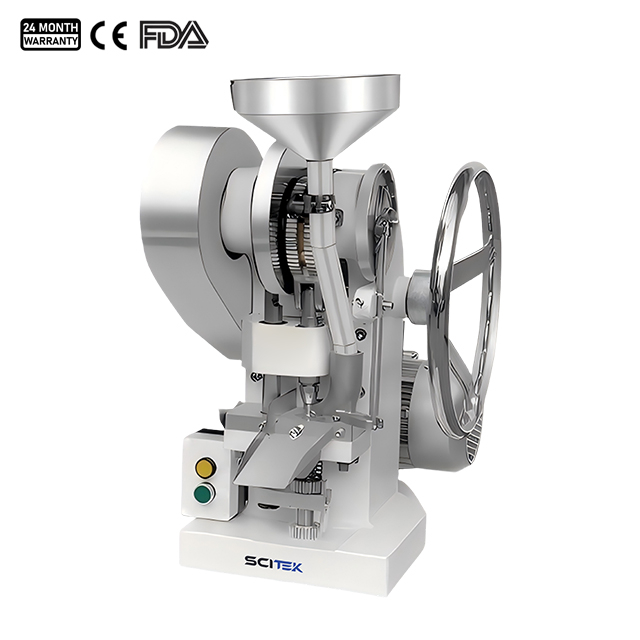

Electric Single Punch Tabletting Machine

Model : SPT-E15A; SPT-E50; SPT-E60

Max. Tabletting Diameter : 4-12 mm; 4-20 mm; 4-25 mm;
Max. Tabletting Pressure : 15 kN; 50 kN; 60 kN;
Max. Depth Of Filling : 12 mm; 16 mm; 20 mm;
Max. Tabletting Thickness : 6 mm; 6 mm; 7 mm;
Availability:
Quantity:
Inquiry Add to Inquiry List

This machine is mainly used in pharmaceutical, chemical, food, electronic and other industrial sectors. It is suitable for pressing tablets, catalysts, sugar tablets, calcium tablets, coffee tablets, powder metallurgy, electronic components and various agricultural fertilizer tablets in small batch production, laboratories, hospitals and other departments.

Electric Single Punch Tabletting Machine Specification:

ModelSPT-E15ASPT-E50SPT-E60
Production Capacity4200 - 4500 pcs/min4000 - 4200 pcs/min2600 - 3000 pcs/min
Max. Tabletting Diameter4-12 mm4-20 mm4-25 mm
Max. Tabletting Pressure15 kN50 kN60 kN
Max. Depth Of Filling12 mm16 mm20 mm
Max. Tabletting Thickness6 mm6 mm7 mm
Voltage220 V, 50 Hz220 V, 50 Hz220 V, 50 Hz
Motor Power550 W1100 W2200 W
Motor Speed1400 rpm1400 rpm1400 rpm
Size (W×D×H)(mm)630×360×560700×370×620700×400×700
Shipping Size (W×D×H)(mm)800×500×720770×460×780805×470×880
N.W/G.W.(kg)50/70110/127145/190


Previous:
Next:
Get Quotation/Become Distributor

Related Products

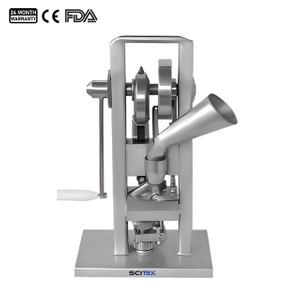

Manual Single Punch Tabletting Machine
