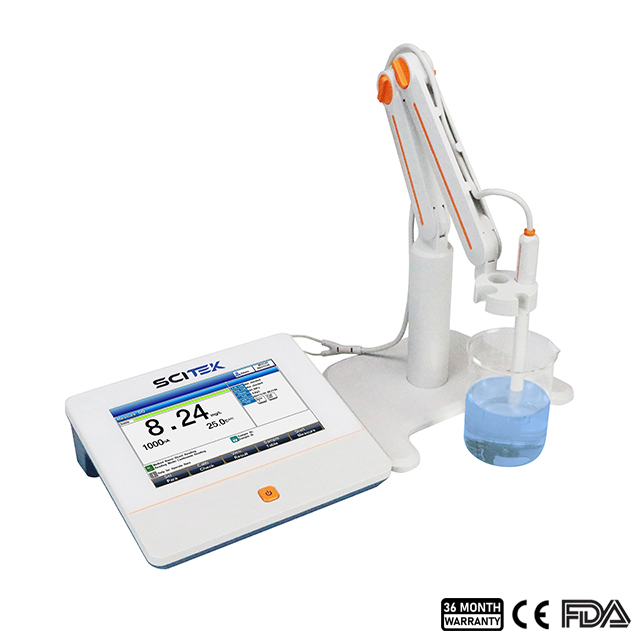

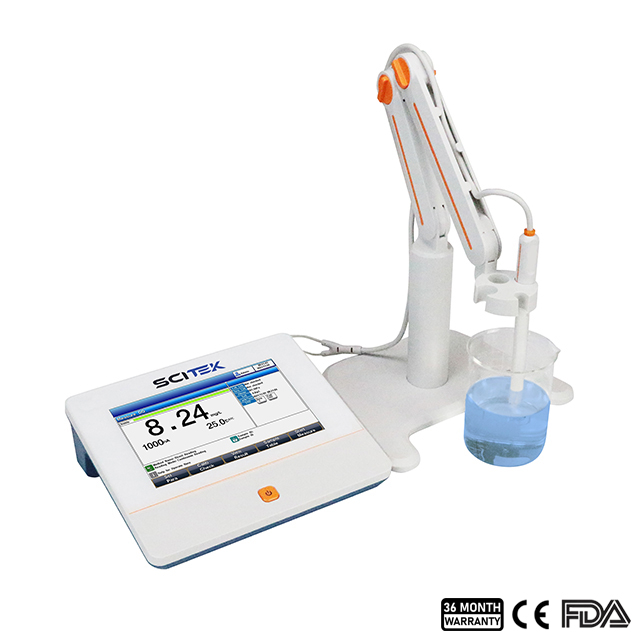

Benchtop Dissolved Oxygen Meter B500

Model : DO-B500

Range : 0.00 to 99.99 mg/L
Accuracy : ±0.10ppm, 0.00~50.00ppm; ±0.50ppm, 50.0~99.99ppm
Resolution : 0.01 mg/L
Sizes(W×D×H)(mm) : 220x195x68
Availability:
Quantity:

Benchtop Dissolved Oxygen Meter Specifications:

ModelDO-B500
ParametersDO/Temp(DO Saturation).
Dissolved Oxygen ConcentrationSensor TypePolarographic
Range0.00 to 99.99 ppm
Resolution0.01 ppm
Accuracy±0.10ppm, 0.00~50.00ppm
±0.50ppm, 50.0~99.99ppm
Calibration ReminderYes
Calibration PointsAir-saturated water or zero point
Barometric CompensationYes
Manual Salinity Factor CorrectionYes
DO SaturationRange(0.0 to 600)%
Resolution0.001
Accuracy±2.0%
TemperatureRange-10 to 135 ºC, 14 to 275 ºF
UnitºC, ºF
Resolution0.1
Accuracy±0.1
MeasurementReading ModeAuto-Read (Fast, Medium, Slow), Timed, Continuous
Reading PromptsReading, Stable, Locked
Temp. CompensationATC, MTC
Data ManagementData Storage1000 Groups
GLP FeaturesYes
Log ManagementYes
InputsDO with Temp. Probe4-pin aviation connector
OutputsUSBUSB 2.0 flash memory device, PC
RS 232Printer, scanner, auto-sampler
Display OptionsBacklightYes
Auto Shutdown1~60 min, off
IP RatingIP54
Date and TimeYes
GeneralElectricityAC Adapter, 100-240V AC input, DC24V output
Sizes(W×D×H)220x195x68
Shipping Size (W×D×H)(mm)370×305×330
N.W./G.W. (kg)0.95/2.5

Benchtop Dissolved Oxygen Meter Features:

DO-B500 is a accurate dissolved oxygen meter with high accuracy and low error. It typically uses an optical sensor to measure the luminescence of a special dye that responds quickly to changes in dissolved oxygen concentration. It is suitable for use in applications such as research laboratories.

  1. Fast Response Time: The meter has a fast response time that allows real-time monitoring of dissolved oxygen levels in a variety of liquids.

  2. Wide Measuring Range: It can measure dissolved oxygen concentration over a wide range, from 0.00 to 99.99 mg/L.

  3. Simple Operator Interface: Displays DO readings in real-time and provides superior data analysis capabilities with data backup, export, plotting, etc.

  4. USB interface: supports fast data transfer

  5. 1000 sets of internal memory to store data

  6. Automatic temperature compensation ensures accurate measurements over the full scale range.
