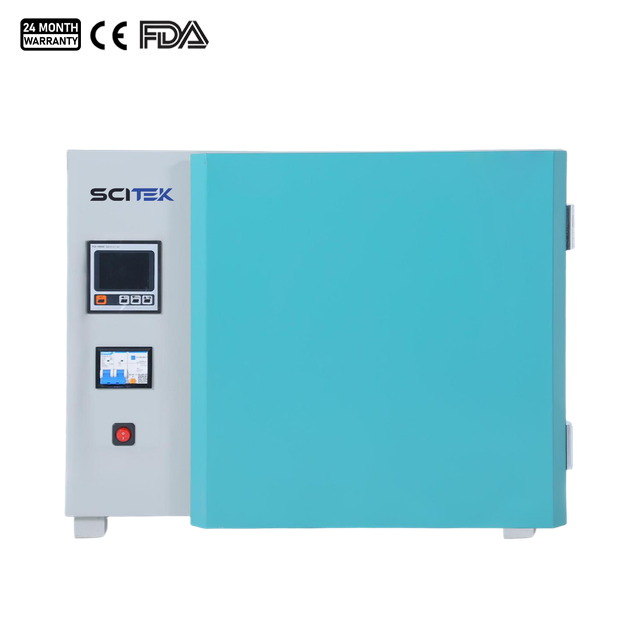

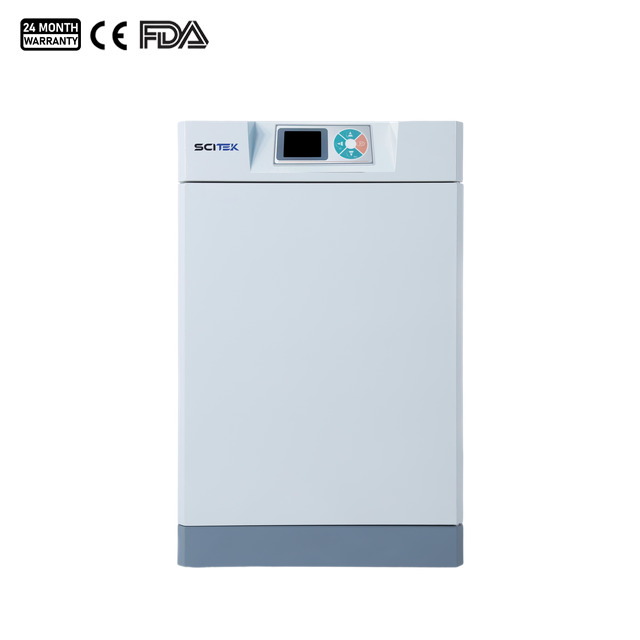

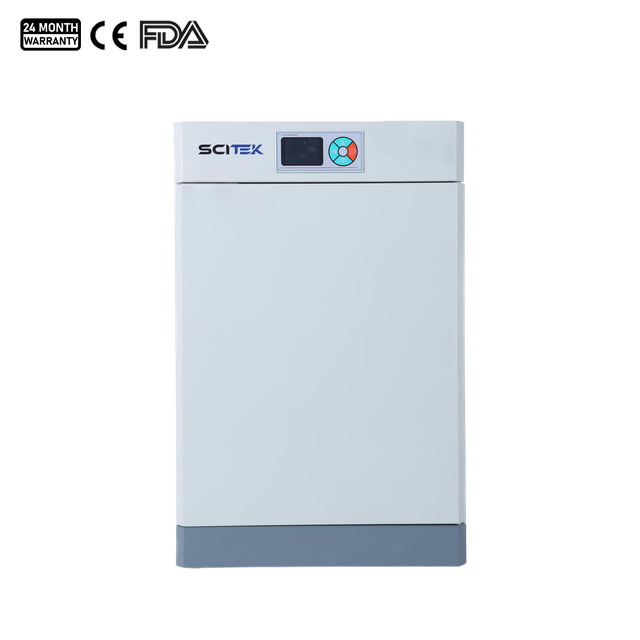

Constant Temperature Incubator ICB-32

Model: ICB-32; ICB-52; ICB-82; ICB-162; ICB-272; ICB-400E; ICB-600E ; ICB-1000E

Multiple Size: 35–1000 L
Temperature Switch: ℃/℉
Heating Method 3-sided: Jacket heating
Stackable Design to Save: Lab Space
Constant temperature incubator provides stable constant temperature for microbial culture and sample incubation testing.
Availability:
Quantity:

Constant Temperature Incubator Application:

Constant Temperature Incubator is primarily used for the static, static incubation of microorganisms such as bacteria, molds, and fungi. Widely used in fields such as clinical diagnostics, biopharmaceuticals, food and beverage quality control, environmental analysis, agricultural and forestry research, and university laboratories.Perfectly suited for microbial isolation and cultivation, constant-temperature sample storage, accelerated aging studies, and stability tests under various constant-temperature conditions. It is an essential constant-temperature workstation equipment for microbiological research, sample testing, and biological cultivation.

Constant Temperature Incubator Feature:

  1. LCD display for intuitive operation; supports constant temperature and timer function.

  2. Available in multiple sizes, with a maximum capacity of 1,000 L.

  3. User-friendly design: units are stackable to save laboratory bench space.

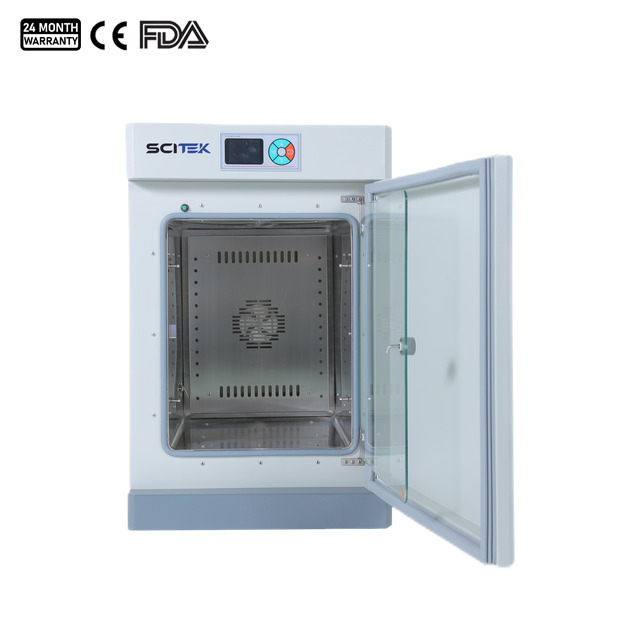

  4. Double-door design with a built-in glass viewing window for real-time monitoring of the samples inside the chamber.

  5. Optional accessories for expanded functionality: optional smart touchscreen, RS485/printer interface, standalone temperature limiter, and access ports.

  6. Up to 30 program segments, PID self-tuning, °C/°F unit switching, features a buzzer alert at the end of the cycle.

  7. 3-sided jacket heating combined with a rear air intake and bottom vertical airflow circulation system, featuring a large-impeller fan, ensures uniform temperature distribution within the chamber.

  8. Durable and easy-to-clean sheet metal construction with removable stainless steel shelves that are height-adjustable, high load capacity, and designed without hard-to-reach corners for easy cleaning.

  9. Earth leakage protection; thickened insulation layer; audible and visual over-temperature alarms with automatic heating shut-off; self-diagnostic fault detection; configurable high and low-temperature limit alerts.

Internal Tempered Glass Observation Door(1).png

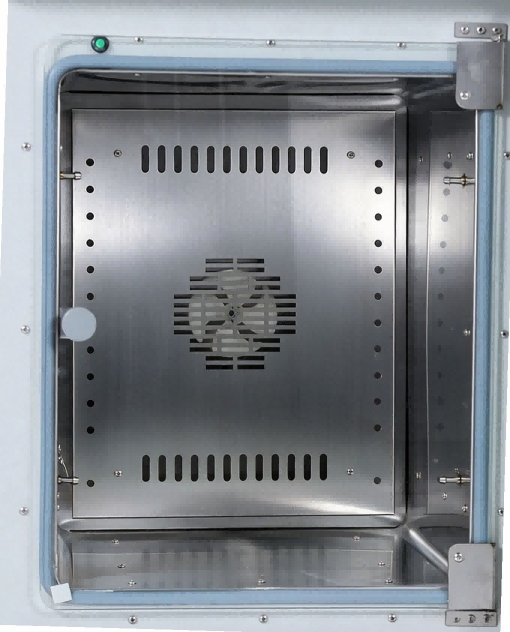

Internal Tempered Glass Observation Door

Constant Temperature Incubator Specification:

Model

ICB-32

ICB-52

ICB-82

ICB-162

ICB-272

ICB-400E

ICB-600E

ICB-1000E

Capacity

35 L

50 L

80 L

160 L

270 L

520 L

680 L

1000 L

Circulation Mode

Forced convection

Temperature Range

RT+5~65 °C

Temperature Uniformity

±2 °C (at 37 °C)

Temperature Resolution / Fluctuation

0.1°C/±0.5 °C

Timer

0~9999 min

Interior Chamber Material

Stainless steel

Housing Material

Cold-rolled steel with electrostatic coating

Shelving Material

Stainless steel

Standard Shelves Included

2 pcs

3 pcs

4 pcs

Internal Size (W×D×H)(mm)

320×300×315

350×350×410

400×400×500

500×500×650

600×600×750

640×600×1355

840×600×1355

890×740×1590

External Size (W×D×H)(mm)

650×470×510

510×520×800

580×570×890

690×670×1050

770×780×1150

810×780×1840

1010×780×1840

1060×920×2060

Consumption

200 W

300 W

400 W

600 W

750 W

1100 W

1400 W

2200 W

Power Supply

AC 110/220V, 50/60Hz

Shipping Size (W×D×H)(mm)

840×670×770

750×760×1080

780×760×1160

900×910×1320

1000×1010×1470

1030×1000×2100

1200×1000×2100

1120×1260×2250

G.W.

40 kg

60 kg

85 kg

110 kg

130 kg

210 kg

250 kg

280 kg
