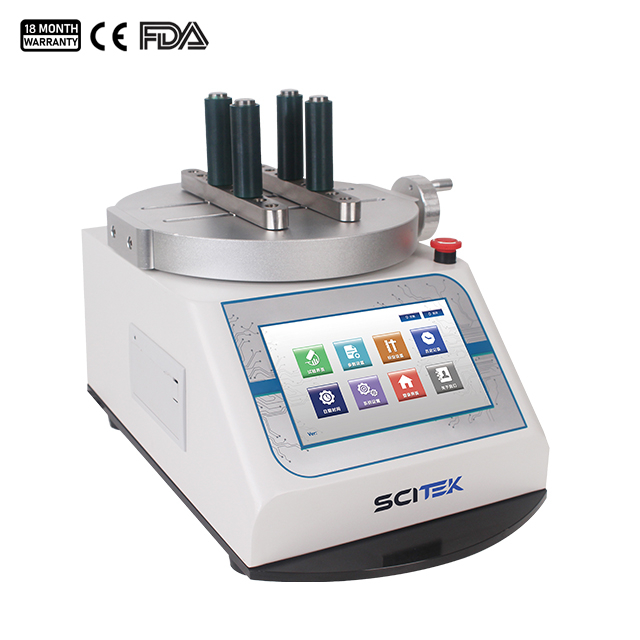

BCT-20 bottle cap torque tester is designed to measure the open force and lock force of the cap of bottle, spout bag and flexible tube package. The forces can influence the transportation and consumption of products greatly and are very important for the online and offline production.
Bottle Cap Torque Tester Features:
7-inch touch interface is more easier to operate.
Two measurable modes: open force and lock force.
Test results with standard units are convenient for reference and comparison of data.
Functions of settable numbers of tests, deletion of data and statistical analysis are attained.
The bottle cap torque tester is equipped with over-load protection, automatic zeroing, error alert, and power-off memory for safe operation.
RS232 port facilitates to transfer data and is connected with PC.
Bottle Cap Torque Tester Specifications:
| Model | BCT-20 |
|---|
| Load Cell Capacity | 20 Nm (Standard) |
| Accuracy | 1%FS |
| Resolution | 0.001 Nm |
| Clamping Range | Φ5 mm - Φ190 mm (Diameter) |
| Power Supply | AC 220V 50Hz |
| Size(LxWxH)(mm) | 310×390×320 |
| Net Weight | 17 kg |
| Shipping Size | 400x550x500mm |
| Gross Weight | 25kg |
| Standard | Micro-Printer |
| Optional | Professional Software, Communication Cable |
Applications of Bottle Cap Torque Tester:
This friction tester is equipped with different grips for COF tests of many materials. And customization is also available for special materials tests.
Basic Applications:
Bottle Package: Open and lock force test of the bottle cap of bottled package for food, pharmaceuticals, e.g, beverage or tablet bottle.
Flexible Tube Package: Open and lock force test of flexible tube package for food, pharmaceuticals, and cosmetics, e.g, eye-drop, hand cream and shoe polish, etc.
Extended Applications:
Screw: Open and lock force test of the screw.
