Benchtop pH Meter Specifications:
| Model |
| PH-B500 |
|---|
| Parameters |
| pH/Temp.(mV/ORP) |
| pH | Range | -2.000 to 20.000 pH |
| Resolution | 0.1, 0.01, 0.001pH |
| Accuracy | ±0.002 pH |
| Calibration Points | Up to 6 |
| Standard Customization | Yes |
| Calibration Reminder | Yes |
| Standard Recognition | NIST, GB, DIN, USA, MERK, JIS buffers |
| Slope Limit | Yes |
| mV/ORP | Range | -2000.00 to 2000.00 mV |
| Resolution | 0.1, 0.01 mV |
| Accuracy | ±0.1 mV or ±0.03% |
| EH ORP Mode | Yes |
| ORP Calibration Points | 1 custom point (relative mV) |
| Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
| Unit | ºC, ºF |
| Resolution | 0.1 |
| Accuracy | ±0.1 |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temp. Compensation | ATC, MTC |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes |
| Log Management | Yes |
| Inputs | pH Electrode | BNC(Q9) |
| Temp. Probe | 4-pin aviation connector |
| Outputs | USB | USB 2.0 flash memory device, PC |
| RS 232 | printer, scanner, auto-sampler |
| Display options | Backlight | Yes |
| Auto Shutdown | 1~60 min, off |
| IP Rating | IP54 |
| Date and Time | Yes |
| General | Electricity | AC Adapter, 100-240V AC input, DC24V output |
| Sizes(W×D×H)(mm) | 220×195×68 |
| Shipping Size (W×D×H)(mm) | 370×305×330 |
| N.W./G.W. (kg) | 0.9/5.5 |
Benchtop pH Meter Features:

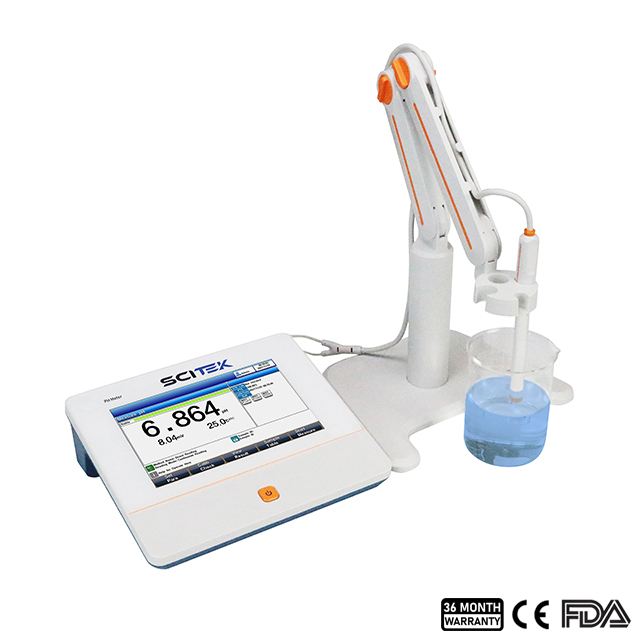

This is a 0.001-level benchtop pH meter with a high-definition color touchscreen and three resolution options.
In addition to the usual features such as automatic temperature compensation, automatic shutdown, power failure protection and firmware upgrade, it also has the following features:
Supports IP54 protection
High-precision pH electrode, support electrode diagnostic function
Intelligent endpoint recognition, capable of automatic reading
Support 1-6 points calibration, ORP electrode 1 point calibration
Autosampler, capable of automatic batch measurement and testing samples
Automatic identification of 6 groups of buffer solutions such as USA, GB, DIN, MERK, NIST, JIS, etc.
Comply with GLP specifications, support data storage of 1000 sets
USB interface and U disk read/write. Data transmission is more convenient.
Supports GMP management and operation log, realizing complete traceability and data tracking.
Connect to a printer to print the measurement results directly and select print format.
