Benchtop Dissolved Oxygen Meter

Model : DO-B12

Measuring Range : 0.00 - 90 mg/L (ppm)
Resolution : 0.01/0.1
Accuracy : ± 0.5%
Response Time : ≤30s (25℃, 90%response)

Stability : (±0.07mg/L)/1h
Response Time : ≤30s (25℃, 90% response)

Sizes(W×D×H)(mm) : 215x170x40mm

This benchtop dissolved oxygen meter is perfect for simplified, affordable laboratory testing and data logging.

Availability:

Product Description

Benchtop Dissolved Oxygen Meter Specifications:

Model	DO-B12
Display Parameters	Concentration, Saturation, Temperature
DO	Range	0.00 - 90 mg/L (ppm)
	Resolution	0.01/0.1
	Accuracy	± 0.5%
	Saturation	0.0 - 600%
Saturation	Resolution	0.10%
Saturation	Accuracy	±2.0%FS
Temperature	Measuring Range	(-10～110)℃
	Resolution	0.1℃
	Accuracy	±0.1℃
	Compensation Range	(0 ~ 45)℃ (automatic)
Salinity Compensation Range		(0.0～50.0)g/L
Air pressure	Compensation Range	(80 ~ 105)kPa (automatic）
	Resolution	1
	Accuracy	± 2%
Stability	(±0.07mg/L)/1h
Response Time	≤30s (25℃, 90% response)
Other Parameters	Display	7-inch colored capacitive touch screen
	Data Storage	1000 sets
	Power	12V (110-220, 50-60Hz adapter)
	Communication Interface	USB, RS232, Bluetooth
	Size & Weight	240×170×70mm/600g
Working Conditions	Temperature	5 ~ 40 ℃
	Humidity	5-85%
	IP Grade	IP54

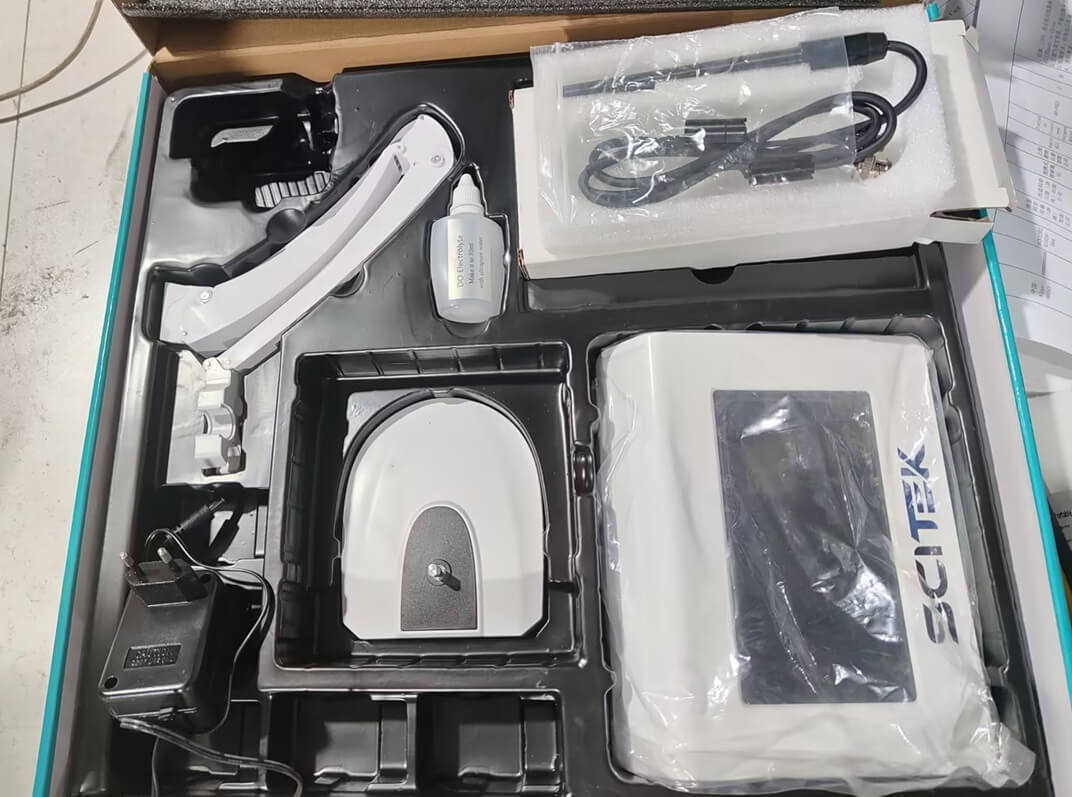

Meter Kits	1) DO meter
	2) Electrode holder
	3) Two-in-one electrode that consists of DO electrode and temperature probe.
	4) DO filling solution
	5) Membrane cap
	6) Cathode polishing paper
	7) Power adapter
External Size	215x170x40mm
Shipping Size	475x430x75mm
Net /Gross Weight(kg)	0.6/3

Benchtop Dissolved Oxygen Meter Features:

Large LCD screen with controllable white backlight.
Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
DO mode has functions of ATC, auto salinity compensation and manual pressure compensation.
New structure polarographic DO electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special DO electrode calibration sleeve, only need 3~5 minutes for polarization.
Combined diaphragm cap makes it extremely convenient to replace the sensitive membrane just by screwing the new cap to the electrode.
Grade IP57 and equipped with suitcase for outdoor purpose.

Details of Benchtop Dissolved Oxygen Meter:

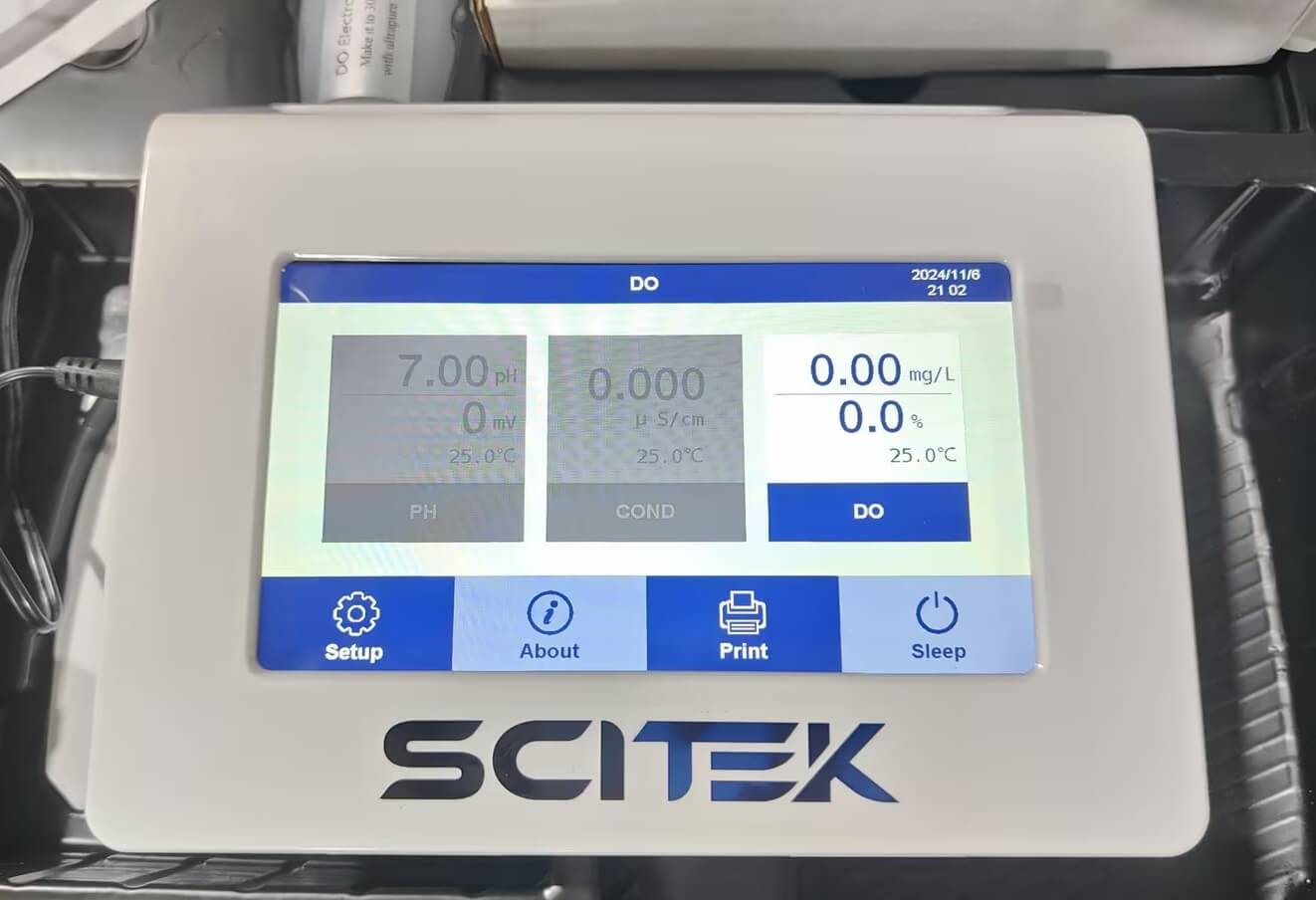

The benchtop dissolved oxygen meter's large screen display shows oxygen concentration, temperature and other data in real time, and supports multiple unit switching, making it easy for users to take different measurements and analyze them according to their needs.

Benchtop Dissolved Oxygen Meter

Model	DO-B12
Display Parameters	Concentration, Saturation, Temperature
DO	Range	0.00 - 90 mg/L (ppm)
Resolution	0.01/0.1
Accuracy	± 0.5%
Saturation	0.0 - 600%
Saturation	Resolution	0.10%
Accuracy	±2.0%FS
Temperature	Measuring Range	(-10～110)℃
Resolution	0.1℃
Accuracy	±0.1℃
Compensation Range	(0 ~ 45)℃ (automatic)
Salinity Compensation Range	(0.0～50.0)g/L
Air pressure	Compensation Range	(80 ~ 105)kPa (automatic）
Resolution	1
Accuracy	± 2%
Stability	(±0.07mg/L)/1h
Response Time	≤30s (25℃, 90% response)
Other Parameters	Display	7-inch colored capacitive touch screen
Data Storage	1000 sets
Power	12V (110-220, 50-60Hz adapter)
Communication Interface	USB, RS232, Bluetooth
Size & Weight	240×170×70mm/600g
Working Conditions	Temperature	5 ~ 40 ℃
Humidity	5-85%
IP Grade	IP54
Meter Kits	1) DO meter
2) Electrode holder
3) Two-in-one electrode that consists of DO electrode and temperature probe.
4) DO filling solution
5) Membrane cap
6) Cathode polishing paper
7) Power adapter
External Size	215x170x40mm
Shipping Size	475x430x75mm
Net /Gross Weight(kg)	0.6/3

Benchtop Dissolved Oxygen Meter B980

Benchtop Dissolved Oxygen Meter, 2 Calibration Points
