Automatic Oxygen Bomb Calorimeter Specifications:
| Model | OBC-1A+ |
| Heat Capacity | 14000 J/K～15000 J/K |
| Resolution | 0.001 K |
| Measurement Accuracy | ≤ 60J/g |
| Temperature Measurement Range | 10 ℃～35 ℃ |
| Repeatability | ≤0.2% (Grade C) |
| Pressure Endurance of Oxygen Bomb | 20 MPa |
| Ambient Temperature | (15~28) ℃ |
| Relative Humidity | ≤85% |
| Total Power Consumption | ≤150W |
| Size(L×W×H)(mm) | 600×480×460 |
Automatic Oxygen Bomb Calorimeter Feature:
The oxygen bomb calorimeter adopts technology of single chip machine, touch screen, windows system
The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
This automatic oxygen bomb calorimeter adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
The inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with electric stirrer to make sure the uniform temperature in water bath.
The external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.
Details of Automatic Oxygen Bomb Calorimeter:

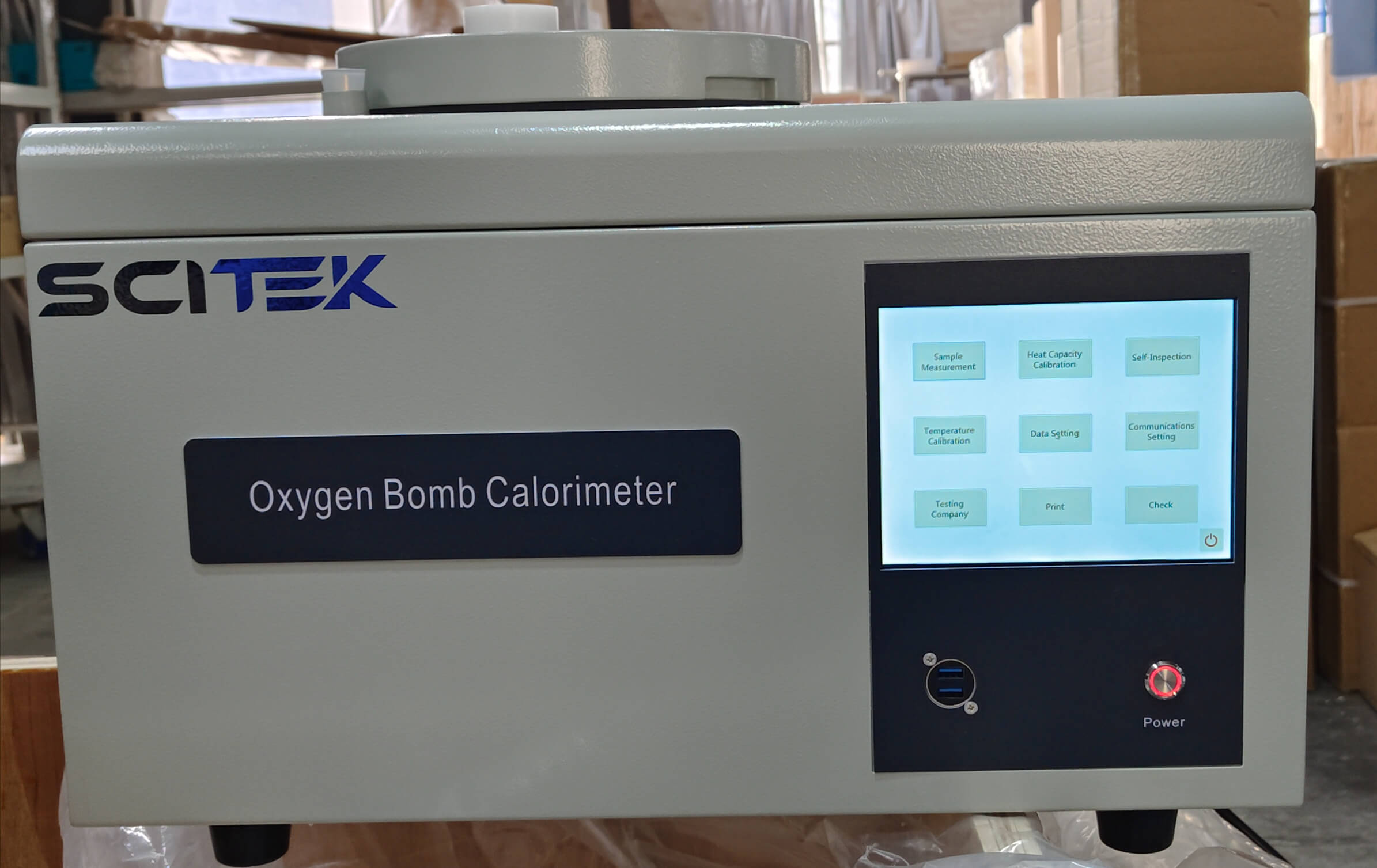

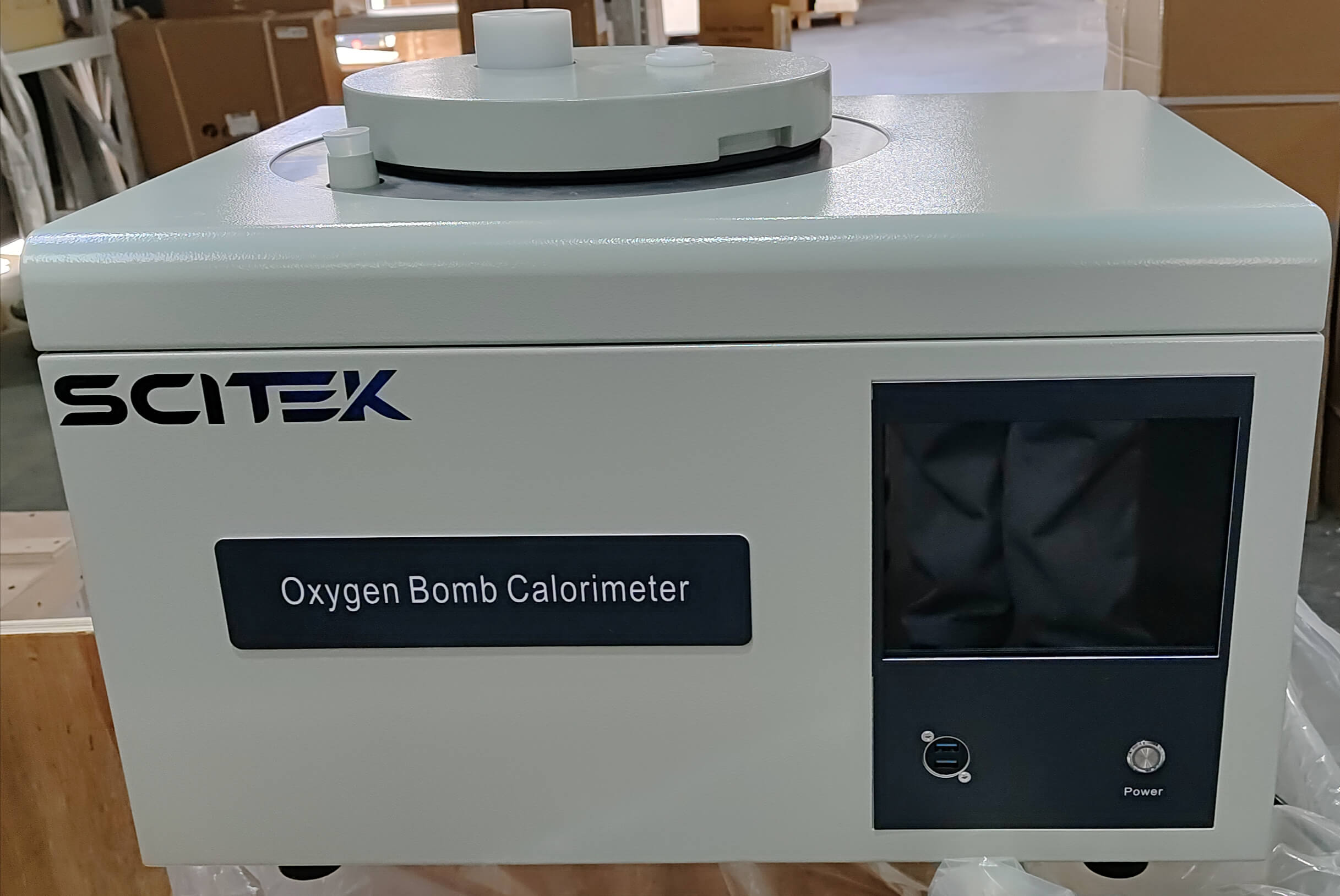

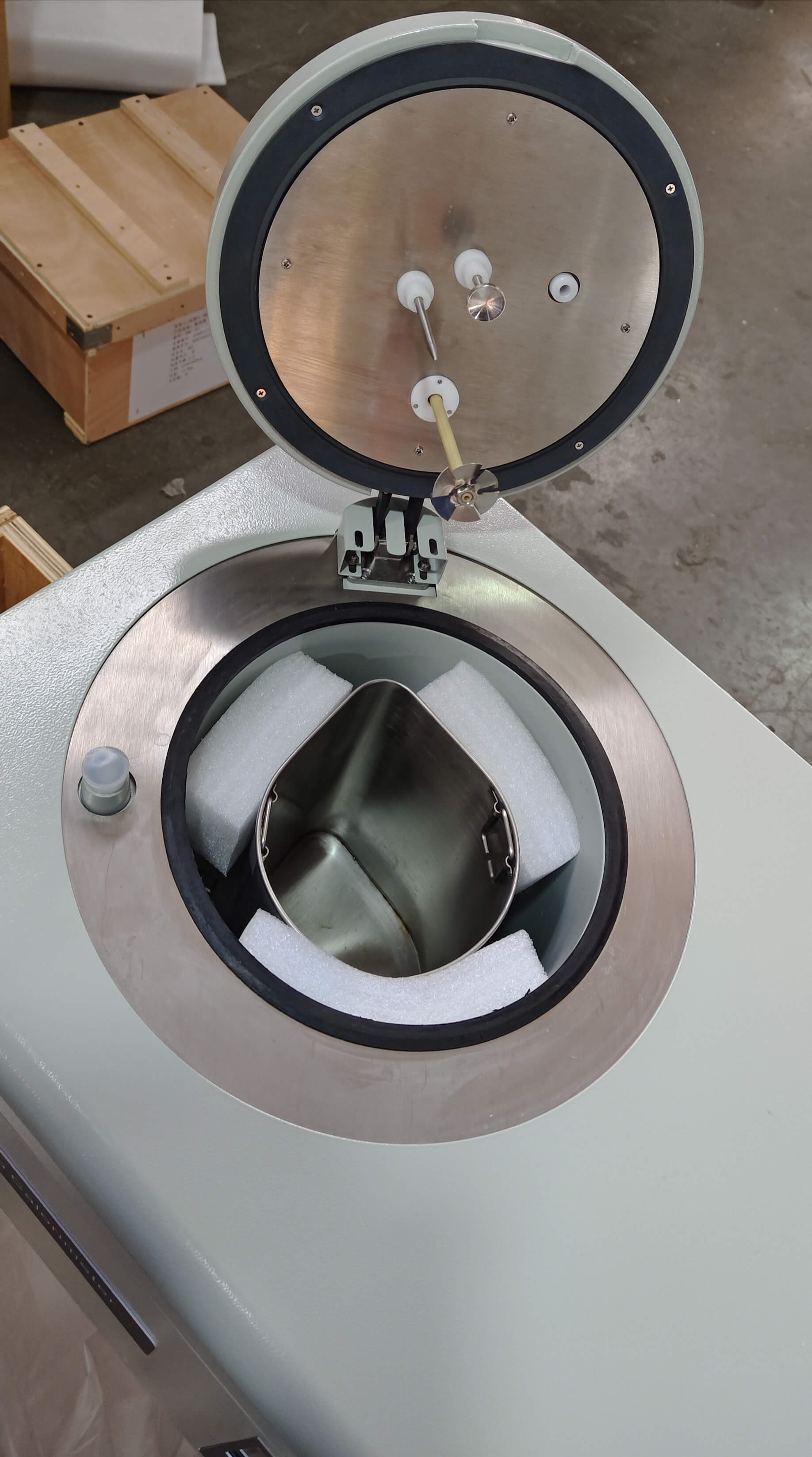

The interior of the oxygen bomb calorimeter, with the combustion chamber visible when the top cover is opened, contains the oxygen bomb assembly for placing the sample to be measured for calorific value determination. The screen has several function options for parameter setting and experiment monitoring.

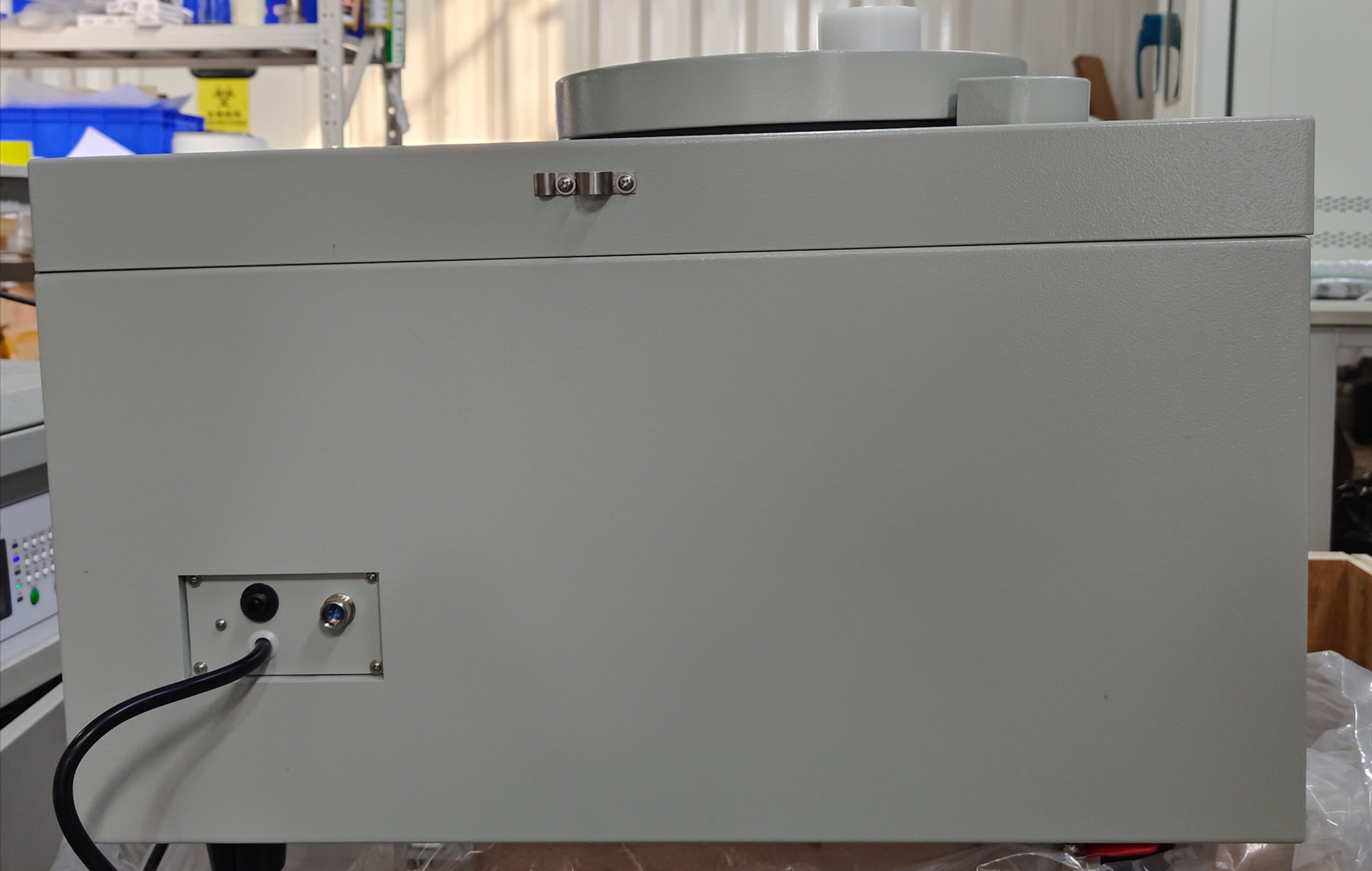

The body is made of metal with ventilation cooling holes and a power connector for laboratory environments.
The automatic oxygen bomb calorimeter is protected by a sturdy wooden case, neatly stacked to ensure protection from damage during transportation and is suitable for long distance transportation and storage.
