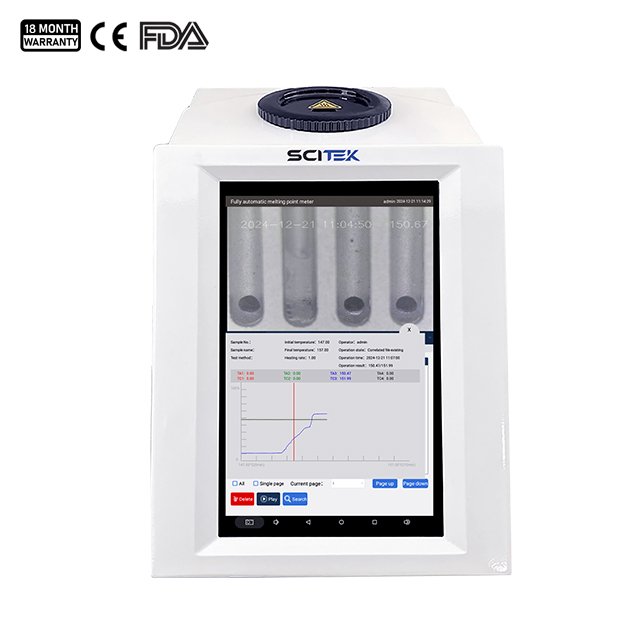

Automatic Melting Point Apparatus

Model : MPA-70I; MPA-80; MPA-90I

Capillary Position Capacity : 4
Magnification of Lens : 20x
Sample Storage Port : 2
Shipping Size (WxDxH)(mm) : 400x350x340
The melting point apparatus are fast and accurate, and fully automatic operation ensures that every user can analyze samples easily.

Melting point apparatus occupies an important position in the chemical industry and medical research. It is an essential instrument for the production of food, medicine, spices, dyes and other organic crystal substances.

Automatic Melting Point Apparatus Specifications:

Capillary SizeOuter φ1.4mm, inner φ1.0mmOuter φ1.4mm, inner φ1.0mm
Outer φ 4mm, inner φ3.6mm
Capillary Position Capacity4
Magnification of Lens20x
Detection MethodFully automatic
Sample Storage Port2
Display10-inch high-definition color screen
Temperature RangeRT-360℃RT-400℃RT-420℃
Temperature Resolution0.1℃0.01℃
Heating Rate0.1℃--20℃ (200 steps, infinitely adjustable)
Temperature Rising Resolution0.1℃0.01℃
Heating Rate0.1℃/Min: 20℃/Min
Accuracy±0.2℃ (<200℃)
±0.4℃ (>200℃)
±0.2℃ (<200℃)
±0.5℃ (>200℃)
Temperature Control MethodPID precise temperature control
Video FunctionTaking pictures and video
Video ReplayYes
Storage Capacity32G64G128G
Communication PortsUSB, Wi-Fi, RS232
Number of Managed Users>300, four-level management>500, three-level management>500
Audit TrialYes
Power Supply220V, 50Hz
Shipping Size (WxDxH)(mm)400x350x340
Gross Weight (KG)6.5

Automatic Melting Point Apparatus Features:

  1. Automated integration to realize one-click measurement function.

  2. High-definition video replaces the traditional microscope with high visual field.

  3. Automatically record the melting range, initial melting and final melting.

  4. Export PDF and Excel data from USB flash drive, anti-tampering function.

  5. Optional printer to print data directly.

  6. Data retrieval function: The automatic melting point apparatus is convenient for users to quickly find the data they want in a large number of databases
