Automated External Defibrillator: Recommendation and Uses Explained

Views: 801     Author: Yammi     Publish Time: 2024-08-01      Origin: Site

When someone collapses from sudden cardiac arrest, the heart stops pumping blood — and every minute without treatment cuts the chance of survival by roughly 7–10%. An automated external defibrillator (AED) is the one piece of equipment that can reverse the most common cause of that collapse. It is designed so that a bystander with no medical training can use it correctly, simply by following voice prompts.

The popularity of automated external defibrillators in public places has allowed more people to receive timely first aid, helping to reduce the risk of death from sudden cardiac arrest. This article will take an in-depth look at an automated external defibrillator's definition, its uses, steps, and buying guidelines.

automated external defibrillators (1)


What is an automated external defibrillator


An Automated external defibrillator (AED) is a medical device used to deliver an electric shock to a patient during shock or cardiac arrest to restore normal heart rhythm. It delivers an electric current to the heart through an electric shock to help the heart restore its normal rhythm. In addition to hospitals, many public places are now equipped with portable AEDs in case of emergency. Portable AEDs are designed to be simpler and easier to use, so even non-professional medical personnel can quickly master their use.


What is automated external defibrillator used for

aed-use-purpose(1)


The primary purpose of an AED is to save the life of someone in sudden cardiac arrest caused by a shockable rhythm — most often ventricular fibrillation (VF) or pulseless ventricular tachycardia (VT). In these rhythms the heart still has electrical activity, and a timely shock can "reset" it so a normal rhythm can return.

 Important: An AED is not a "flat-line" machine. It will not shock a heart in asystole (a true flat line) or pulseless electrical activity. In those cases the AED will analyse the rhythm and advise no shock — the correct response is to keep doing high-quality CPR. This is exactly why CPR and the AED are used together.

  • Typical settings where AEDs are deployed

  • Public places: airports, train stations, shopping malls, stadiums, museums and schools.

  • Workplaces: offices, factories, warehouses, hotels and large commercial buildings.

  • Homes: especially where a family member has known heart disease or a family history of sudden cardiac arrest.

  • Sports and fitness facilities: gyms, swimming pools, golf clubs and community sports grounds.

  • Clinical and dental settings: clinics, dental surgeries and outpatient centres.

  • Vehicles: ambulances, mobile clinics and some public-transport fleets.


How Does an AED Work?


  1. Sense: Two adhesive pads pick up the heart's electrical signal and send it to the device.

  2. Analyse: A microprocessor classifies the rhythm as shockable or non-shockable within seconds.

  3. Advise: Voice and visual prompts tell the rescuer to stand clear or to continue CPR.

  4. Shock: Modern AEDs deliver a biphasic waveform — current flows first in one direction, then reverses.

  5. Re-analyse: After a shock (or a 2-minute CPR cycle), the AED checks the rhythm again and repeats as needed.


How to Use an AED: The Correct 6-Step Sequence


automated external defibrillators (4)

Note: If you have seen older instructions describing conductive gel, paddle electrodes and manual energy selection, that is a manual defibrillator. An AED uses pre-gelled adhesive pads, selects the energy itself, and requires only that you follow its prompts.

In an emergency, we remain calm and operate the AED quickly. Learning to use the AED proficiently can go a long way in safeguarding the patient's life. Next is a 6-step guide to using an AED:

1. Find a relatively flat site and lay the patient flat. Remove chest clothing. Then, tap the patient's shoulder and shout to check their consciousness. If they are unresponsive and not breathing normally, call the emergency number (or ask someone to) and start CPR immediately.  While waiting for the paramedics to arrive, begin CPR as soon as possible to maintain the rescue.

2. Turn on the AED: First find the AED. Turn on the power switch. Open the lid or press the power button. Follow the voice prompts.

3. Attach the electrode pads. Bare and dry the chest. Place one pad on the upper right chest (below the collarbone) and the other on the lower left side (below the armpit). The pads carry a diagram showing exactly where they go.

4. Let the AED analyse. Stop CPR and make sure no one is touching the patient while the device analyses the rhythm.5. Deliver the shock if advised. If a shock is recommended, check that everyone is clear, then press the flashing shock button. If no shock is advised, immediately resume CPR.

6. Continue CPR in 2-minute cycles. Keep going until emergency services arrive, the person starts breathing normally, or you are too exhausted to continue.

automated external defibrillators (2)


AED vs. Manual Defibrillator: What's the Difference?


Feature AED Manual defibrillator
Operator Any trained or untrained bystander Trained clinicians only
Rhythm reading Automatic Operator reads the ECG
Energy selection Automatic Manual
Electrodes Adhesive pads Paddles or pads
Typical use Public access, first response Hospitals, ambulances, critical care


Automated external defibrillator Recommendations:


ED-5S

Exconomical AED

Waveform : Biphasic truncated exponential

Energy : 200-Joues max.

Child mode: 50/50/75 Joules

Adult mode: 100/150/200 Joules

Size(W×D×H)(mm) : 300x240x80

ED-8000C

Top Automated External Defibrillator

Screen : 7 inches (17.7cm) diagonally

Sweep Speed : 12.5/25/50mm/sec

Information : Heart Rate, Nibp, Spo2, Temp, Delivered Energy
Size(W×D×H)(mm) : 320x205x410

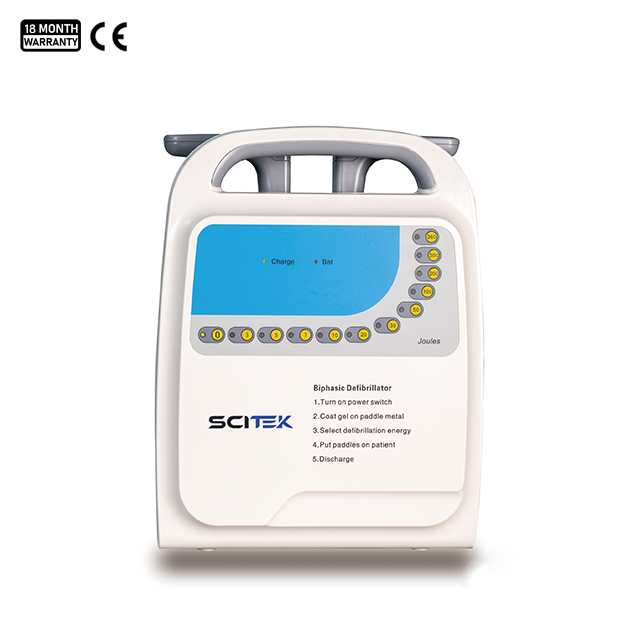

ED-8000A

Popular Automated External Defibrillator

Waveform : Biphasic

Energy Selection : Selectable at 0, 3, 5, 7, 10,

20, 30, 50, 100, 200, 300, 360 joules

Size(W×D×H)(mm) : 330x220x410


Maintenance and Training


  1. Check monthly: confirm the status indicator shows "ready" and that pads and battery are within expiry.

  2. Register the device: many regions ask you to register an AED with local emergency services.

  3. Train your team: hands-on CPR + AED training dramatically improves confidence and response speed.

  4. Replace consumables: pads are typically single-use; batteries last a few years depending on the model.


How much does it cost to buy an AED?


The cost of purchasing an automated external defibrillator varies depending on the brand, features and accessories. Generally, AEDs range in price from $500 to $5,000. Basic AEDs are usually less expensive, while high-end models have more features and training options. It is essential to choose the device that best suits your needs.


Can a civilian buy an automated external defibrillator?


Yes, a civilian can buy an AED, and regulations in many countries and regions allow civilians to purchase and use these devices. As awareness of the importance of automated external defibrillators grows, many places are actively promoting the availability of AEDs and their use by the public.


Do you need a prescription to buy an AED?


Typically, an AED can be purchased without a prescription. Automated external defibrillators are designed to be easily accessible to the public and, therefore, do not require a prescription. However, specific regulations may vary from country to country and should be checked before purchasing.


Conclusion


In conclusion, automated external defibrillators (AEDs) are vital in improving the survival rate of cardiac arrest patients. Knowing how to use an AED, its functions, etc., can help others in critical situations and save lives. Individuals can learn how to use an AED correctly so that they can act quickly and confidently in the event of a sudden cardiac arrest emergency.
