Anaerobic Chamber Specifications:
| Model | ICB-3A | ICB-3AI |
Time for Creating Anaerobic
State in Sample Chamber | ＜5 minutes | ＜5 minutes |
Time for Creating Anaerobic
State in Operation Chamber | ＜1 hr | ＜1hr |
Anaerobic Environment
Maintenance Time | ＞12 hrs.(when no supply of mixed gas) | ＞12hrs(when no supply of mixed gas) |
| Temperature Range | RT+3~60℃ | RT+3~60℃ |
| Temperature Stability | ＜±0.3℃ | ＜±0.3℃ |
| Temperature Uniformity | ＜±1 ℃ | ＜±1℃ |
| Display Resolution | 0.1℃ | 0.1℃ |
| Timing Range | 1~9999min | 1~9999min |
| Power Rating | 600W | 600W |
| Power Supply | AC 220V, 50HZ | AC 220V, 50HZ |
| Internal Chamber Size(W×D×H)(mm) | 300x190x290 | 300x190x290 |
| Operation Chamber Size(W×D×H)(mm) | 820x660x670 | 820x660x670 |
| External Size(W×D×H)(mm) | 1260x730x1380 | 1260x730x1380 |
| Shipping Size(W×D×H)(mm) | 1390x920x1560 | 1330x870x1580 (Export wooden case) |
| N.W./G.W. (kg) | 240/224 | 240/260 |
Anaerobic Chamber Features:
Microprocessor controlled anaerobic incubator with touch screen display, high precision temperature and gas control for accurate operation.
Integrated UV sterilizer for effective bacterial contamination prevention.
Solenoid valve with adjustable flow control for gas input.
Stainless steel cultivation chamber with impact-resistant glass window.
Deoxidization catalyst in the operation room.
Double widen door design for increased petri dish capacity.
Imported oxygen sensors for Real-Time monitoring of oxygen concentration.
Leakage protection for enhanced safety.
Special inoculating rod sterilizer and wax melting disinfection device in the operation room.
USB interface for data storage up to 6 months.
Detals of Anaerobic Chamber (ICB-3A):

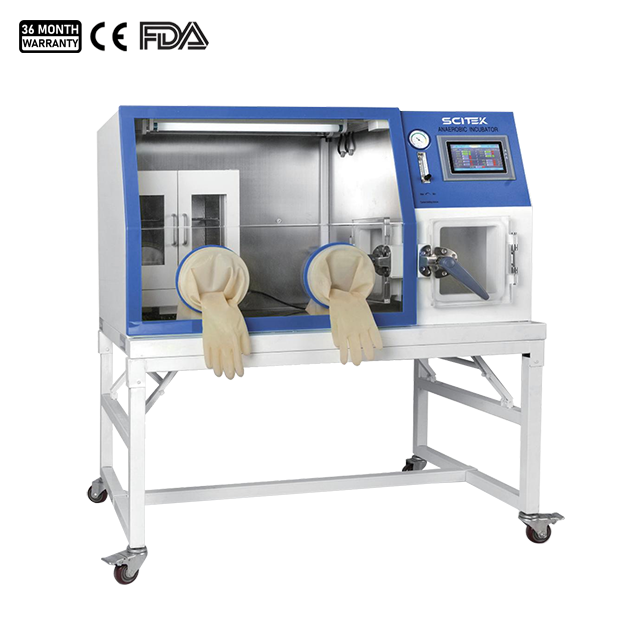

Transparent UV-protected viewing windows and a gas-tight access chamber facilitate anaerobic sample transfer while maintaining a stable anaerobic environment.
The anaerobic chamber is equipped with an intelligent digital display that shows the oxygen level, humidity, temperature and other parameters in the chamber in real time.
The back of the anaerobic chamber is also equipped with a power port and various communication ports for easy connection to external equipment or sensors.
