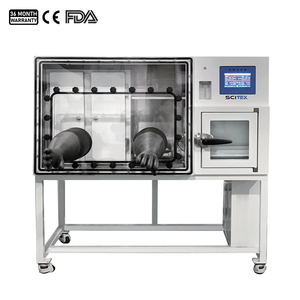

Anaerobic Chamber, Full SS 304 Made

Model : ICB-2A

Operation Chamber Size(W×D×H) : 950x670x750mm
Power Rating : 1500W
Time for Creating Anaerobic State in Sample Chamber : <5 minutes
Time for Creating Anaerobic State in Operation Chamber : <1hr
Anaerobic Environment Maintenance Time : >12hrs (when no supply of mixed gas)
Temperature Range : RT+3~60℃
Availability:
Quantity:

Anaerobic Chamber Specifications:

ModelICB-2A
Time for Creating Anaerobic State in Sample Chamber<5 minutes
Time for Creating Anaerobic State in Operation Chamber<1hr
Anaerobic Environment Maintenance Time>12hrs(when no supply of mixed gas)
Temperature RangeRT+3~60℃
Temperature Stability<±0.3℃
Temperature Uniformity<±1℃
CO2 Range0~20%
CO2 Control Accuracy±0.1% (imported sensor)
Humidity Control Range50~90%RH
Humidity Fluctuation±3%RH
Power Rating1500W
Shell MaterialFull 304 stainless steel
Power SupplyAC 220V, 50Hz (can customized)
Internal Chamber Size (W×D×H)(mm)420x290x475
Operation Chamber Size (W×D×H)(mm)950x670x750
Sampling Chamber Size (W×D×H)(mm)400x300x320
External Size (W×D×H)(mm)1450x740x1420
Shipping Size (W×D×H)(mm)1510x920x1520
N.W./G.W. (kg)260/310

Anaerobic Chamber Features:

  1. This workstation integrates CO2, constant temperature, and humidity functions, serving as a complete anaerobic incubator.

  2. It can operate as an anaerobic or micro-oxygen chamber, allowing control of oxygen concentration from 0% to 10%.

  3. The fully automatic humidity control system ensures the prevention of Petri dishes from drying out.

  4. Sample transfer is made easy, with the capability to transfer 40 pcs of 90mm plates at a time. Additionally, a single dish transfer device is available as an option.
    For efficient vacuum and nitrogen gas filling, the workstation features an automatic sleeve gassing system operated by a foot-switch. It comes equipped with a standard external vacuum pump.

  5. The use of a high-efficiency palladium catalyst ensures oxygen concentration remains below 0.1% without frequent activation.

  6. Sterilization is facilitated through the inclusion of a UV lamp.

  7. The gas replacement path is fully automated and offers both positive pressure and negative pressure protection.

  8. The workstation is capable of precise CO2, humidity, and temperature control.

  9. A unique oil bottle type pressure relief design provides protection against internal positive pressure and prevents air leakage.

  10. Multiple low-pressure and over-temperature protection devices are incorporated for enhanced safety.

  11. The front cover can be easily lifted off, allowing for the placement of large instruments or thorough cleaning.

  12. A standard power socket is provided for added convenience.

  13. The touch screen display directly shows the oxygen percentage of the operating room, enabling easy observation.

  14. Latex gloves are included for comfortable and flexible operation.

  15. An optional bare-hand operating system is available, ensuring comfortable operation without the risk of skin allergies.
