Color Doesn't Lie — Your Eyes Do: A Guide to Color Spectrophotometers

Why do products manufactured using the same formula and the same process still exhibit visible color differences from batch to batch? The root of the problem lies in the fact that relying on the human eye as the “judge” of color is inherently unreliable. The value of a color spectrophotometer lies precisely in transforming this subjective dispute into an objective data-driven assessment. It uses measurement data to tell you whether there are differences—and where exactly they lie.

This article will explain the measurement principles and optical structure of color spectrophotometers, clarifying why they are a worthwhile investment, how they work, and which key specifications you must understand before making a purchase.

What is a Color Spectrophotometer and How Does It Work?

A color spectrophotometer is a laboratory instrument used to quickly measure the color of samples. Samples can be solid, liquid, opaque, translucent, or transparent. Measurement methods vary depending on the sample’s shape and transparency.

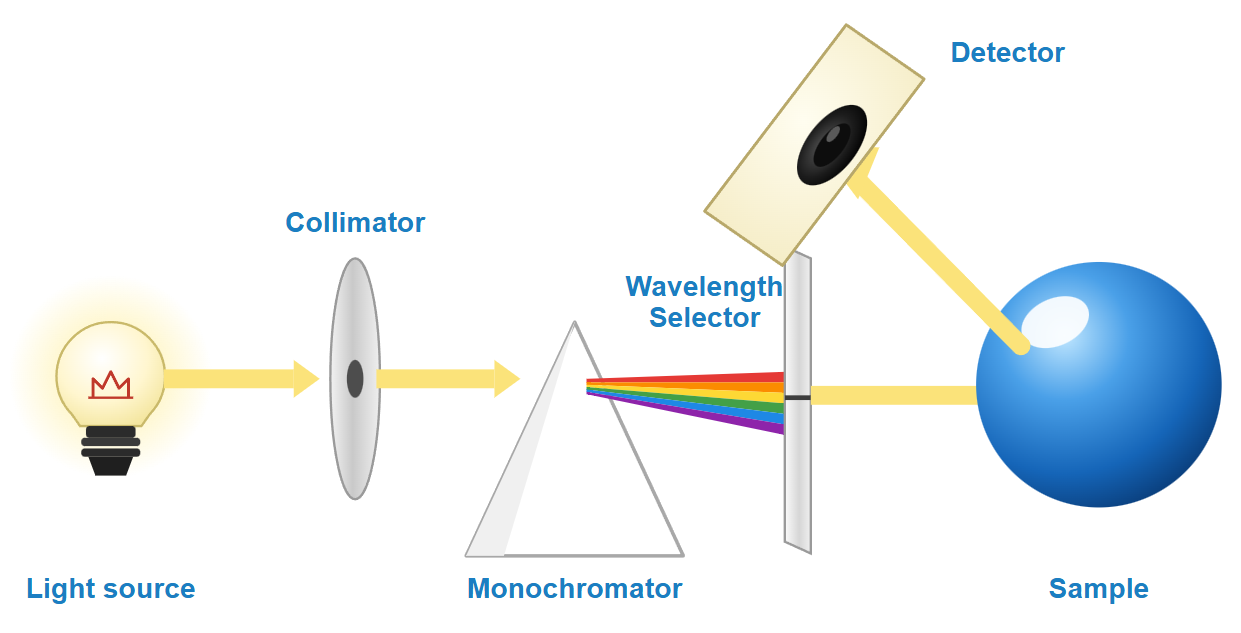

It works as follows:

A color spectrophotometer uses a grating (or an array of interference filters) to split the light reflected from a sample into monochromatic light distributed by wavelength. A detector then measures the intensity of each wavelength point by point, yielding a spectral reflectance curve. The instrument subsequently converts this curve into color values—such as L*a*b* and trichromatic values—based on CIE standard observer and standard illuminant data. This enables the color spectrophotometer not only to determine color differences but also to analyze color and haze, as well as to predict how a sample will appear under different light sources.

What Exactly is it Measuring?

The colors perceived by the human eye are essentially the reflection or transmission of different bands of visible light (wavelengths approximately 380–780 nm) by an object. A white surface reflects almost all light, while a black surface absorbs almost all of it. The core function of a color spectrophotometer is to measure this reflection/transmission behavior point by point according to wavelength. After data conversion, this forms a “spectral reflectance curve.” This is color data that is free from external interference.

Why is it Worth the Investment?

When many laboratories or companies are considering purchasing a color spectrophotometer, their first reaction is often, “How can a device that measures color be so expensive?” To answer this question, we must first consider the value behind this instrument.

The high level of consistency among color spectrophotometers ensures that laboratories and suppliers use the same color data. By providing traceable, auditable color records for products, it offers a solid basis for resolving color disputes, enables the tracing of quality fluctuations, and facilitates customer audits and industry certifications.

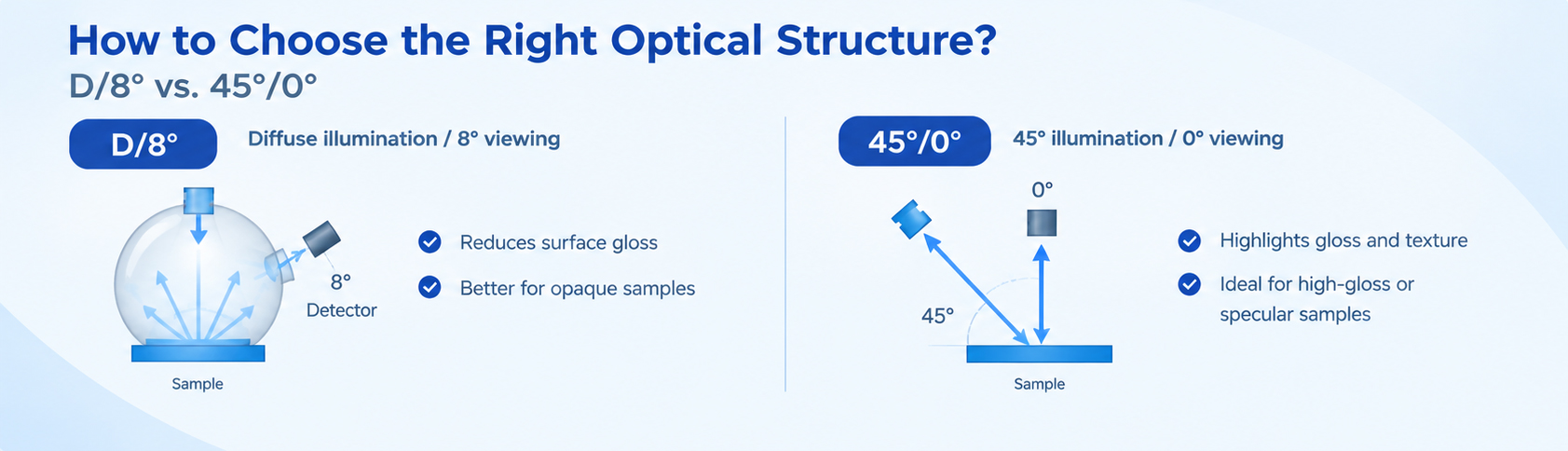

How to Choose the Optical Configuration for a Color Spectrophotometer? — D/8° vs. 45°/0°

When you decide to purchase a color spectrophotometer, you’ll face a common question: the illumination-observation geometry. Currently, the two mainstream options are the D/8° integrating sphere and the 45°/0° annular illumination. Each excels in specific applications, and choosing the wrong one can lead to completely different results for the same sample.

D/8° Integrating Sphere Configuration

D/8° refers to diffuse illumination with an 8° reception angle; light from the source is uniformly reflected onto the sample after multiple reflections inside the integrating sphere. Its core advantage lies in its insensitivity to surface gloss and texture, enabling stable measurements of glossy, matte, rough, and textured samples (such as textiles, plastic pellets, and carpets).

The D/8° configuration typically supports switching between two modes: SCI (including specular reflection) and SCE (excluding specular reflection):

1. SCI mode includes specular reflection and reflects the object’s “true color essence.” It is unaffected by surface gloss—making it suitable for objective comparisons and formulation development;

2. SCE mode excludes specular reflection and more closely matches the human eye’s intuitive perception—making it suitable for appearance evaluation and visual inspection of finished products.

For this reason, the D/8° configuration is widely used in the vast majority of industries, including coatings, plastics, textiles, printing, and cosmetics, and is the preferred general-purpose configuration for laboratories and quality control.

45°/0° Ring Illumination Configuration

45°/0° refers to 45° ring illumination and vertical (0°) observation. It deliberately eliminates specular reflection and simulates the human eye’s color perception under natural viewing conditions. For highly glossy, specular surfaces (such as automotive paint and metal coatings), this configuration yields measurement results that more closely match actual visual perception. It is commonly used for acceptance testing and appearance quality control in these industries.

However, the 45°/0° configuration is quite sensitive to the condition of the sample surface. Variations in the sample’s gloss and flatness can directly affect the readings. Therefore, it requires a higher degree of consistency in both the environment and the operating procedures.

How to Choose Between D/8° and 45°/0°?

Recommendation: If your samples are diverse and have complex surface conditions, prioritize the D/8° integrating sphere; if you primarily test high-gloss coatings and seek results that closely match human visual perception, consider the 45°/0° option. Most general-purpose benchtop laboratory instruments come standard with the D/8° configuration, which is also the best choice for beginners.

How to Choose a Color Spectrophotometer

Regardless of brand or model, whether a quality benchtop colorimeter is “worth the price” ultimately comes down to its specifications. The following six key specifications are central to the purchasing decision, and each corresponds to clear evaluation criteria.

1. Measurement Geometry: D/8° or 45°/0°

2. Wavelength Range: Typically 400–700 nm, covering the visible light spectrum and meeting most needs. When dealing with fluorescence, UV-sensitive materials, or special pigments, the range should be extended to 360–780 nm to capture information in the UV region.

3. Wavelength Resolution: The higher the resolution, the more accurately narrow-band absorption and fluorescence peaks can be identified.

4. Repeatability: The consistency of data obtained from multiple measurements of the same sample using a single instrument. The lower the value, the greater the stability; professional-grade benchtop instruments typically have a repeatability of ≤ 0.03, while entry-level models can reach ≤ 0.01.

5. Measurement Aperture: This refers to the light-collecting aperture, with common sizes including 4 mm, 8 mm, 15 mm, and 25 mm. A larger aperture provides better measurement uniformity and is suitable for samples with poor surface color uniformity; a smaller aperture allows for better focusing on minute areas and is suitable for small regions and fine textures.

What are the most important best practices for using a spectrophotometer?

To obtain reliable color measurement results:

Maintain stable environmental conditions.

Protect and regularly clean calibration standards.

Calibrate frequently throughout the day.

Maintain consistency in sample preparation and placement.

Take multiple measurements when sample surfaces are textured or uneven.

Verify consistency across instruments.

Perform daily maintenance and performance checks.

Standardize measurement procedures across different locations and operators.

Together, these practices help improve color accuracy, quality control, auditability, and digital color communication throughout the product lifecycle.

How to Calibrate a Color Spectrophotometer

A spectrophotometer is a precision instrument. Over time, normal use, contamination, component wear, or changes in optical elements can all affect its performance. Without regular inspections, minor deviations may go unnoticed until they begin to affect color assessments. Therefore, calibration is one of the most important steps in achieving accurate color measurements. Even the most advanced color spectrophotometer can only operate accurately if its calibration standards are properly maintained.

1. Place the spectrophotometer on a stable, clean tabletop and allow it to warm up. Ensure that the measurement port and calibration accessories are clean.

2. Place the certified white calibration standard close to the measurement port and start the white calibration procedure.

3. If the instrument supports black calibration, cover the measurement port with the included black light-blocking filter.

4. After calibration is complete, measure the white calibration standard again. Compare the measured value with its certified value. If the deviation exceeds the tolerance range specified by the manufacturer, clean the calibration standard and the measurement port, then repeat the process.

5. Once calibration is complete, position the sample correctly in front of the measurement port and take a measurement. For samples with texture or unevenness, take multiple measurements.

Conclusion

Treat Selecting a Model as an “Investment Decision”

Returning to the question posed at the beginning—why is a benchtop colorimeter worth the investment? The answer is clear: it’s not just a device for measuring color; it’s a quality control infrastructure that transforms human visual experience into objective data and converts subjective judgments into traceable standards.

When making your selection, keep this guiding principle in mind: First, clearly define your samples and application scenarios, then use stability parameters to narrow down your choices to professional models. There’s no need to blindly pursue the most expensive color spectrophotometer—the best investment is the one that’s right for you and effectively solves your specific challenges.
