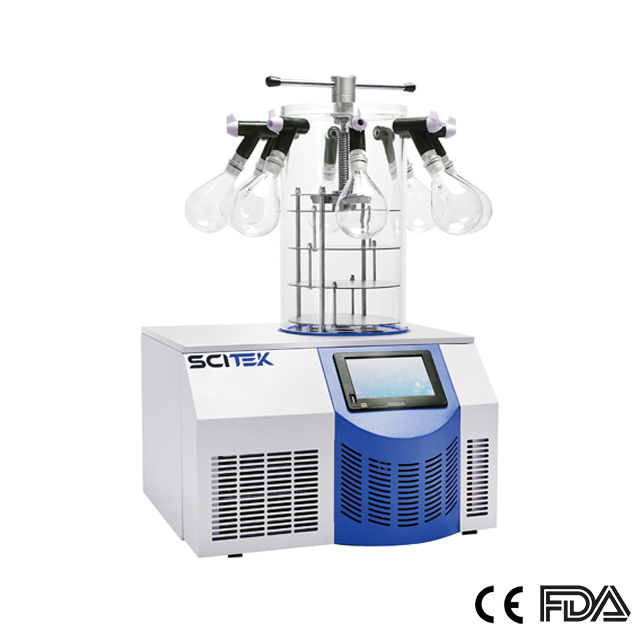

Benchtop Freeze Dryer, -60℃ Condenser Temp.

Model : FD-10S; FD-10P; FD-10T; FD-10PT

Freeze Drying Area (m2) : 0.12 / 0.12 / 0.09 / 0.09
Tray Size (ΦxH)(mm) : Φ200x20
Condenser Size (DiameterxH)(mm) : Φ215x190
Vacuum Degree (no-loading) (Pa) : ≤5
This benchtop freeze dryer is designed for lyophilising light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.
Availability:

Benchtop Freeze Dryer Specifications:

Model FD-10S FD-10P FD-10T FD-10PT
Type Standard
chamber		 Standard
chamber with
8 port manifold		 Stoppering
chamber		 Stoppering
chamber with
8 port manifold
Freeze Drying Area (m2) 0.12 0.09
Tray (Qty) 4/6(Optional)pcs 3pcs
Tray Size (ΦxH)(mm) Φ200x20 Φ200x20
Height Between Trays (mm) 76/50 70(average)
Condenser Temperature (℃) -60 -60 -60 -60
Condenser Capacity (L) 6.5 6.5 6.5 6.5
Condenser Size (DiameterxH)(mm) Φ215x190 Φ215x190 Φ215x190 Φ215x190
Vacuum Degree (No-loading) (Pa) ≤5 ≤5 ≤5 ≤5
Ice Condensing Capacity (kg/24h) 3 3 3 3
Loading Capacity/ Shelf (mL) 300 300 300 300
Total Loading Capacity (mL) 1200 1200 900 900
Drying Chamber Size (Standard) Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22 260 195
Total Qty. of Vial Φ16 480 360
Total Qty. of Vial Φ12 920 690
Refrigerant Type CFC-free
Standard Accessories

Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes)

Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs (only for model 1P/PT)
Optional Function & Accessories Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
800mL wide-mouth flask (only for model 1P/PT)
Consumption 0.85kW
Electricity AC220V, 50Hz(standard), other electricity type can be customized
External Size (WxDxH)(mm) 600x540x374/820 600x540x374/880
Shipping Size
(WxDxH)		 Main Body 670x700x560mm
Drying Chamber 410x410x640mm
Vacuum Pump 220x580x370mm
Gross Weight 110kg

Optional:

  1. Optional for gas interface: It can inject inert gas.

  2. Optional for condenser electrical heating defrost function.

  3. Optional for rack heating which is help to test in production.

Benchtop Freeze Dryer Features:

  1. 7 inches colorful touch panel can display the product sample's temperature, condenser temperature and vacuum etc in digital and curve.

  2. Touch panel with the design conforms to ergonomics and operate more comfortably.

  3. Compact bench-top design with a small footprint.

  4. USB data export for convenient user information management

  5. Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.


Reliability：

  1. High performance compressor, cascade system,high cooling efficiency and fast cooling speed.

  2. Condenser and operation panel are made by stainless steel.

  3. Drying chamber is transparent which is visual and safe.

Benchtop Freeze Dryer Construction:

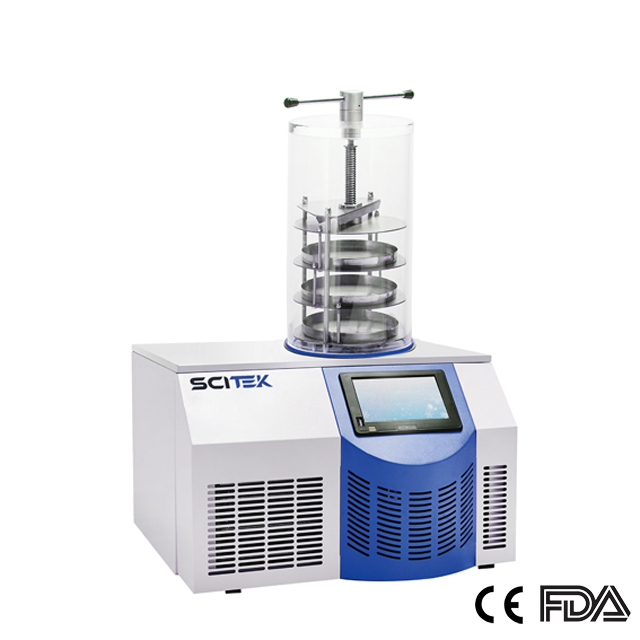

Stopper chamber

 Stopper chamber

Standard stopper with 8 port manifolds

Standard stopper with 8 port manifolds

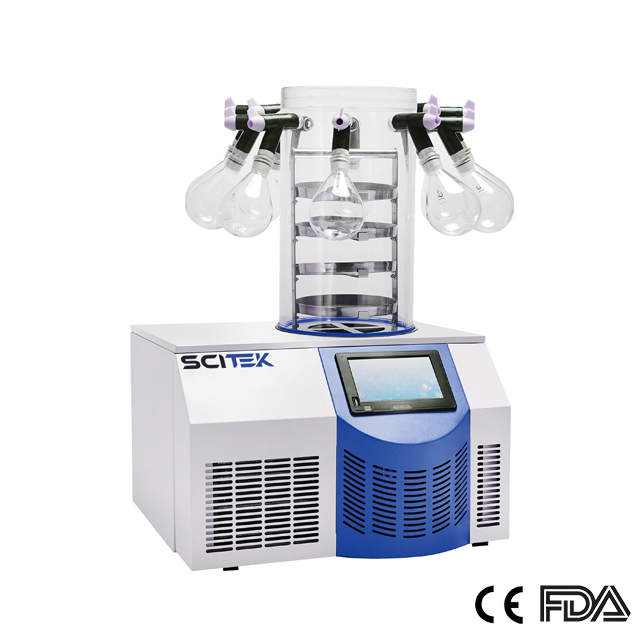

Standard chamber with 8 manifolds

Standard chamber with 8 manifolds

Standard

chamber

Standard Chamber

Stainless steel with 8 port manifolds

Stainless steel with 8 port manifolds

Valve and freeze drying bottle

   Valve and freeze drying bottle

Lsolation valve

Isolation valve

24 EA drying shelf

24 EA drying shelf

Stainless steel drying chamber

    Stainless steel drying chamber

Details of Benchtop Freeze Dryer:

Benchtop Freeze Dryer

Benchtop Freeze Dryer

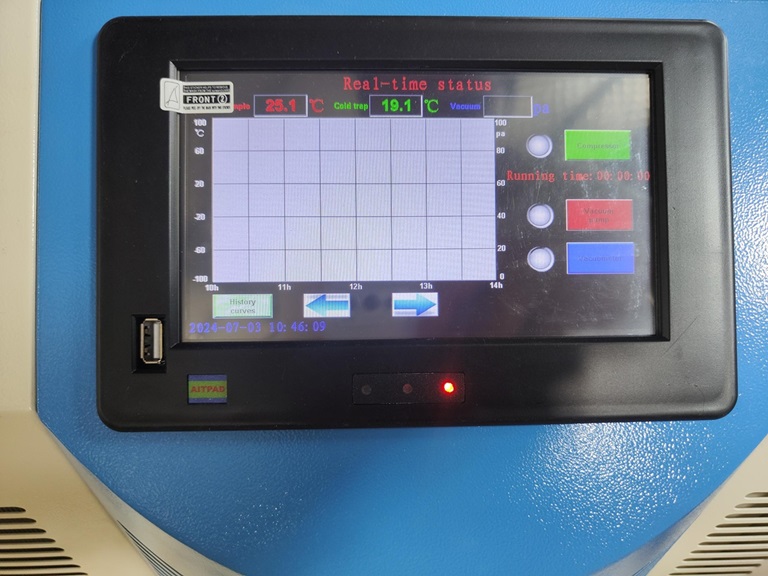

fd-10pt

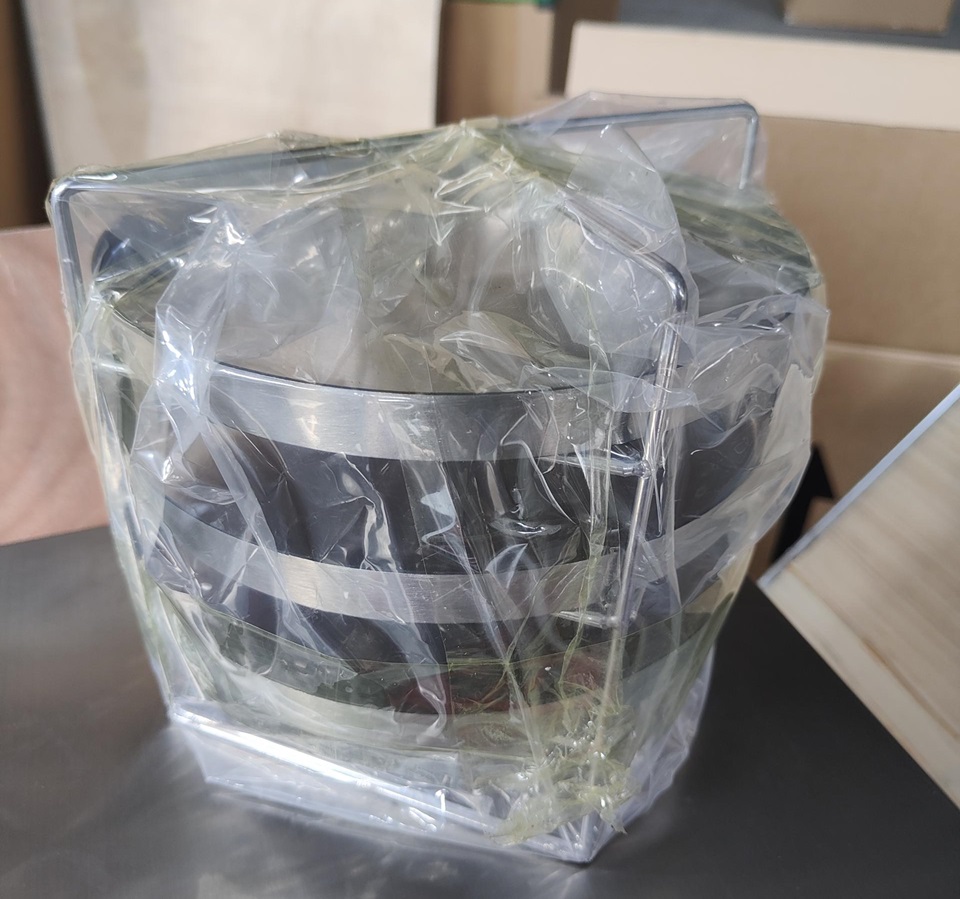

FD-10PT-1

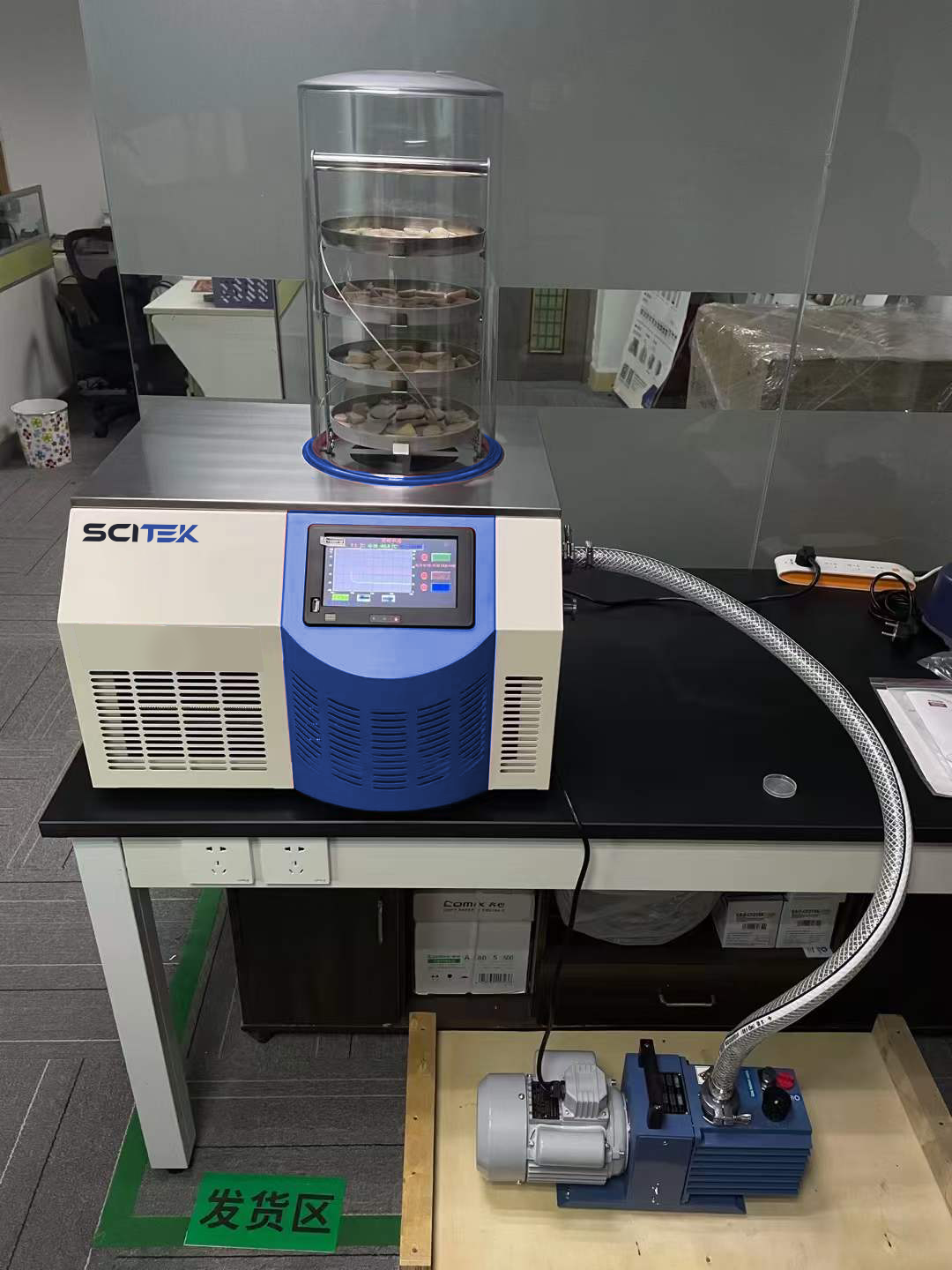

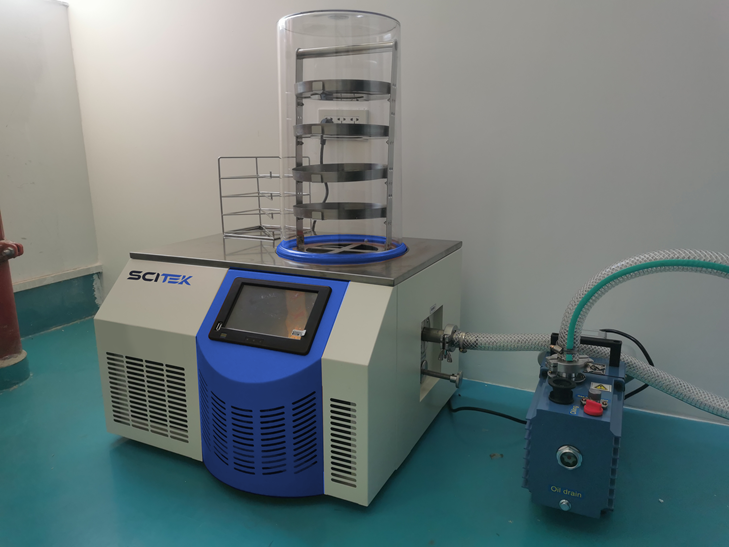

FD-10S benchtop freeze dryer features a compact design that is suitable for placement on a laboratory benchtop. A clear control panel allows the user to set and monitor the parameters of the drying process.

Application of Benchtop Freeze Dryer:

  1. Biological sample preservation

  2. Pharmaceutical production

  3. Food preservation

  4. Diagnostic reagent manufacturing

  5. Herbal medicine and natural product extraction

  6. Archaeological and forensic sample analysis

  7. Materials research
