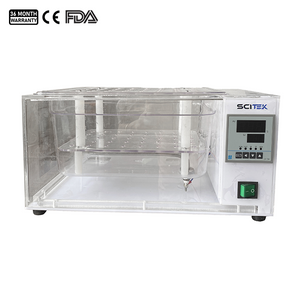

Transparent water bath is made of transparent polycarbonate material, easy to use, and widely used in applications such as sample temperature control, analysis, material testing, and food inspection. It has high temperature stability and features over-temperature protection and low liquid level protection functions. Powerful pressure pumps and circulation pumps ensure uniform temperature inside the bath, optimize external circulation, and can also use a pump combiner (accessory) to control the external circulation temperature. The provided product accessories include test glass inserts, adjustable platforms, bath covers, hoses, heat transfer oil, and various adapters.
Transparent Water Bath Specifications:
| Model | TWB-16 |
|---|
| Constant Temperature Mode | Circulating convection transfer |
| Temperature Range(℃) | RT+5~100℃ |
| Display Resolution(℃) | 0.1℃ |
| Temperature Control Accuracy(℃) | ±0.1℃ |
| Temperature Stability(at 37℃) | ±0.2℃ |
| Temperature Control | PID |
| Temperature Setting | Touch button |
| Temperature Display | LED display |
| Heating Method | O-type heater |
| Liquid Storage Capacity | 16L |
| Maximum Flow Rate | 14L/min |
| Maximum Range Value | 12M |
| Opening Size(W×D×H)(mm) | 250x250x150 |
| Bath Size(W×D×H)(mm) | 420x260x150 |
| Overall Size(W×D×H)(mm) | 440x300x350 |
| Shipping Size(W×D×H)(mm) | 520x380x400 |
| N.W./G.W. (kg) | 11/15 |
Transparent Water Bath Features:
PID intelligent system ensures efficient heating and stable equipment operation.
The internal circulation system ensures uniform and constant temperature.
Large-screen digital display shows temperature measurement values and set temperatures, providing high accuracy and convenient operation.
Desktop structure features a small overall size.
Transparent water bath has three transparent sides, allowing observation of the color, flow, and chemical reaction status of the medium inside the bath.
The high-precision constant temperature oil bath is suitable for electronic testing, chemical reactions, high-temperature distillation, and the semiconductor industry.
