ST-PV24B/ST-PV45B is a pre-vacuum pressure steam sterilizer that fully complies with CSSD and GMP specifications. The pre-vacuum sterilizer uses vacuum to form a negative pressure in the sterilization cabinet and extracts cold air so that the saturated steam can quickly penetrate inside the items for sterilization.
Pre-vacuum Pressure Steam Sterilizer Features:
Complies with european Class B standard for effective sterilisation. Ensures thorough and effective sterilisation.
ST-PV24B and ST-PV45B prevacuum sterilizers are equipped with automatic doors for seamless operation.
The pre-vacuum pressure steam sterilizer is equipped with advanced microprocessor control for precise and reliable performance.
Automatic water filling, automatic hydration to minimise manual intervention.
LCD touch screen, graphical and digital display of all the operating status of each function, such as heating, pressure relief, exhaust, power off.
Drying function.
Standard accessory: USB Port, Thermal Printer.
Safety protection
Automatic fault diagnosis
Automatic over-temperature protection
Over-pressure protection
Pre-vacuum Pressure Steam Sterilizer Specifications:
| Model | ST-PV24B | ST-PV45B |
| Capacity | 23L | 45L |
| Chamber Size | Φ246x450mm | Φ320x620mm |
| External Sizes (WxDxH)(mm) | 715x513x425 | 900x565x600 |
| Working Temperature | 5C-40C |
| Sterilization Temperature | 134℃/121℃ |
| Sterilization Pressure | 0.25Mpa |
| Chamber Material | 304 corrosion-resistant stainless steel material |
| Strilization Mode | Exposed instruments, Packaged instruments, Fabric hollow, Rubber products, BD testing, Vacuum testing |
| Drying Mode | Powerful vacuum drying, suitable for drying diferent items: residual moisture in equipment <0.2%, residual moisture in dressings <1%. |
| Display | LCD touch screen |
| Capacty for Water Tank | 2L | 6L |
| Water Consumption | 0.5-1L | 0.8-1.5L |
| Displacement | 0.5-1L | 0.8-1.5L |
| Consumption | 1.7KW | 3.5KW |
| Power Supply | 220V 50Hz |
| Gross Weight | 49KG | 108KG |
| Shipping Size (WxDxH)(mm) | 830x600x530 | 1050x700x800 |

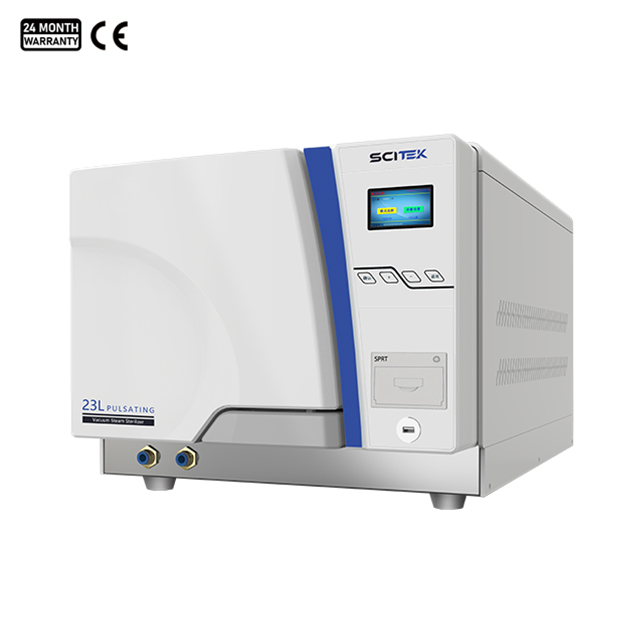

Details of prevacuum sterilizer (ST-PV24B):
This compact and powerful steriliser is designed to meet the stringent sterilisation requirements of medical and laboratory environments. Pre-vacuum technology ensures that air is completely removed from the chamber and even the most complex instrument surfaces are efficiently sterilised by steam.
Pre-vacuum Pressure Steam Sterilizer Applications:
Pre-vacuum pressure steam sterilizer is suitable for medical dressings, biological products, instruments and vessels, sterile clothing, waste, moisture and heat-resistant instruments or items with high sterilization requirements, as well as dentistry, ophthalmology, operating rooms, supply rooms, dialysis Sterilization of packaged or unpackaged solid instruments, Class A cavity instruments (dental handpieces, endoscopes), implantable instruments, dressing fabrics, rubber catheters and other items in medical and health departments such as rooms and delivery rooms.
