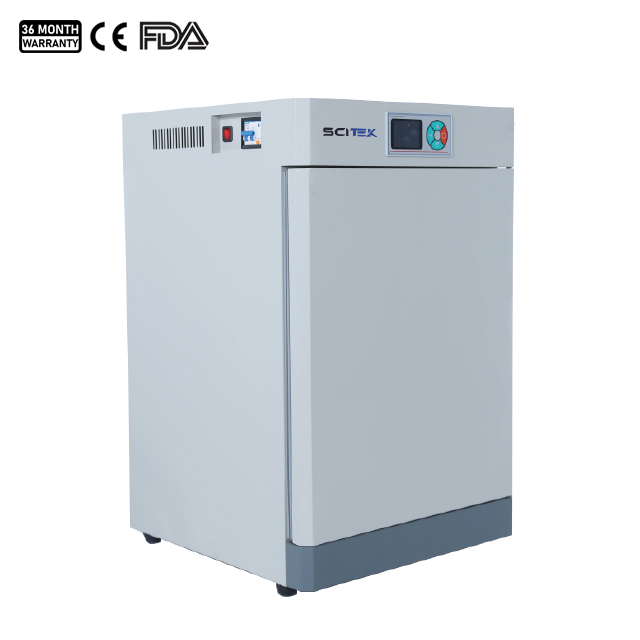

Constant Temperature Incubator ICB-82

Constant Temperature Incubator Specifications:

Constant Temperature Incubator Features:

Usage Overview

It is an essential equipment for colleges, universities, biology, agriculture, scientific research departments, etc. to store bacteria, culture organisms, culture viruses at 37℃, and conduct other scientific research.

Energy-saving design

1. The box sealing ring adopts a new synthetic silicone sealing strip, which has a better sealing effect and effectively prevents heat loss. Compared with traditional equipment, it saves 25% energy and has higher heating efficiency.

2. Automatically adjust control parameters according to ambient temperature and load size to achieve the optimal heating method and reduce energy consumption

Intelligent LCD screen control

1. Large LCD display, real-time display of parameters, simple and convenient operation

2. Menu-based operation interface, simple and convenient operation, quick setting of temperature and time parameters

3. Operation function: fixed value operation, timed operation, when the operation time is completed, the screen displays "END" accompanied by a buzzer reminder

4. Optional program control instrument, up to 30 program sections can be set to control temperature and time, each section setting time 1-99 hours 59 minutes

Internal circulatory system

1. The fan uses high-temperature resistant high-quality fans and large impeller fans, which have higher ventilation efficiency and better temperature uniformity.

2. The circulation system adopts back suction and bottom vertical air supply

3. Better ventilation and better temperature uniformity

Special sheet metal processing

1. The box body is formed by laser cutting in one step, the outer box body is made of high-quality cold-rolled steel plate with anti-static spraying on the surface, and the inner tank is made of high-quality brushed stainless steel

2. The partition is made of high-quality stainless steel without welding points, and a load-bearing beam is added at the bottom of the partition to increase the load-bearing capacity.

3. The partition is removable and can be adjusted up and down freely, with a minimum spacing of 30mm

4. The partition has a slide bayonet design to prevent the partition from tilting and misalignment

5. Large arc angle design, no dead angle, easy to clean and maintain

6. Brushed stainless steel, strong corrosion resistance

7. Tempered, double-layer glass observation window, observe the objects in the studio clearly

Humanized design

1. Chinese and English menus are available to meet different language requirements

2. ℃/℉ temperature conversion is possible

3. Can be stacked to save laboratory space

4. Three-sided heat radiation heating method, small overshoot of temperature inside the box, more uniform temperature

Security Features

1. The equipment is equipped with leakage protection device to ensure the safety of operators and other equipment operation

2. The insulation material is made of high-quality aluminum silicate spun silk cotton, and the box insulation layer is thickened to ensure that the box surface temperature is low and the operation is safer

3. The system has a temperature-limited control sound and light alarm system. When the temperature exceeds the limit, the heating stops working. When the alarm temperature exceeds the alarm, the sound and light alarm automatically

4. Self-diagnosis function: When the device fails, the display will show the fault information, which is convenient for judging the fault point

5. High or low temperature and over-temperature alarm can be set

Optional parts

Intelligent touch screen with program setting and data storage function

Independent temperature limit controller

Test hole

BOD socket

Printer or 485 interface (intelligent program controller optional)

Ultraviolet germicidal lamp

Note: Performance parameters are tested under no-load conditions, ambient temperature 25℃, ambient humidity 55%RH
