LED Blue Light Transilluminator, Slimline

Model : TI-BL470

LED Source : Bottom LED light module
LED Lifetime : >50000h
LED Wavelength : 470nm
Auto Shutdown Time : 5min

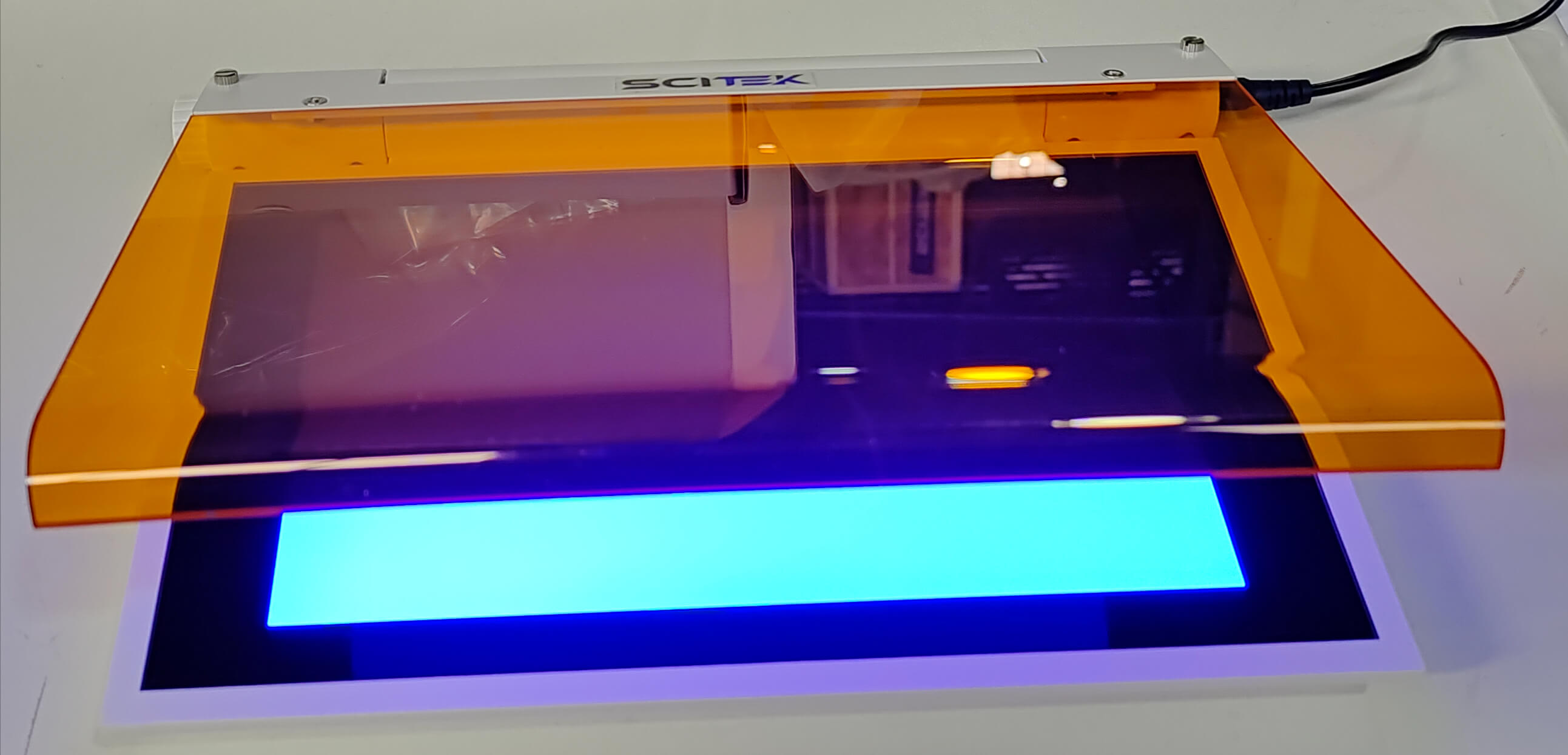

The blue light transilluminator features an innovatively designed bottom LED light module that provides uniform illumination to help accurately view samples.

Blue Light Transilluminator Specifications:

Model TI-BL470
LED source Bottom LED light module
LED lifetime >50000h
LED wavelength 470nm
Auto shutdown time 5min
Input power supply 100~240V,50/60Hz
Input current 1A
Observation area(W×L)(mm) 200×120
Sizes (W×D×H)(mm) 265×195×40
Shipping size(W×D×H)(mm) 285×390×90
N.W./G.W. (kg) 1/2

Blue Light Transilluminator Features:

The blue light transilluminator is a high-quality LED 470nm blue light transmission device, used for the observation of nucleic acid and protein gel stains without the risks of UV light. It can be used with a variety of nucleic acid-safe dyes to achieve perfectly clear bands.

Compatible fluorescent dyes include Gene Green, GelRed, GelGreen, SYBR Green, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP Cy2, FITC, EB, etc.

  1. Unique bottom light-emitting module.

  2. Blue 470nm LED light-emitting module has high brightness, long lifetime of more than 50,000 hours, and low power usage.

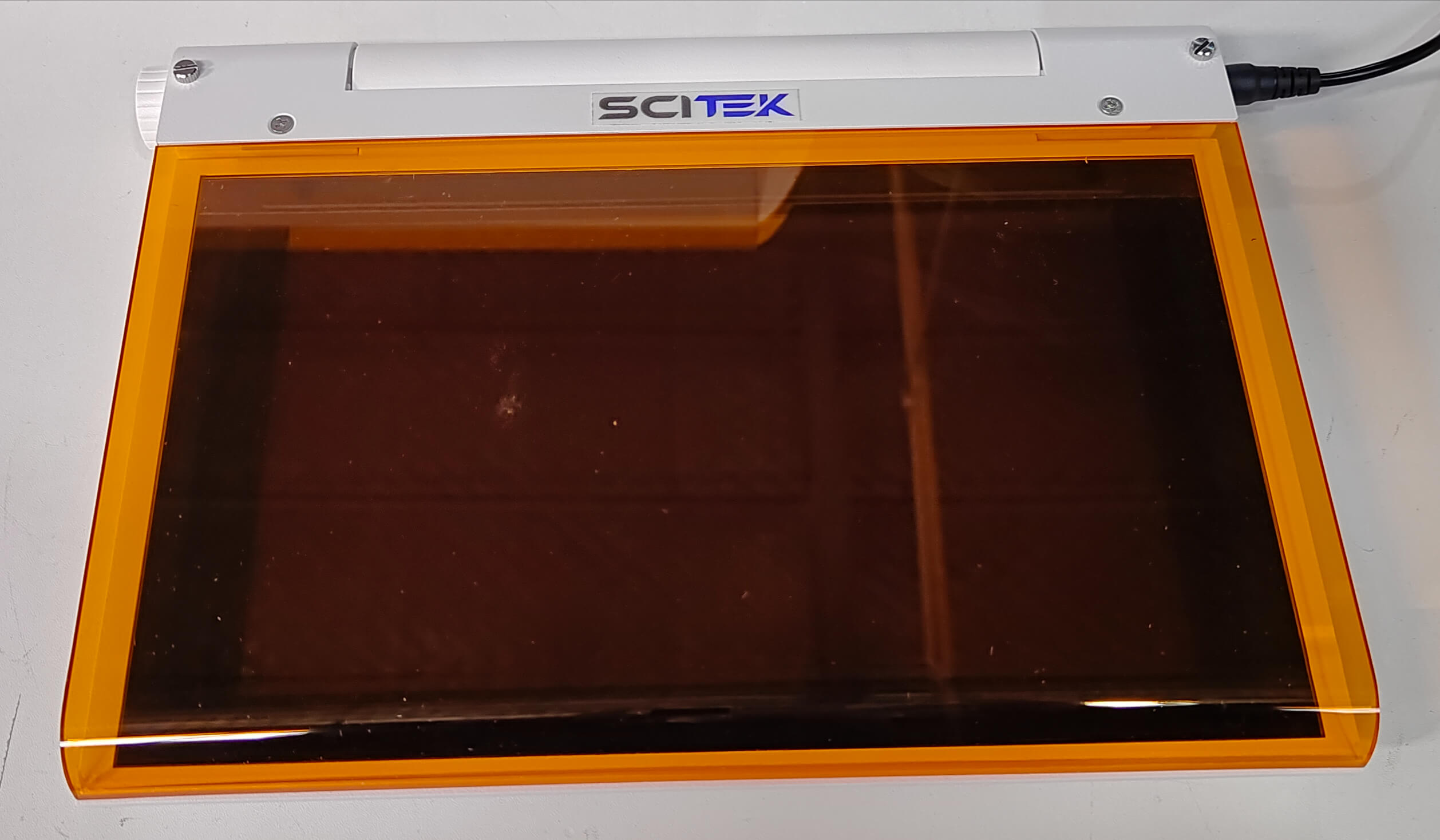

  3. Amber cover filters the intense blue light to 580nm and only lets the emission light through , allowing observation and gel-cutting without protective light filtering goggles.

  4. Creates a mini darkroom to record your results with a quick snapshot from your phone ,tablet or camera.

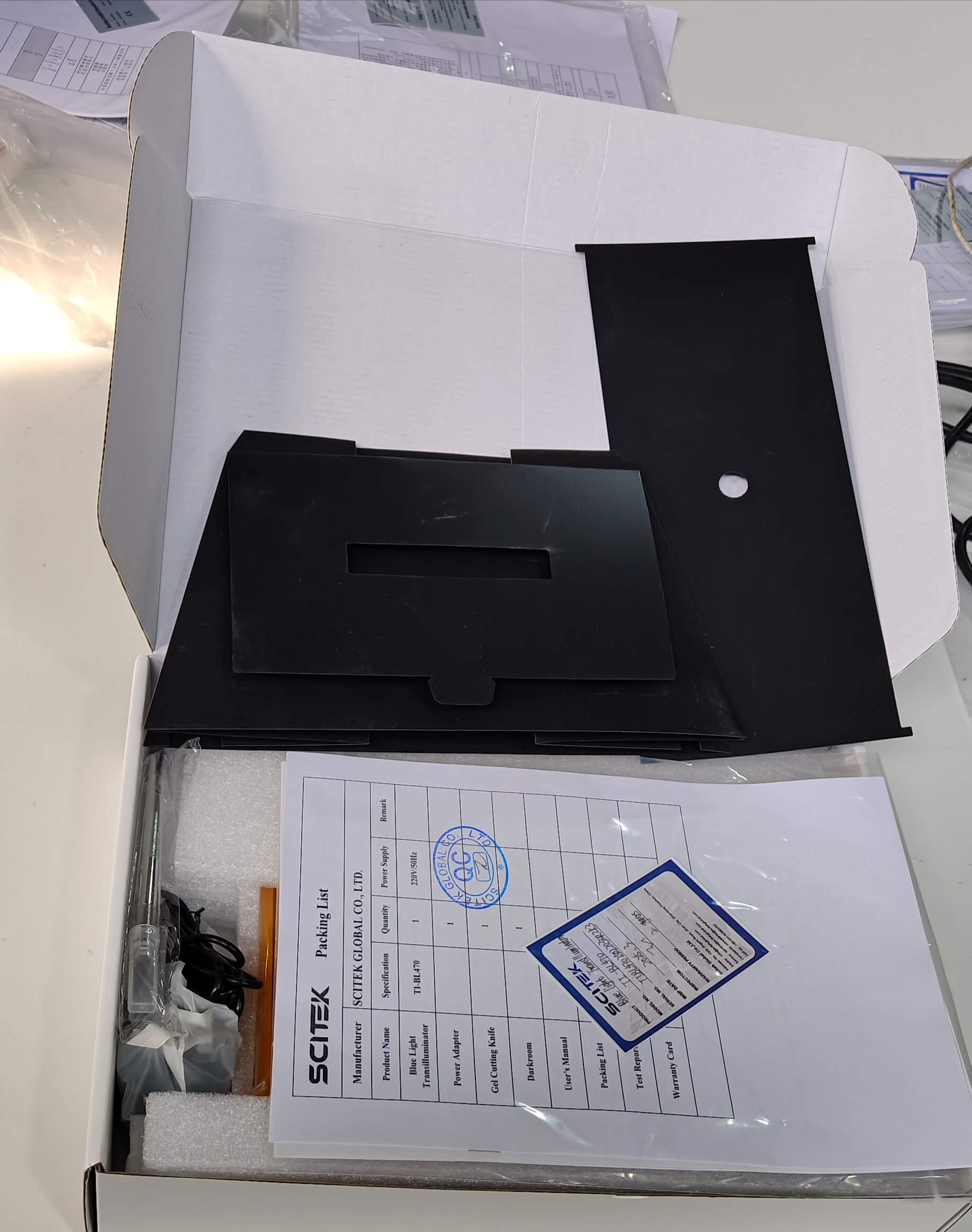

  5. Includes an exacto precision knife and an e×tra blade to precisely cut the gel band containing the sequence of interest.

Product Details

Clear green bands

Clear green bands

Cut gel bands directly on surface

Cut gel bands directly on surface

Variable light intensity

Variable light intensity

No harmful UV rays

No harmful UV rays
